Interlogix UVD-EVRDNR - Manual (Page 14)

2. To set ME, press Enter when the ME option is displayed. The ME menu appears
(Figure 12 below).

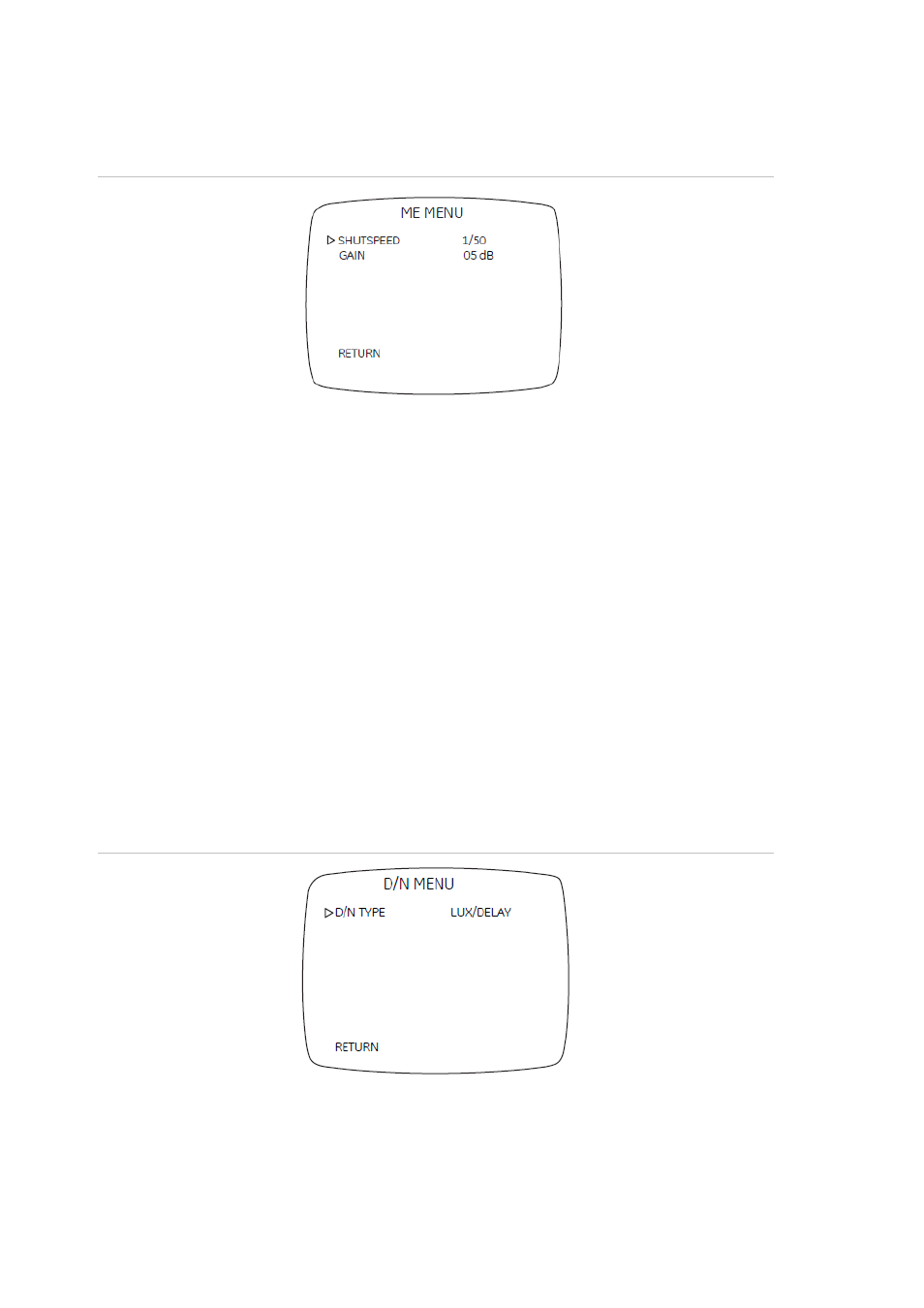

Figure 12: ME menu
3. Press Up or Down to select an item.
4. Adjust the Shutspeed to 1/50, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/5,000, or
1/10,000 sec. Select a higher value to see movement and a lower value to see
clearer images.
5. Adjust the Gain to 05, 13, 22, or 30 dB.
6. Move the cursor to select Return and press Enter to set the manual exposure and
return to the previous menu.
Day/Night control
To adjust the white balance, do the following:
1. Move the cursor on the Setup menu (Figure 6 on page 9) to D/N CNTL.
2. Press Left or Right to cycle between LUX /DELAY, SCHEDULE, DAY and NIGHT
(Figure 13 below).
Figure 13: D/N menu
3. To set Lux/Delay, press Enter when the Lux/Delay option is displayed. The
Lux/Delay menu appears (Figure 14 on page 13).
4. Move the cursor on the Lux/Delay menu to the Level position. Press Left or Right
to adjust 5 level thresholds.
12 UVD-EVRDNR(-P) Camera User Manual
