EN 10
TruVision Analog PTZ Camera
4. Press the two tabs on either side of the PTZ module and remove
the module from the camera housing.
5. Configure the communication parameters for the PTZ camera. See
“DIP switch settings” on page 11 for detailed information on the
communication parameters settings.
6. Connect the cables to the PCB of the module through the cable
entry hole on the top of the housing.

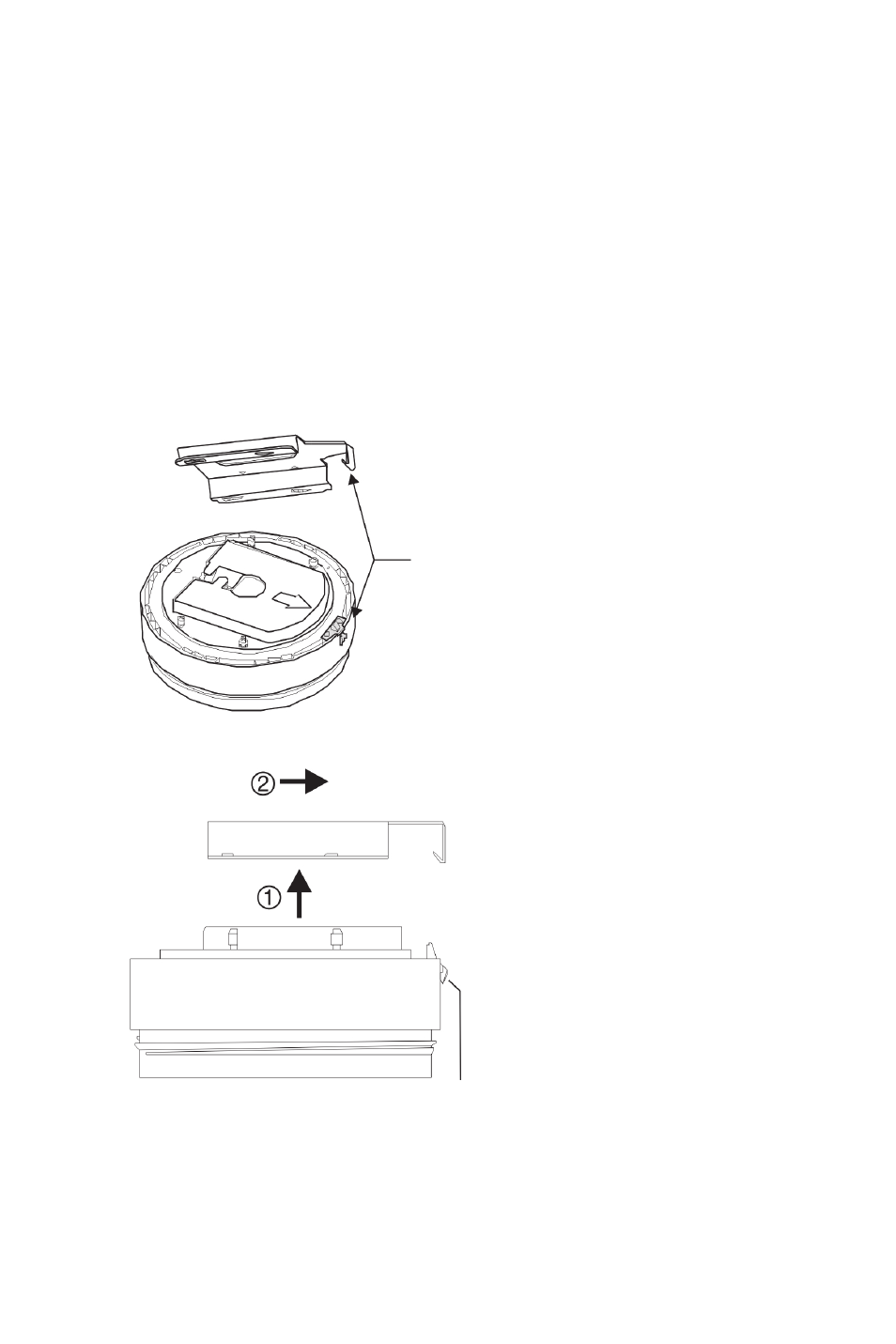

7. Attach the housing to the mounting base. Align the arrow head with
the spring end of the mounting base. Push the housing up and
then sideways in the direction of arrow. When the housing is
correctly positioned, the spring automatically snaps firmly into the
lock clip. See the figures below.
Align
Push up (1) and then push
sideways (2).
Lock clip
8. Insert the PTZ module into the housing:
