6 of 9 P/N 1069682 • REV 1.0 • ISS 14APR10
Video:
• Use the provided 2-foot (60cm) coax patch cords to connect the BNC video
inputs of video receiving devices such as DVRs or matrix switches.
• Confirm that your receiving device is terminated with a single 75-ohm
terminator.
Ground:
• Connect the ground screw connector to a qualified earth ground using a
short thick wire.

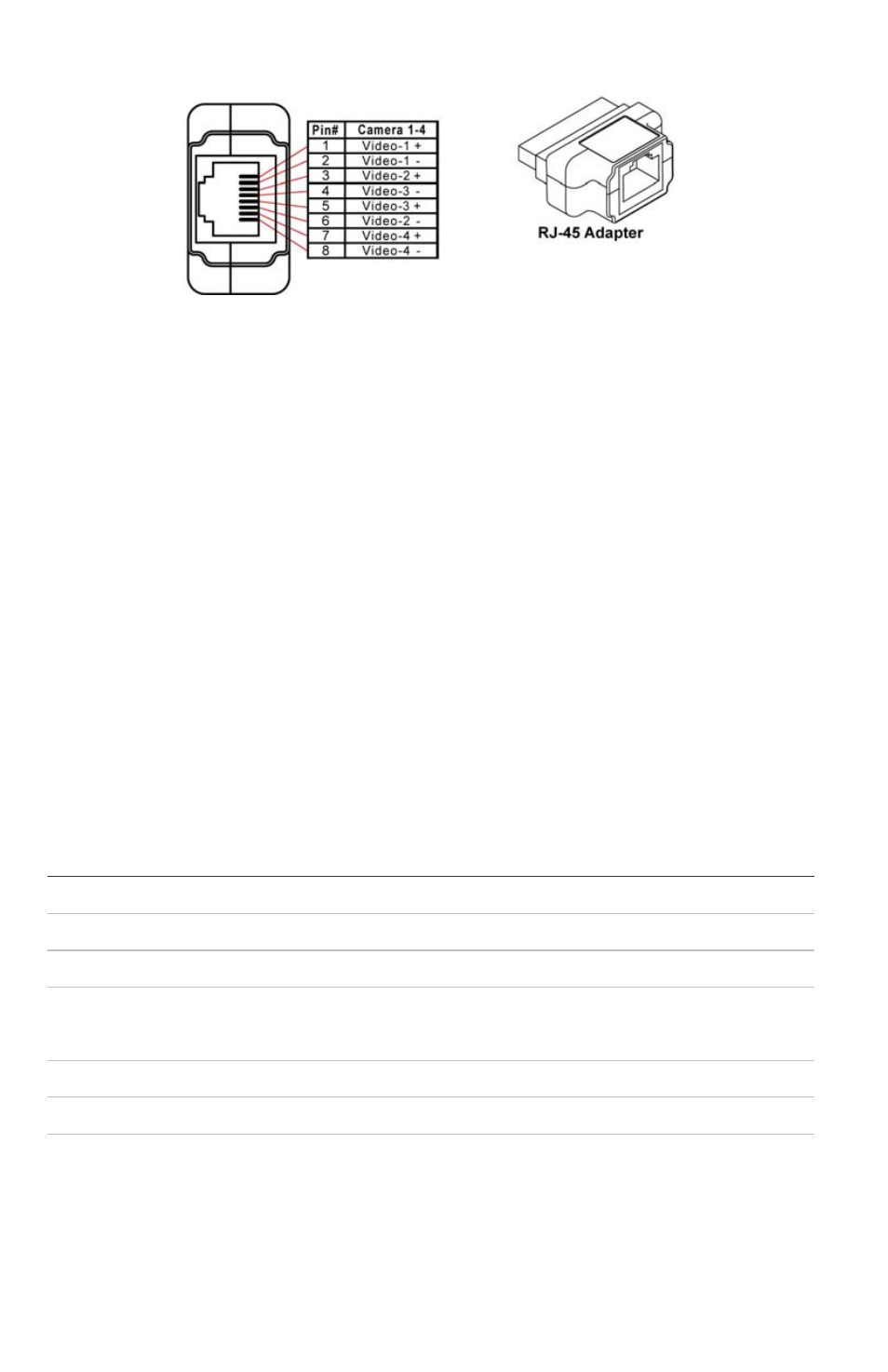

• If the picture is scrambled change the polarity of the twisted pair wires on
the corresponding terminal block.
Technical Specifications*
Electrical
Video Format NTSC, PAL, SECAM
Frequency 20 Hz to 6 MHz
Coax 75 Ohm
Input Current 2.4 A at 115 VAC / 1.2 A at 230 VAC (GEC-8PVPDTCHUB)
4.8 A at 110 VAC / 2.4 A at 220 VAC (GEC-16PVPDTCHUB)
Twisted Pair 100 Ohms +/- 20%, 24 AWG minimum, Category 2-7 up to 750 ft. (228m)
CMRR 60 dB
Power No power required
