• DO NOT connect multiple outputs together.

• Make sure that the mains Voltage input is set to the proper local voltage.

Application Drawing

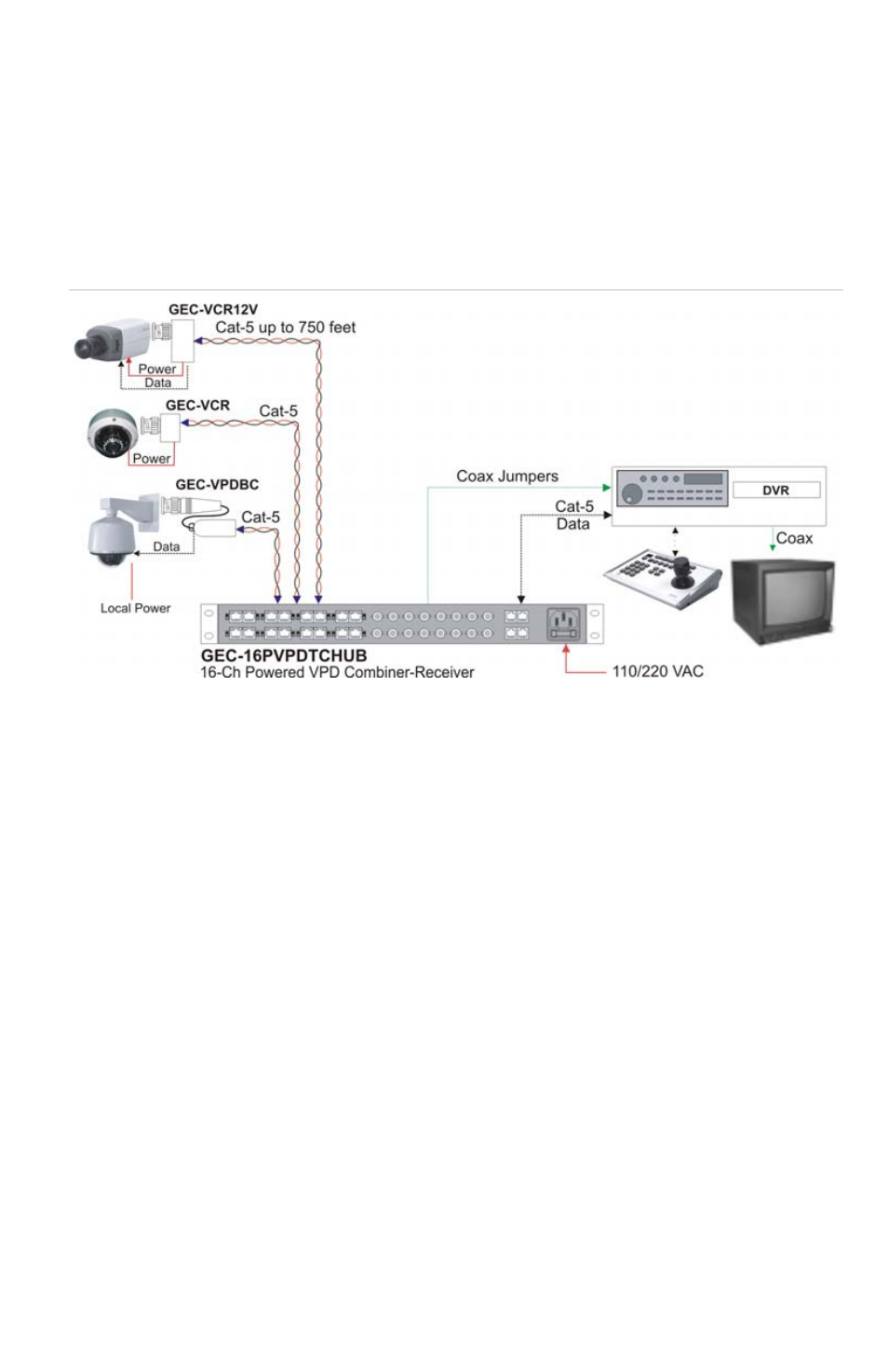

Figure 1: VPD Combiner Receiver Application diagram

Camera End Installation

Video: Connect the baseband Video signal output of the camera to the BNC of
the GE single combiner receiver.

Data: Connect the Data UTP pigtail (Black/White) of the GE single combiner
receiver to the data connector of the camera. There is no data connection on
GEC-VCR.

Power: Connect the power UTP pigtail (Black/Red) of the GE single combiner
receiver to the power connector of the camera. Leave this power cable
unconnected for PTZ dome cameras.

Cat-5 Cable: Connect the RJ-45 connector attached to the camera end of Cat-5
cable to the RJ-45 Jack of the GE single combiner receiver. Make sure that the
pin-out of the RJ-45 connector matches the pin-out of the GE single combiner
receiver.
