Interlogix VDP-ESP Series - Manual (Page 10)

10 of 11 P/N 1069686 • REV 1.0 • ISS 10MAR10

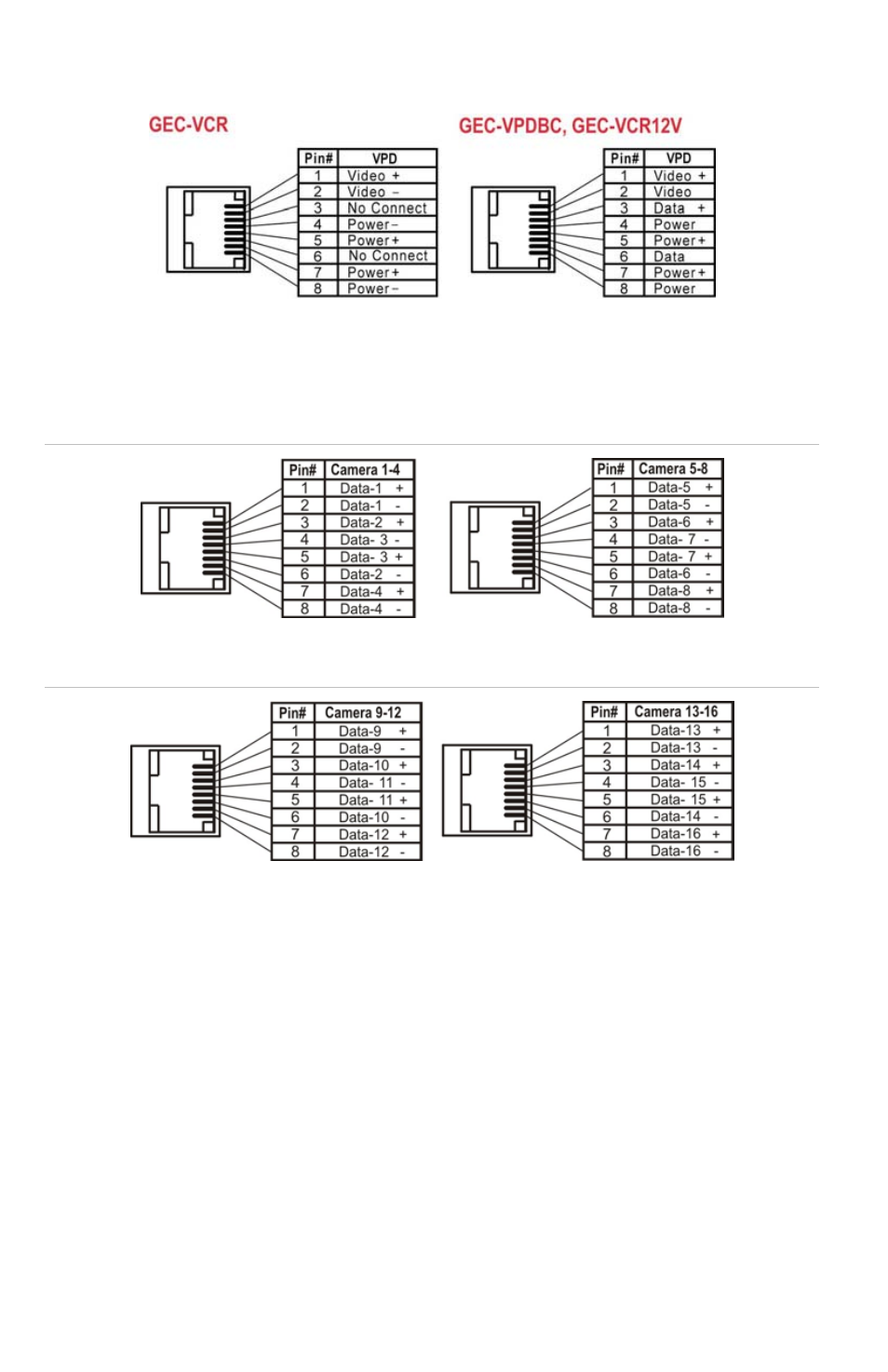

Camera side RJ-45 Connections
Control Room Data Connections
Figure 2: GEC-4VDPBC (Cameras 1-4 only) 16VDPBC 8PVPDTCHUB 16PVPDTCHUB (Cameras 1–8)
Figure 3: GEC-16VDPBC 16PVPDTCHUB (Cameras 9-16)
