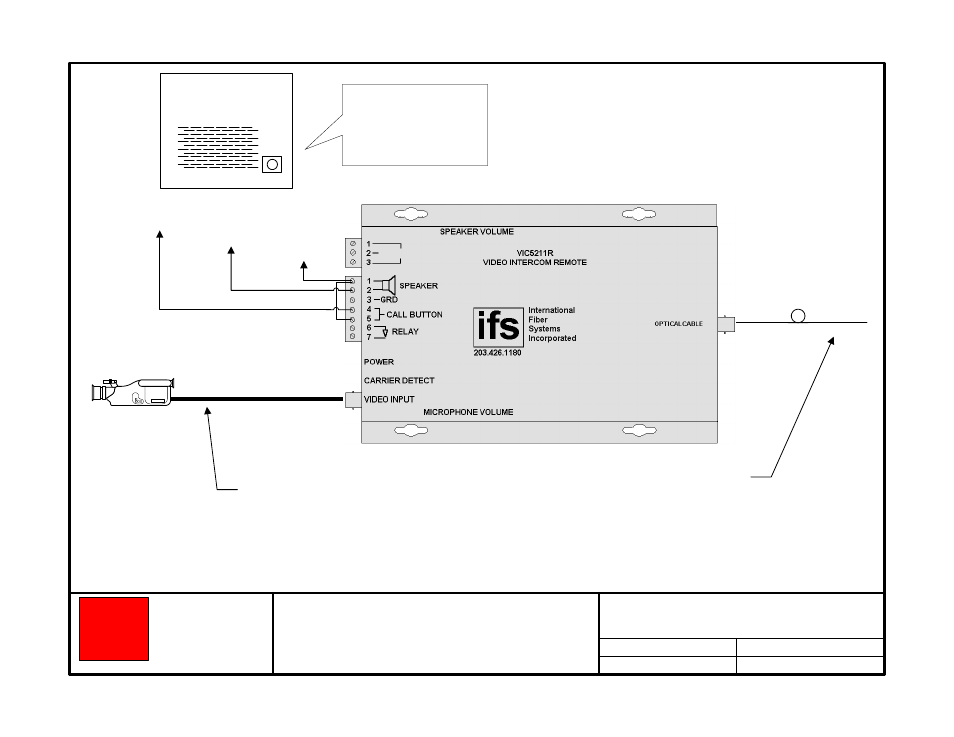

Connections between an Aiphone LE-D
series door station and an IFS VIC5211R
video intercom remote
one 62.5/ 125 µ multimode
fiber to VIC5211M
coaxial cable to camera
CCTV camera
18 VAC
to LE-D
pin "1"
to LE-D
pin "E"
to LE-D
pin "-"
Aiphone LE-D series
door station
shorting bracket
connecting "E" and "-"
must be removed
