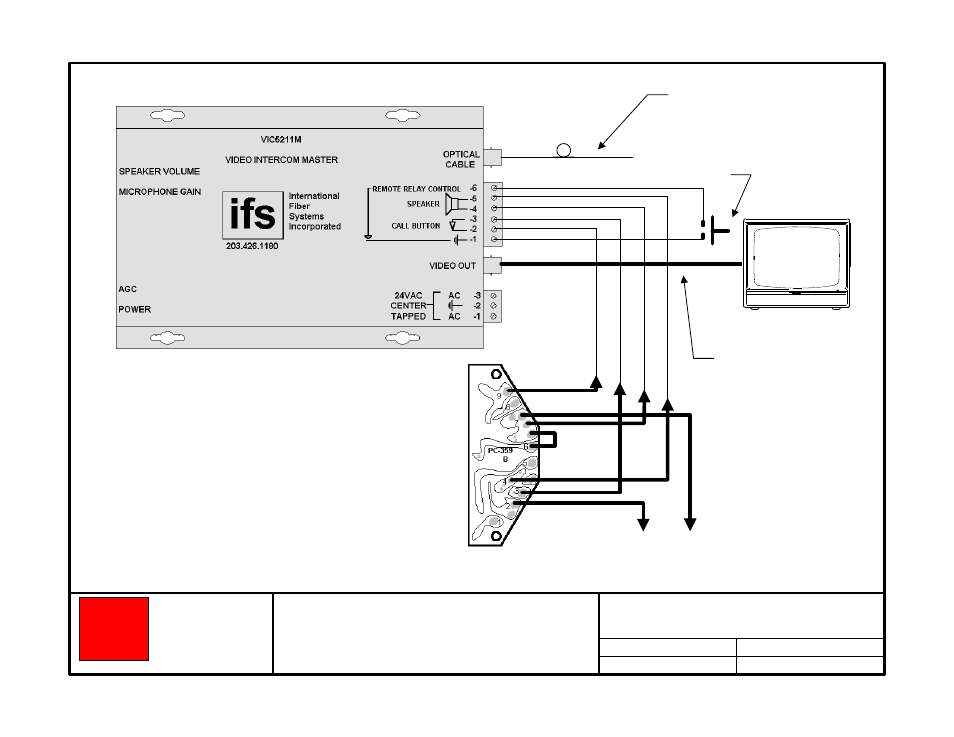

Connections between an Aiphone NEM master
station, an Aiphone PC-359B call latching board,
and an IFS VIC5211M video intercom master
to NEM master "E"
one 62.5/ 125 µ multimode
fiber to VIC5211R
coaxial cable to monitor
gate release, typ.
to NEM master 1 - 40
MONITOR
