2 Structure
2.1 Multiple-function Combination Cable

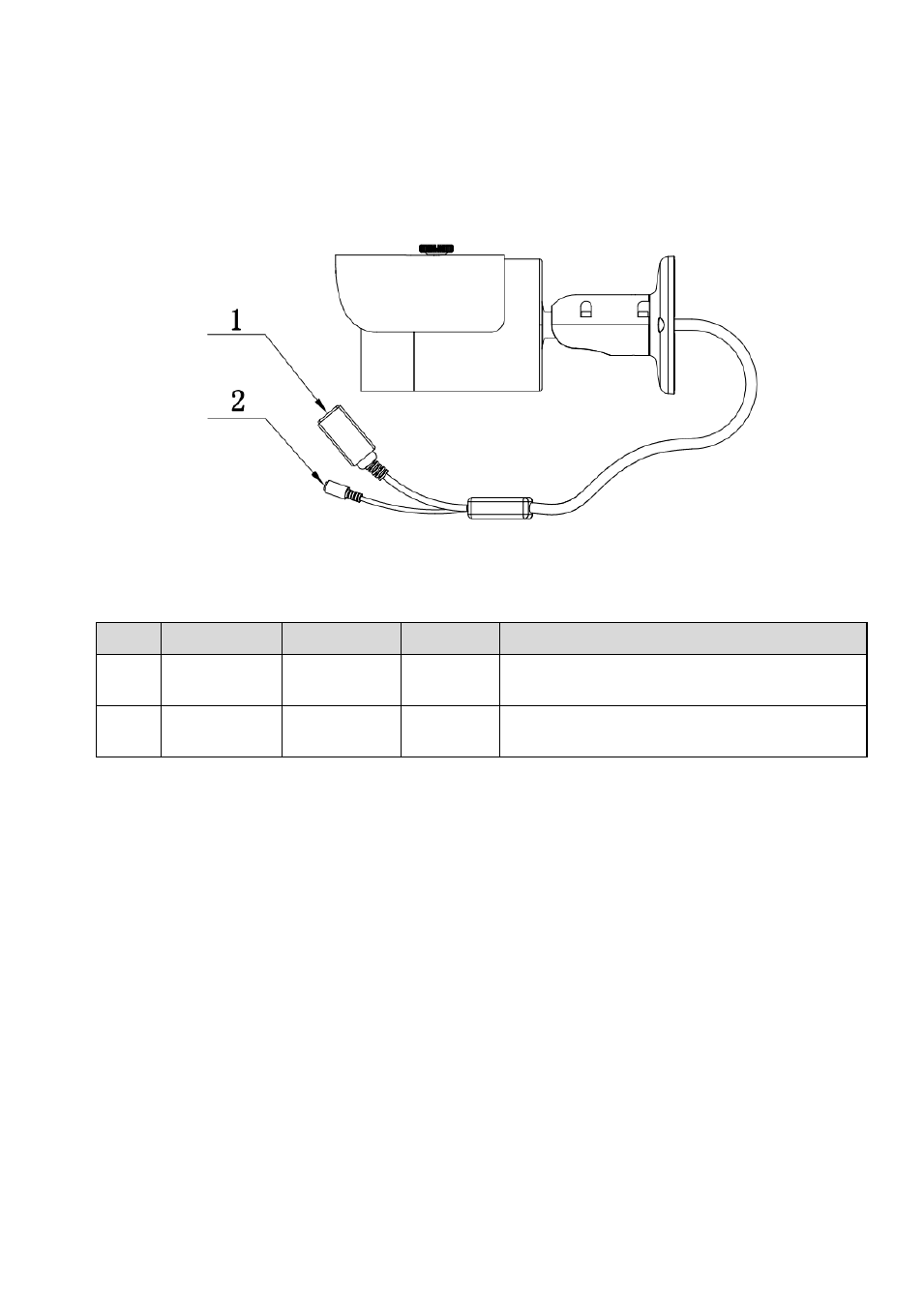

You can refer to the following figure for multiple-function combination cable information. See Figure
2-1 .
Figure 2-1 Multiple-function combination cable
Please refer to the following sheet for detailed information.
SN Port Name Function Connection Note
1. LAN Network port
Ethernet
port
Connect to standard Ethernet cable.
2 DC12V
Power input
port
/ Power input port. Input DC 12V.
2.2 Framework and Dimension
Please refer to the following two figures for dimension information. The unit is mm. See Figure 2-2 and
Figure 2-3.
