IC Realtime 1.3 MegaPixel Black Crystal Glass Apartment Outdoor Station User Manual
Page 22

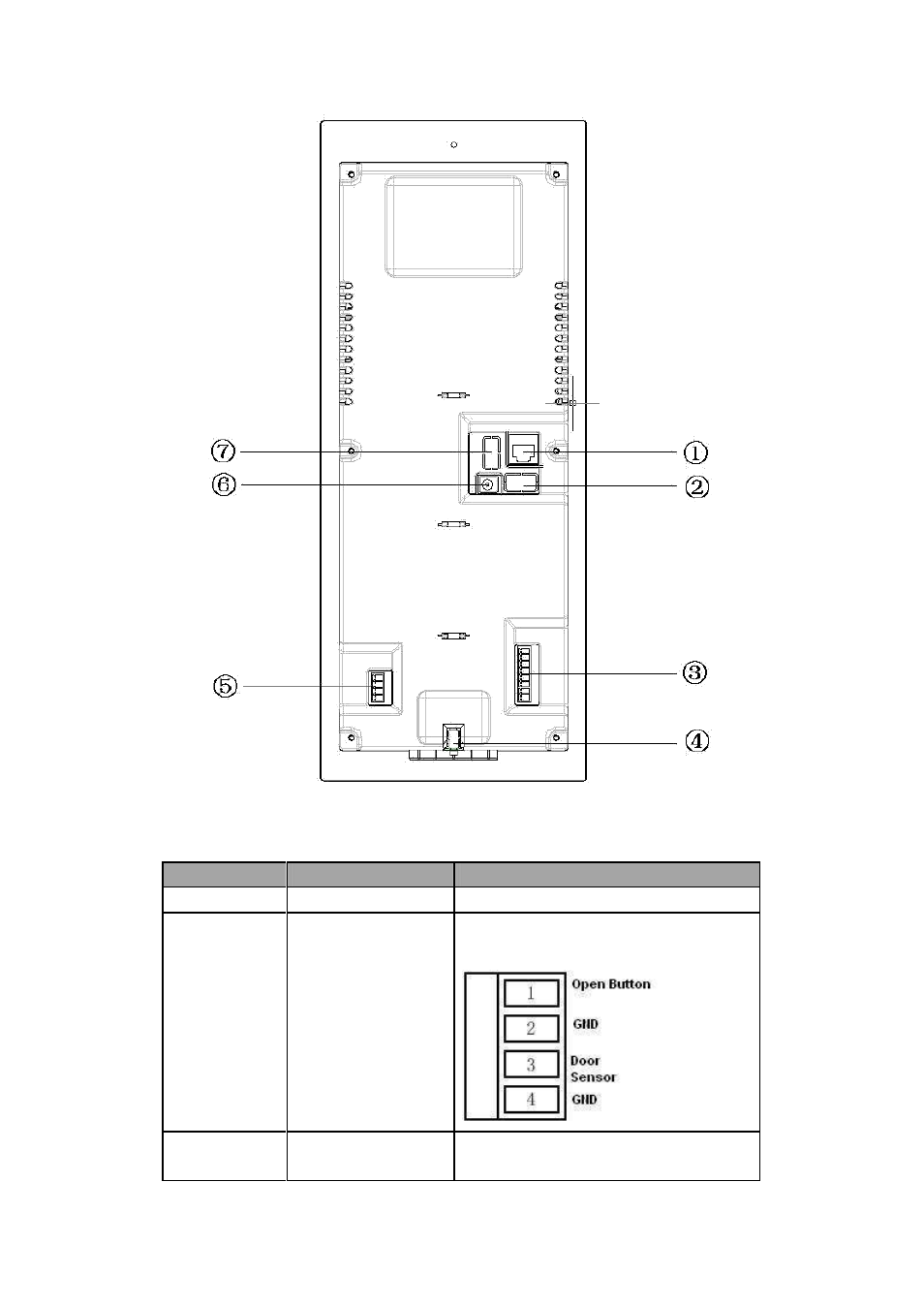

Figure 5- 1 IHX-C1201 rear structure
Please refer to the following sheet for detailed information.
SN
Port Name
Function
1
Network Port
Connect to the RJ45 port.
Connect to signal from the door sensor,
door on/off signal.
2
Access Control Input
Port
3
Analog Signal Port
Connect to the analog signal of the
(IHX-C1201 only)
distributor.
19
