3.2.3 IHD Management
IHD management mainly includes add digital/analog IHD, delete IHD and edit IHD user.
3.2.3.1 Digital IHD Management
In digital IHD management interface, check box display resident info enable to display
successfully configured IHD info as shown in Figure 3- 6. Click on add button at the left
lower corner, and input user name and IHD number. Please be notified that only IHD
number is required for operation as default.

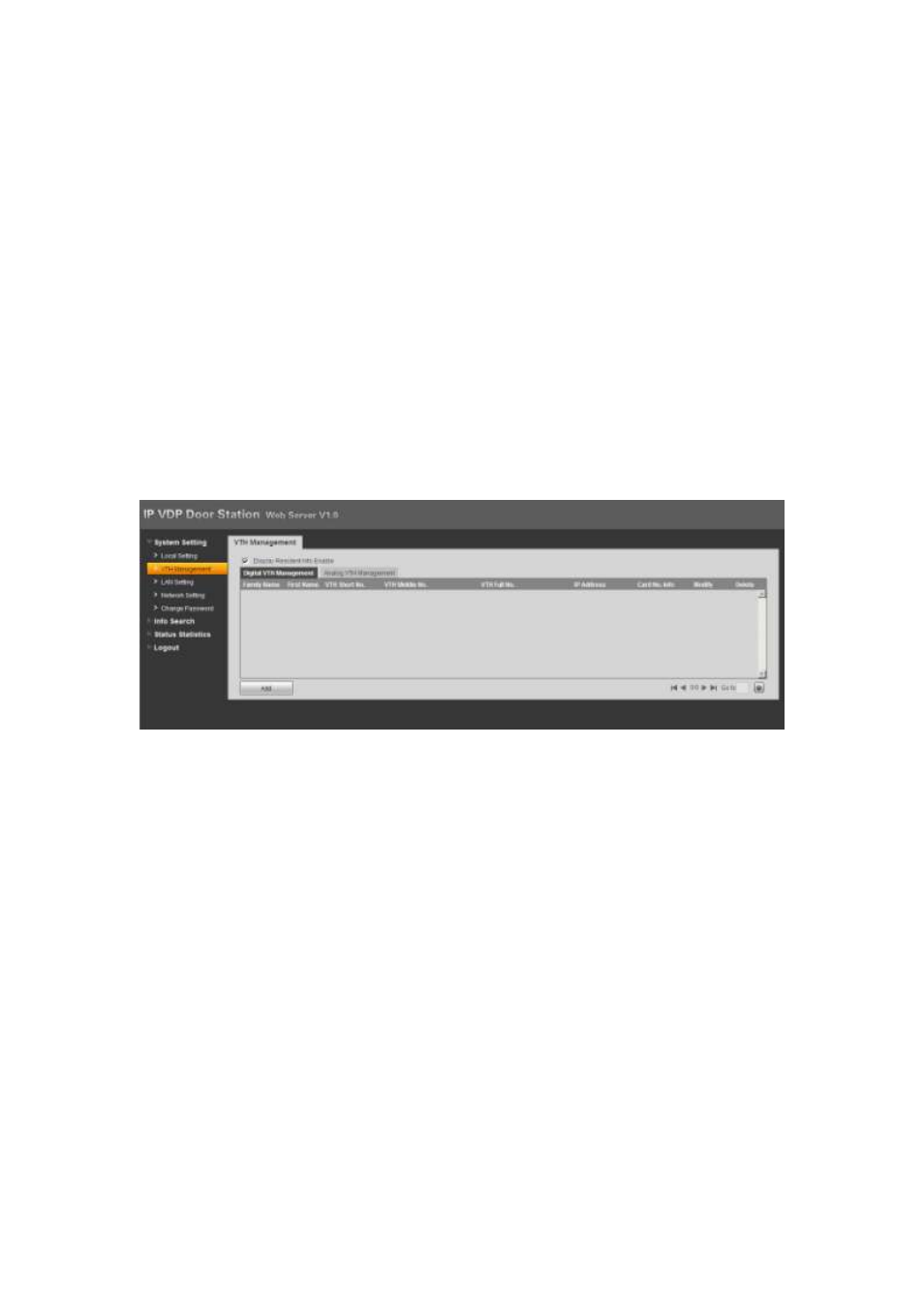

Figure 3- 6
3.2.3.2 Analog IHD Management
In analog IHD management interface, check box display resident info enable to display
successfully configured IHD info as shown in Figure 3- 7. Click on add button at the left
lower corner, and input IHD number, distributor address and distributor port. IHD number
is the room number where analog IHD locates; distributor address is its dialup IP which
ranges from 1 to 99. It originally could be manually adjusted, but now it has been burned
into program. Port is the corresponding port number in distributor which normally is either
1~4 or 1~8, depending on number of distributor channel. For example, room number is
1502, distributor address is 15, and port NO. is 2.
