354
uu Fuses u Fuse Locations
Han
d
lin
g the U
n
expected

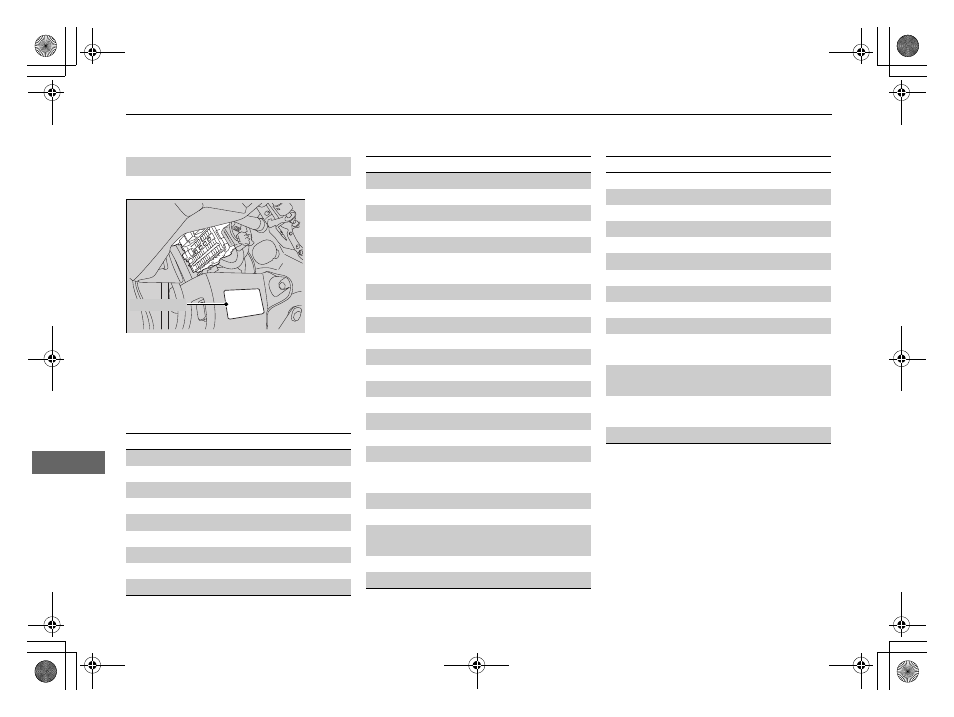

Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■ Circuit protected and fuse rating
■ Interior Fuse Box
Fuse Label
Circuit Protected Amps
1 − −
2 ACG 10 A
3 SRS 10 A
4 Fuel Pump 15 A
5 Meter 7.5 A
6 Power Window 7.5 A
7 VB SOL 15 A
8 Door Lock Motor 2 (Unlock) 15 A
9 Door Lock Motor 1 (Unlock) 15 A
10 − −
11 − −
12 − −
13 − −
14 Seat Heaters * (15 A)
15
Driver’s Door Lock Motor
(Unlock)
(10 A)
16 − −
17 − −
18 − −
19 ACC 7.5 A
20 ACC Key Lock 7.5 A
21 Daytime Running Lights 7.5 A
22 HAC 7.5 A
23 HAC (7.5 A)
24 ABS/VSA 7.5 A
25 ACC 7.5 A
26 − −
27
Accessory Power Socket
(Front)
20 A
28 − −
29 ODS 7.5 A
30
Driver’s Door Lock Motor
(Lock)
(10 A)
31 SMART 10 A
32 Door Lock Motor 2 (Lock) 15 A
Circuit Protected Amps
33 Door Lock Motor 1 (Lock) 15 A
34 Small Lights 7.5 A
35 Illumination 7.5 A
36 − −
37 − −
38 Left Headlight High Beam 10 A
39 Right Headlight High Beam 10 A
40 − −
41 Door Lock 20 A
42 Driver’s Power Window 20 A
43
Rear Passenger’s Side
Power Window
(20 A)
44
Front Passenger’s Side
Power Window
20 A
45
Rear Driver’s Side Power
Window
(20 A)
46 − −
Circuit Protected Amps
* Not available on all models
