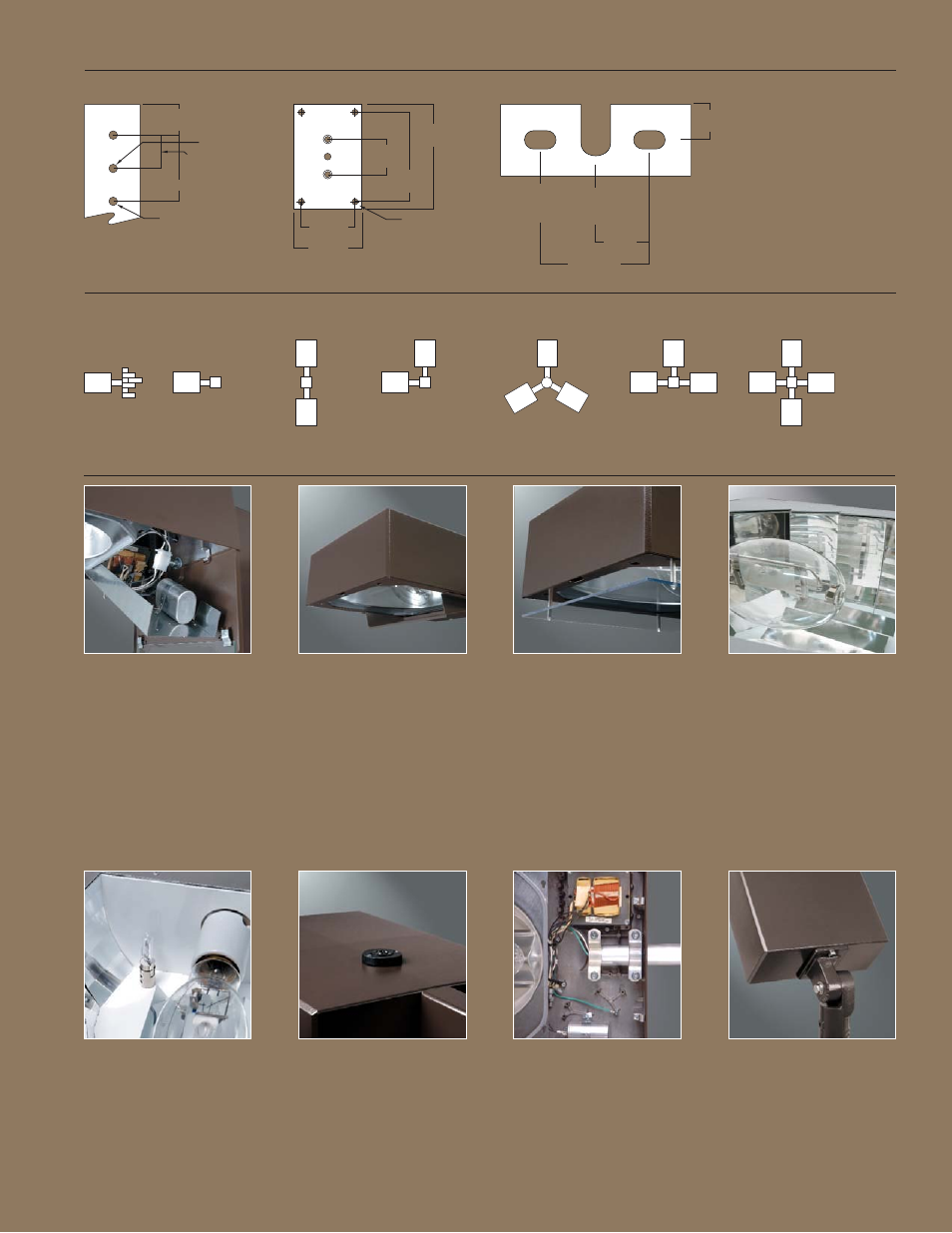

OPTIONS + ACCESSORIES [Order Separately]
MOUNTING CONFIGURATIONS
Wall Mount Arm Mount Single
EPA: 1.62
Arm Mount 2 @ 180°
EPA: 3.24
Arm Mount 2 @ 90°
EPA: 3.24
Arm Mount 3 @ 120°
(Round Pole Only)
EPA: 4.43
Arm Mount 4 @ 90°
EPA: 5.03
Arm Mount 3 @ 90°
EPA: 4.43
DRILLING PATTERNS
Type “M” Wall Mount Trunnion Mount
3/4" [20mm]
dia. hole
(2) 5/8" [16mm]
dia. holes
4 7/8" [124mm]
2 7/16" [124mm]
2 5/16"
[59mm]
12"
[305mm]
4 7/8"
[124mm]
9/16" [14mm]
Dia. Hole (4)
6 1/2"
[165mm]
8"
[203mm]
10 1/2"
[267mm]
ELECTRICAL POWER TRAY [PT]
Electrical componentry mounted
to an optional swing-down
galvanized steel power tray with
integral handle. Electrical
disconnects allow tray to be
completely removed from housing
providing ample hand and tool
room during fixture maintenance
and installation. EXTERNAL HOUSE SIDE SHIELD
[MA1221]
External house side shield designed
to provide sharp cutoff behind pole
while shielding the lamp from
direct view. Mounted to the door
via four (4) stainless steel fasteners,
the MA1221 external house side
shield provides industry leading
glare and spill light control. VANDAL SHIELD [TR/VS]
Door mounted 3/16" thick
polycarbonate shield prevents lens
damage from particulates and
projectiles. Treated with a UV
inhibitor to discourage the gradual
discoloration that results from
exposure to UV emitting sources. PREMIUM SEGMENTED OPTICS
Five (5) optional high efficiency
segmented optical systems
constructed of premium 95%
reflective anodized aluminum
sheet. Optical segments are rigidly
mounted inside a thick gauge
aluminum housing for superior
protection. All segment faces are
clean of rivet heads, tabs or other
means of attachment which may
cause streaking in the light
distribution.
QUARTZ RESTRIKE [Q, EM]
Optional quartz restrike [Q]
energizes auxiliary quartz lamp
upon power reactivation and
extinguishes once HID lamp
re-ignites. Quartz restrike
with time delay [EM] adds
cold start activation. NEMA TWISTLOCK
PHOTOCONTROL RECEPTACLE [4]
Gasketed photocontrol receptacle for
mounting a standard NEMA
photocontrol (order separately).
Button-style photocontrol [P] also
available. INTERNAL MAST ARM MOUNT [S]
Optional internal mast arm mount
accepts a 1 1/4" to 2 3/8" O.D.
horizontal tenon while 4-bolt
clamping mechanism secures
fixture. Cast-in leveling guides
provide ±5° vertical leveling
adjustment.
ADJUSTABLE SLIPFITTER [OA1090]
Optional knuckle mount with
internal wireway enables vertical
tilt adjustment. Knuckle slip fits over
vertical 2 3/8" O.D tenon and is
secured by two (2) 1/2" bolts.
3" [77mm]
1 1/2"
[39mm]
13/32"
[11mm]
slot
1"
[25mm]
7/16" [12mm]
x 3/4" [20mm]
slot (2)
