Haltech HT010613 User Manual
Page 3
Pinout

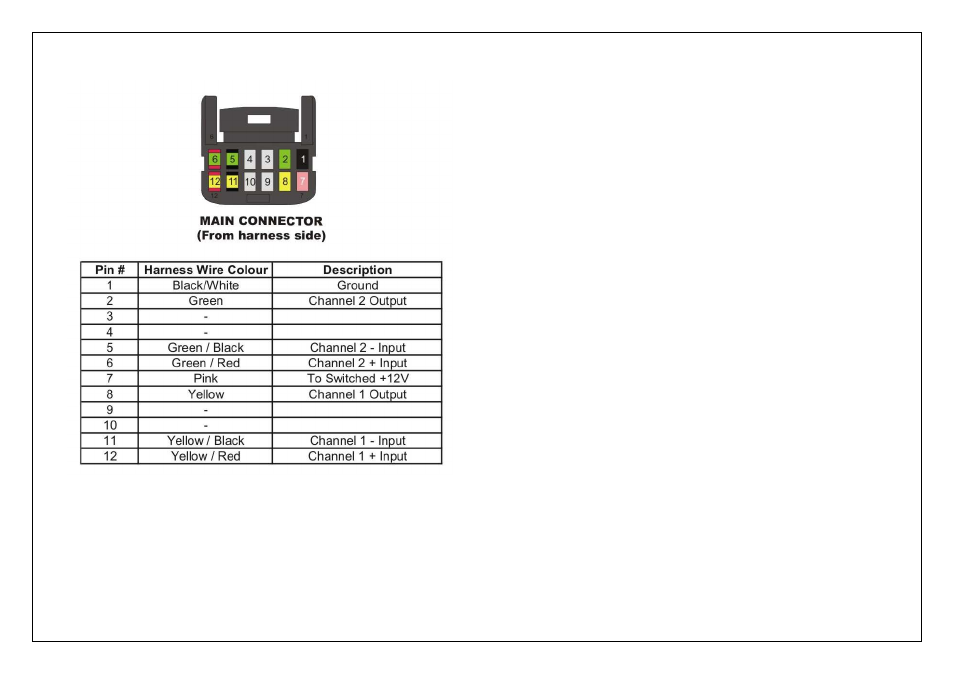

Figure 2 - Digital Reluctor Adaptor 2 Pinout
Haltech Digital Reluctor Adaptor 2
Quick Start Guide
Congratulations on purchasing a Haltech Digital Reluctor Adaptor 2
This product converts the analogue signal from a reluctor sensor into a digital signal
which the engine computer uses to determine the position of the crankshaft and/or
camshaft
This quick start guide will walk you through installation of the Haltech DRA 2 into a
vehicle.
Included with Haltech Digital Reluctor Adaptor (HT010613)
•
Haltech Digital Reluctor Adaptor 2
•
0.6M Flying Loom - # HT040005
•
Quick start guide
Optional Accessories (Sold Separately)
•
Spare Plug and Pin Set - # HT030005
