Hardware Information
The Haltech Stingray 2 Channel USB Oscilloscope has the following connections
•
Channel A Input
•
Channel B Input
•
Signal Generator Output / External Trigger Input
•
USB Input

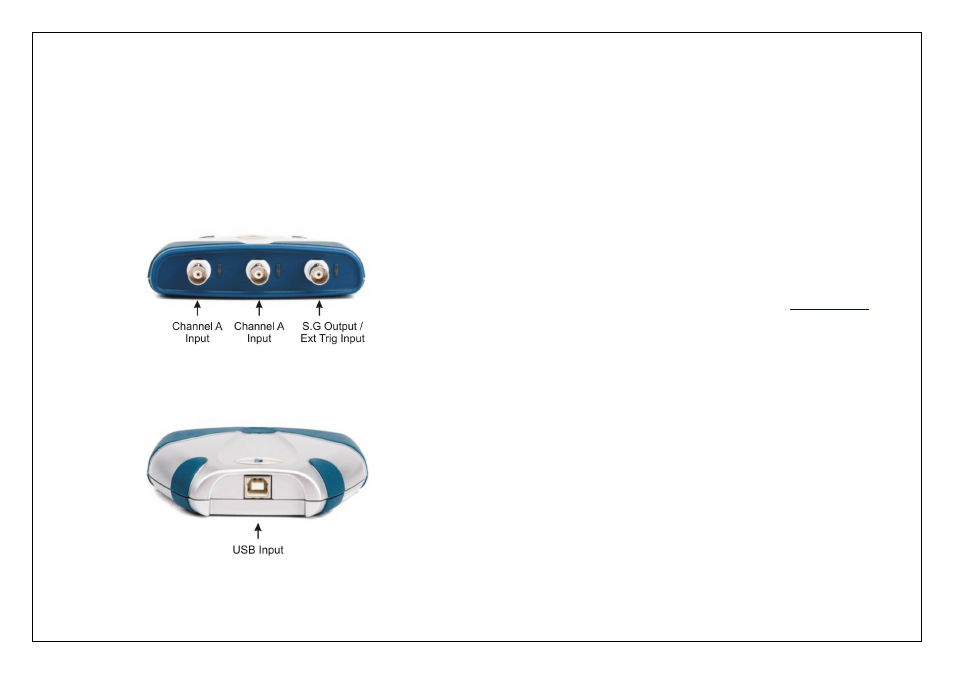

The connections are outlined in figures 1 and 2 below
Figure 1- Haltech Stingray 2 Channel USB Oscilloscope front panel connections
Figure 2- Haltech Stingray 2 Channel USB Oscilloscope rear panel connection
Haltech Stingray 2 Channel USB Oscilloscope
Quick Start Guide
Congratulations on your purchase of the Haltech Stingray 2 Channel USB Oscilloscope.
This guide contains the specifications and installation procedure for the oscilloscope,
drivers and application software.
The Haltech Stingray 2 Channel USB Oscilloscope combines the functions of
Oscilloscope, Data Logger, Spectrum Analyzer, Volt Meter, Frequency Meter and
Signal Generator into a single instrument.
It features simultaneous 12-bit sampling on both channels, a native sampling rate of
1MS/s (20MS/s for repetitive signals) and sophisticated hardware triggering including
delayed time base and pulse width. It also has a 3
rd
channel which can be a waveform
generator output or an external trigger input. Powered from USB, the Haltech Stingray
2 Channel USB Oscilloscope needs no external power supply.
The Software Easy Scope II (oscilloscope) and Easy Logger (data logging) software for
windows is included on the Haltech Resource CD supplied.
Alternatively it can be downloaded from the Haltech website
Haltech Stingray 2 Channel USB Oscilloscope Kit HT070202 includes
•
Haltech Stingray 2 Channel USB Oscilloscope
•
2 x Probes
•
USB Cable
•
Case
•
Haltech Resource / Software CD
•
Quick Start Guide
