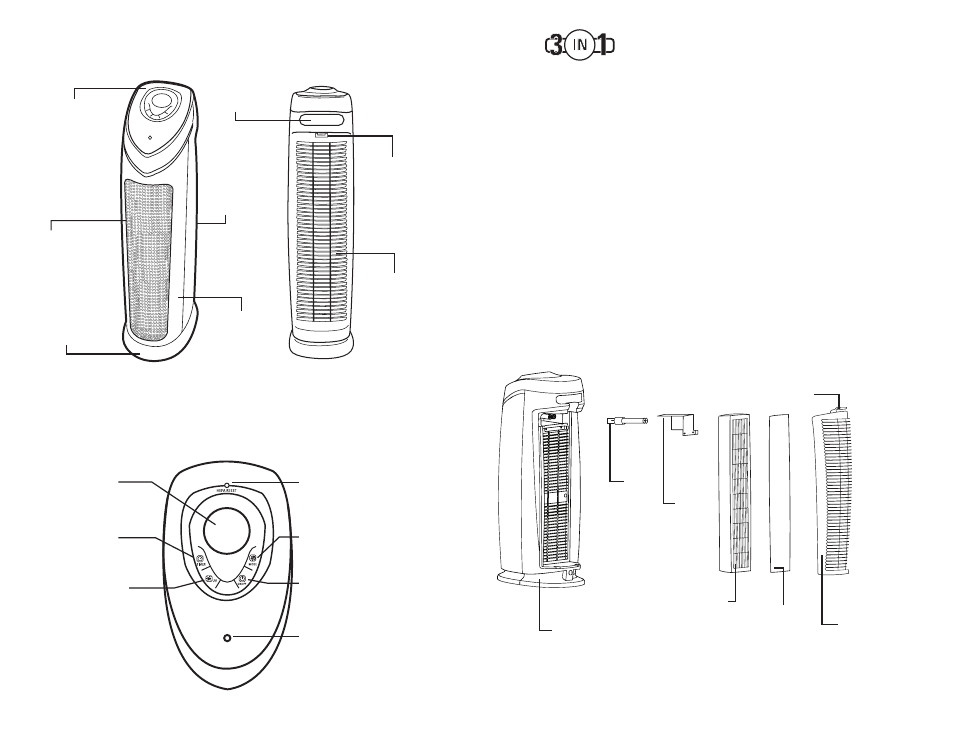

pRoducT SpecIfIcATIoNS ANd pARTS
coNTRol pANel
control panel
Air outlet
base
Air Inlet
unit body
power Indicator
light
carrying
handle
lock & Release
button
(for accessing
Filter and Bulb)
filter
Access
cover
front of unit back of unit
E-4 E-5
hepA Reset
uv-c oN/off
button
TImeR SeT
button
fAN Speed SelecTIoN
button
poWeR oN/off
button
SeTTINGS
display Screen
digital Air cleaning System
Improve your indoor air quality with your new Germ Guardian ® Air Cleaning
System. Multiple levels of cleaning include a combination True HEPA/Anti-Mite fi lter
that captures allergens and mites, and Charcoal fi lter to remove odors. UV-C light
technology enhances germ-killing.
pre-filter*
Captures initial dust and allergen particles.
charcoal filter* (aka Activated carbon)
Charcoal/Activated Carbon contributes to the control and prevention of the growth of
bacteria, germs and mold.
True hepA/Anti-mite filter
Captures 99.99% of dust and allergens. Traps mites.
uv-c light
UV-C light technology works with Titanium Dioxide (TiO 2 ) to enhance the elimination of
airborne germs. TiO 2 is activated by the UV-C light to decompose remaining odor molecules
caused by smoking, cooking and pets.
*Pre-Filter and Charcoal Filter are combined into one layer that attaches to the HEPA/Anti-Mite Filter.
main unit
uv-c
bulb
uv-c
metal
Shield
with
Ti0 2
hepA/
Anti-mite
filter
Rear cover
with Air
Inlet Grill
lock & Release
button
AIR cleANING lAyeRS
pre/
charcoal
filter
