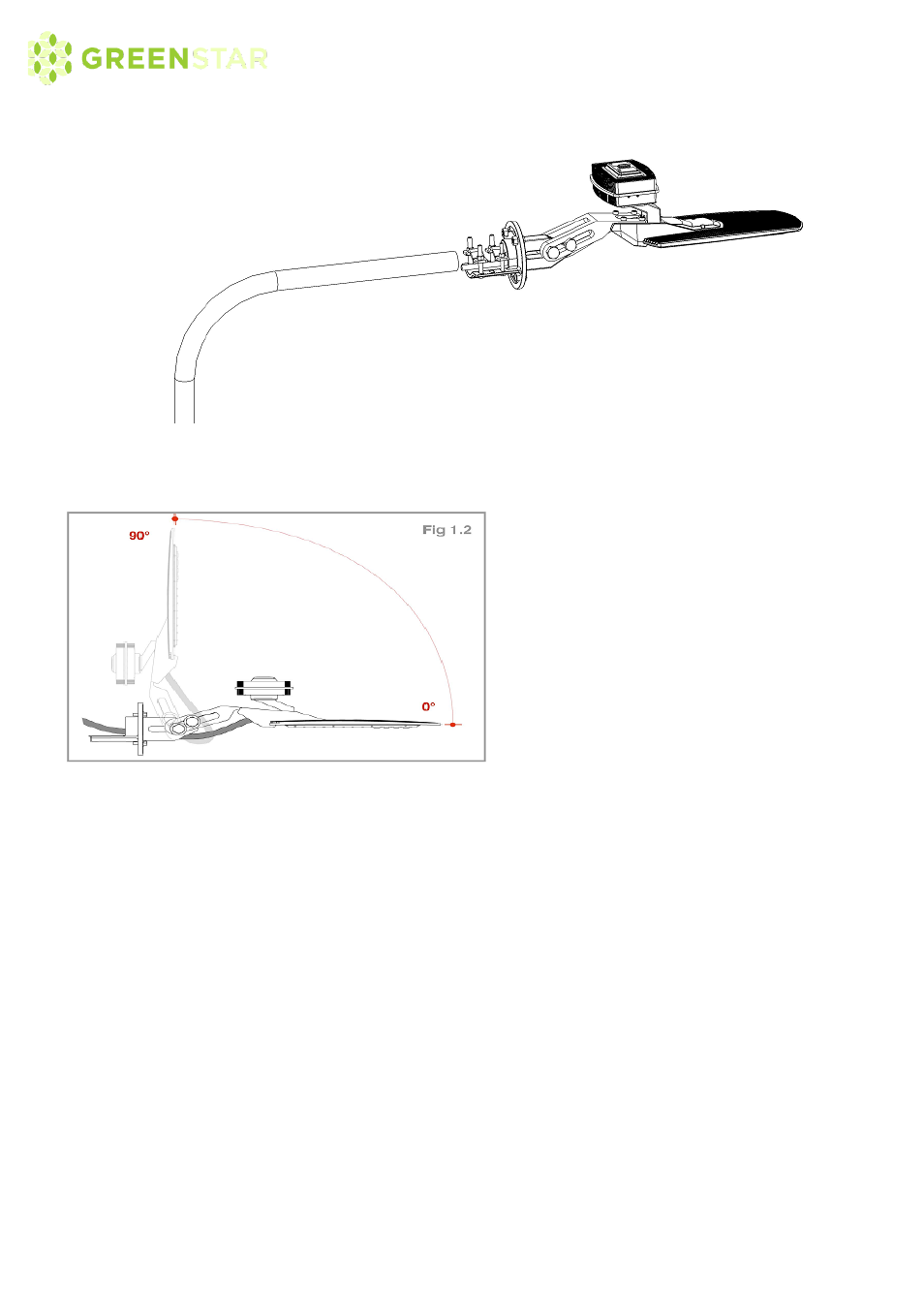

Step 6 à Adjust the angle of the Fixture to beam pattern position on the street. You may use the angle
measurement tool supplied in the optional mounting kit.
2. Mounting Galaxy directly on a wall.
• The Galaxy can be mounted directly on a wall using 4 sets of Metal wall plugs for M12 hex bolts.
• Drill four holes in wall and insert appropriate anchors.
• Mount the Galaxy assembly (without the pole mounting unit) using appropriate bolts.
• Connect the supply wires to the fixtures wires as per instructions in Step 4 above.
