5. Attach the spinner cone to the spinner backplate with
two 3x10mm self-tapping screws.
❏

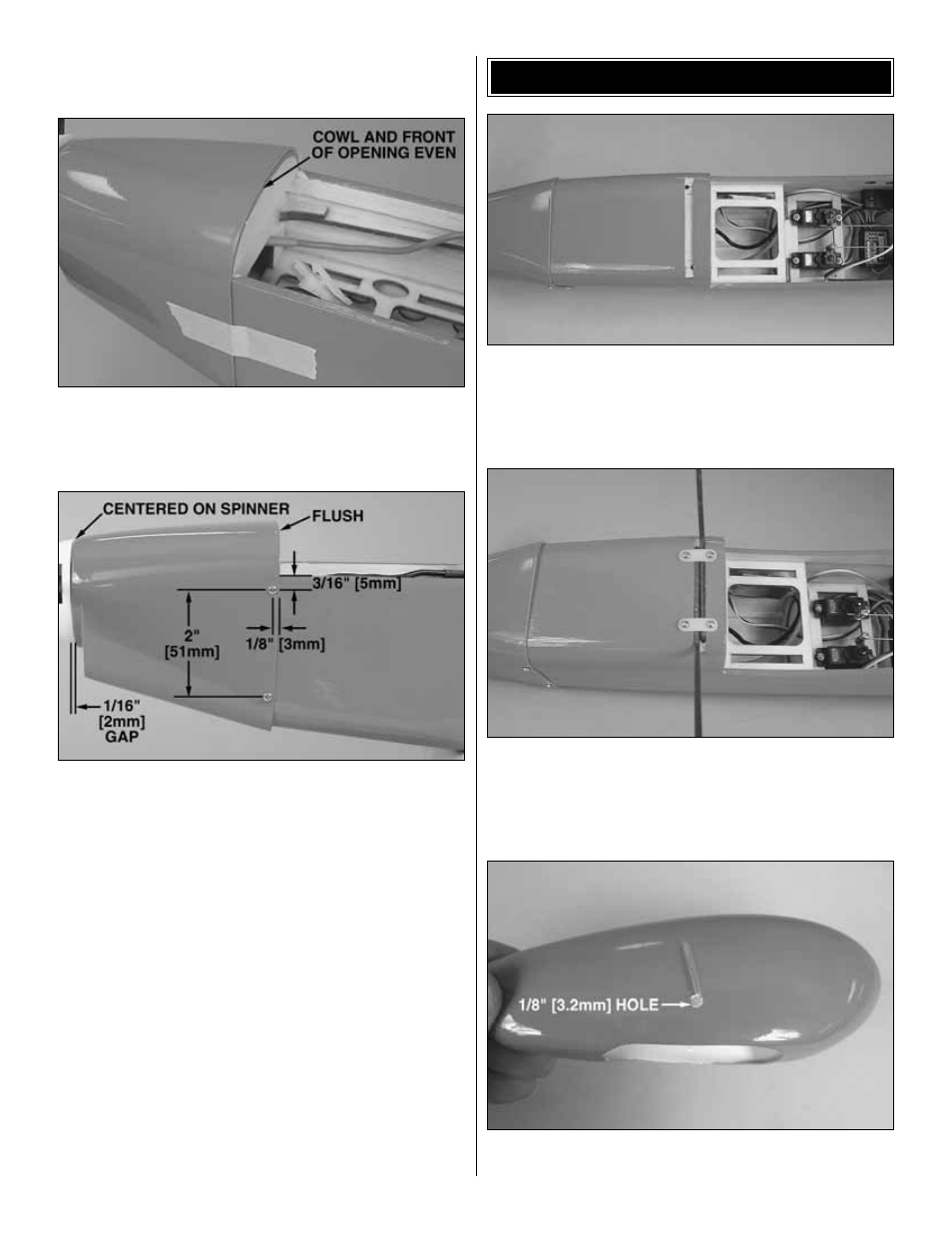

6. Tape the cowl to the fuselage so that the aft edge is
flush with the front of the battery hatch. Make certain there
is an approximately 1/16" [2mm] gap between the spinner
and cowl and the cowl is centered on the spinner.
❏
7. Drill four 1/16" [1.6mm] holes through both sides of the
cowl and the fuselage where shown in the photo. Remove
the cowl and enlarge the holes in the cowl only with a 3/32"
[2.4mm] drill. Mount the cowl with four 3x10mm screws.
❏
8. Remove the cowl once more. Add a few drops of thin
CA to the screw holes in the fuselage to “harden” the
threads. Allow the CA to fully harden, then mount the cowl.
❏
1. Trim the covering from the main landing gear slot in the
bottom of the fuselage.
❏
2. Insert the two main landing gear wires in the holes in
the slot.
❏
3. Position two nylon landing gear straps over the landing
gear. Drill a 1/16" [1.6mm] hole through each mounting hole
in the landing gear strap and into the fuselage. Attach the
landing gear straps to the fuselage with four 3x10mm self-
tapping screws. Harden the holes with thin CA.
❏ ❏
4. Starting with the left wheel pant, drill a 1/8" [3.2mm]
hole in the wheel pant at the bottom of the mounting slot.
MOUNT THE LANDING GEAR
16
