6
1
9
10
3
4
5
11
10
9
1
2
7
8
12
13

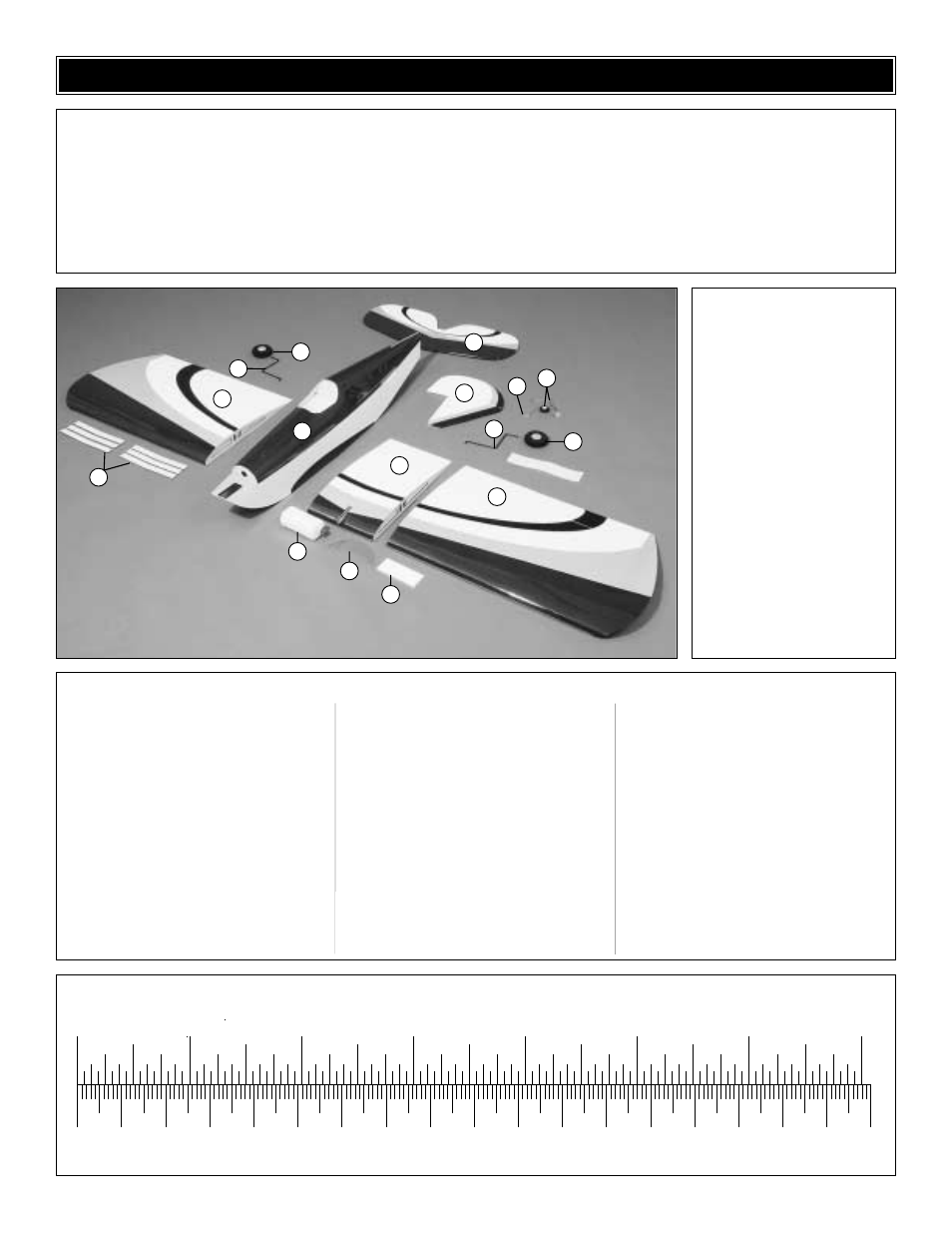

1 Outer Wings w/ Ailerons
2 Wing Center Section
3 Fuselage
4 Stab and Elevators
5 Fin and Rudder
6 Plywood Wing Joiners
7 Fuel Tank & Hardware
8 Windscreen
9 Main Landing Gear Wires
10 2-3/4" Main Wheels
11 Tail Gear with Wheel
12 Wing Bolt Plate
13 Wing Joiner Wire
(2) 1/4 - 20 Blind Nuts (Pre-installed in
fuse)
(2) 24" Grey Plastic Outer Pushrod
Tubes (Pre-installed in Fuselage)
(1) 11-3/4" Grey Plastic Outer Pushrod
Tube (Throttle)
(2) 12" .074 Wire Threaded One End
(Ailerons)
(2) 36" .074 Wire Threaded One End
(Elevator and Rudder)
(1) 17-1/2" .074 Wire Threaded One End
(Throttle)
(1) 2" x 9" Hinge Material
(1) Nylon Clevis (Rudder, Elevator,
Ailerons and Throttle)
(4) Faslink (Rudder, Elevator, Ailerons
and Throttle)
(2) Nylon 1/4 - 20 Wing Bolt (Wing)
(4) Large Nylon Control Horn (Aileron,
Rudder and Elevator
(1) Nylon Landing Gear Strap (1 tree of 4,
Landing Gear)
(5) Silicone Clevis Keepers (Rudder,
Elevator, Ailerons and Throttle
(4) 6-32 Blind Nuts (Mounting the Engine)
(4) 6-32 x 1/2" Socket Head Cap Screws
(Mounting the Engine)
(4) #6 lock washers (Mounting the
Engine)
(4) #6 washers (Mounting the Engine)
(4) 5/32" Wheel Collar (Landing Gear)
(4) 6-32 Set Screws (Wheel Collars)
(1) 3/32" Wheel Collar (Tail Wheel)
(1) 4-40 Set Screw (Tail Wheel)
(12) #2 x 1/2" Sheet Metal Screws
(Aileron Horns, Landing Gear Straps)
(4) #2 x 5/8" Machine Screws (Rudder,
Elevator)
(1) Brass Quick Connect Body (Throttle
connection)
(1) Nylon Retainer (Throttle connection)
(1) 4-40 X 1/2" Socket Head Cap Screw
(Throttle connection)
(1) White Plastic Spinner
Kit Contents
(Photographed)
Kit Contents (Not Photographed)
Before starting to build, use the Kit Contents list to take an inventory of your kit to make sure it is complete and inspect
the parts to make sure they are of acceptable quality. If any parts are missing or are not of acceptable quality, or if you
need assistance with assembly, contact Great Planes Product Support. When reporting defective or missing parts, use
the part names exactly as they are written in the Kit Contents list on this page.
Great Planes Product Support:
Phone: (217) 398-8970
Fax: (217) 398-7721
E-mail: [email protected]
KIT CONTENTS
5
0" 1" 2" 3" 4" 5" 6" 7"
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180
Inch Scale
Metric Scale
To convert inches to millimeters, multiply inches by 25.4
