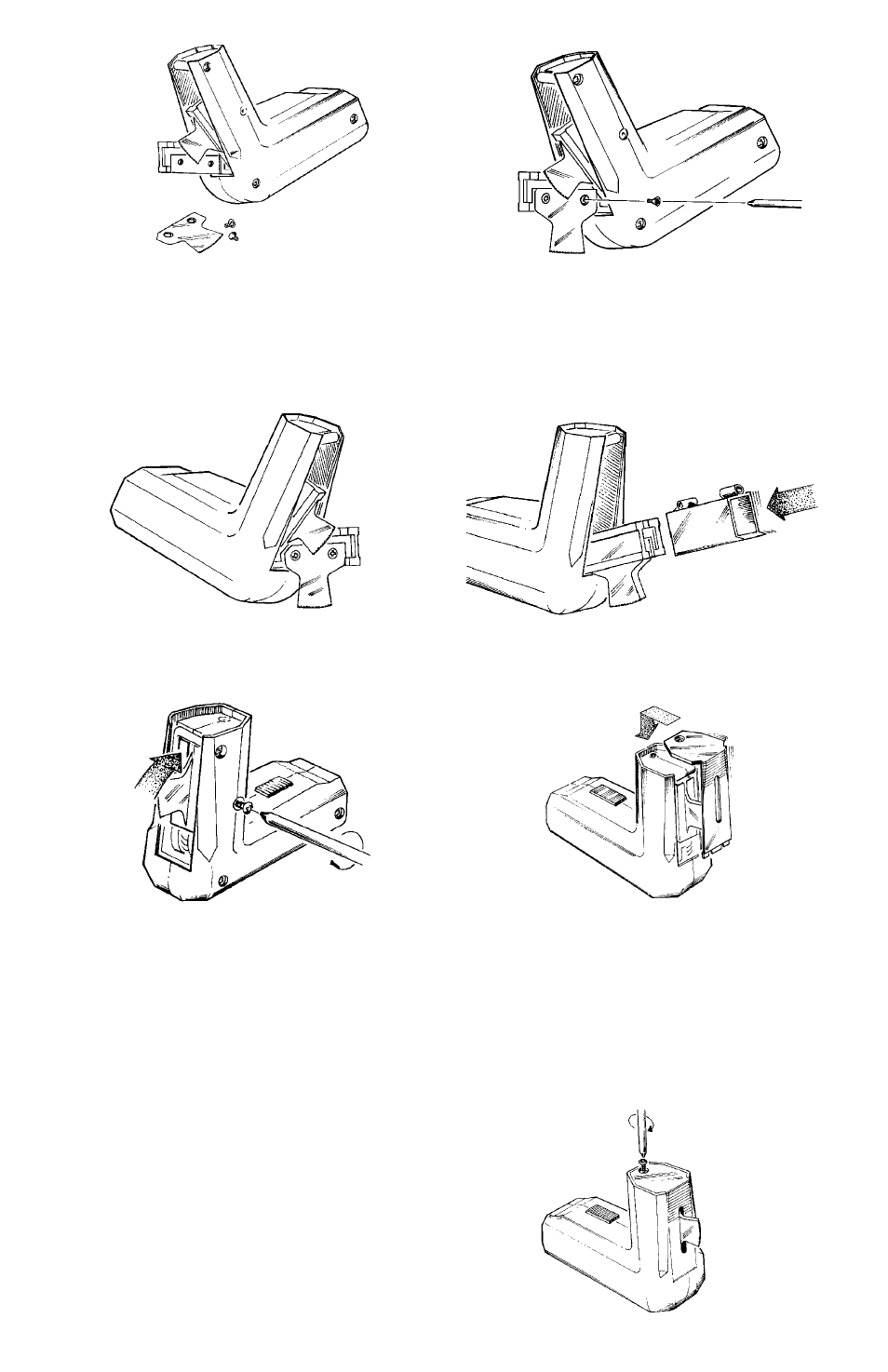

13 . Reinstall the front Phillips head screw
(smaller diameter). This screw must
engage the dog on the top of the blade
holder guide. Tighten securely, but do not
over tighten.
12 . Insert the blades through the slot in
the blade access hatch and snap the
hatch into place.
11 . Pivot the blade assembly up into the
housing, and wiggle the blade holder into
position so the screws can be installed.
Reinstall the rear Phillips head screw
(larger diameter) through the housing and
through the dog on the top of the rear
blade holder guide. Tighten snugly, but do
not over tighten.
10 . Press the blade holders together and
slide the guide back over the blade holders.
9 . Repeat steps 8 - 11 to replace the
other blade.
8 . Insert a new blade into the blade holder with
the 45-degree angled corner matching that of
the pocket in the blade holder. Install the
screws tightly.
7 . Remove the blade attachment screws
and slide the blade out of its pocket in the
blade holder. Notice that one corner of the
blade has a 45-degree angle, and note the
direction of that angled corner.
