Great Planes Slot Machine Cordless - GPMR4011 - Manual (Page 5)

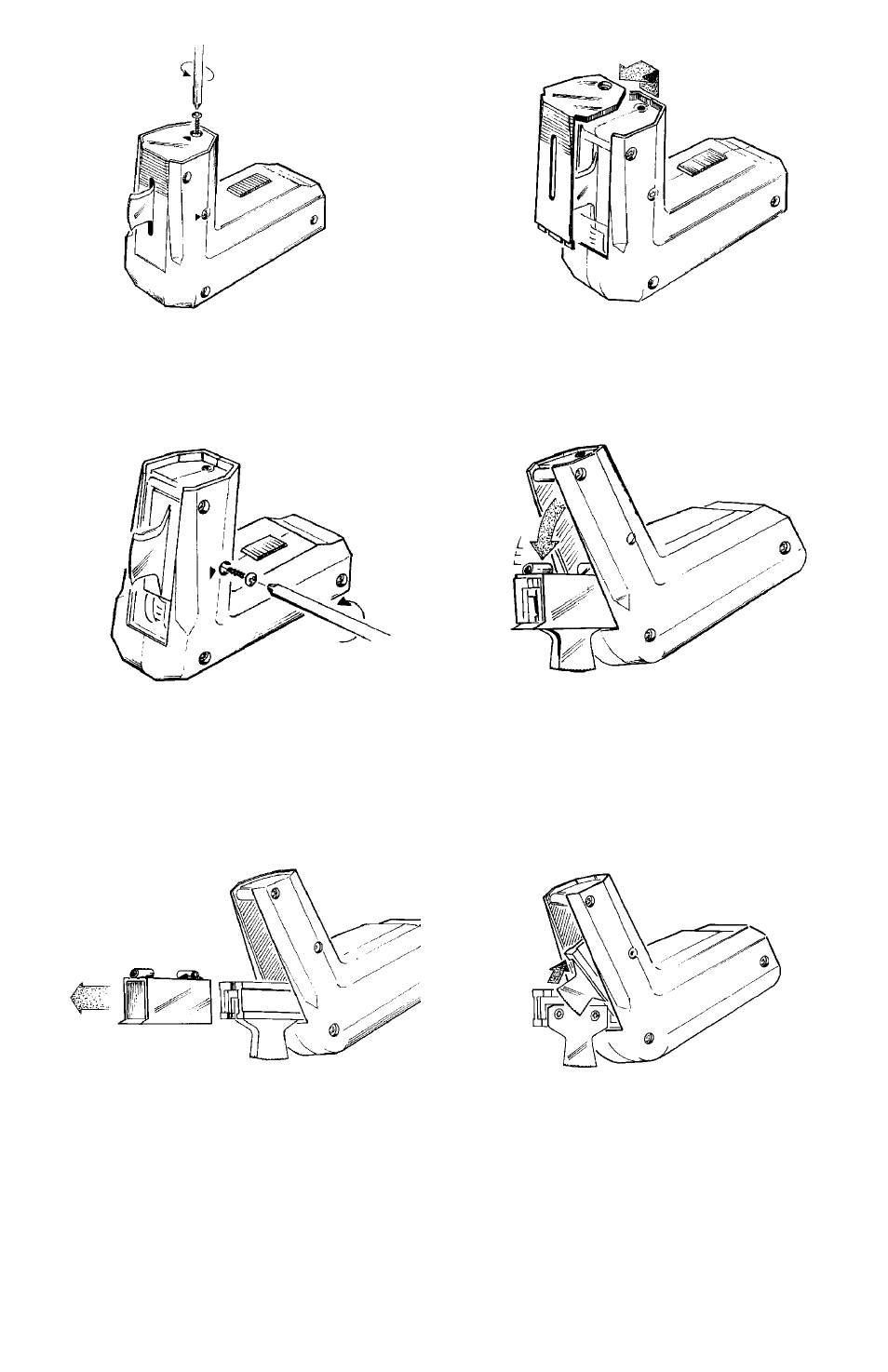

6 . Pivot one of the blade holders up and out
of the way, exposing the blade attachment
screws.
If you see a dried, colored residue
around the heads of the screws, that is
thread locking compound used during
assembly. You may need to touch a hot
soldering iron to the head of the screw for 5
seconds to soften the compound, making it
easier to loosen the screws.
5 . Slide the blade holder guide off of the
blade holders.
4 . Pivot the blades and blade holders down
and out of the housing.
3 . Remove the rear Phillips head screw
(above and slightly to the rear of
the blades). If this screw won’t back out
enough to pull it out, try pulling back on the
blades slightly while unscrewing it.
2 . Remove the blade access hatch by
sliding it forward and down.
1 . Remove the front Phillips head screw on
the end of the housing.
