Page 5
5
0"
1"
2"
3"
4"
5"
6"
7"
0
10
20
30
40
50
60
70
80
90
100 110 120 130 140 150 160 170 180
Inch Scale
Metric Scale
16
17
18
1
5
7
10
11
15
12
8
2
6
19
20
21
14
1
13
7
3
4
9

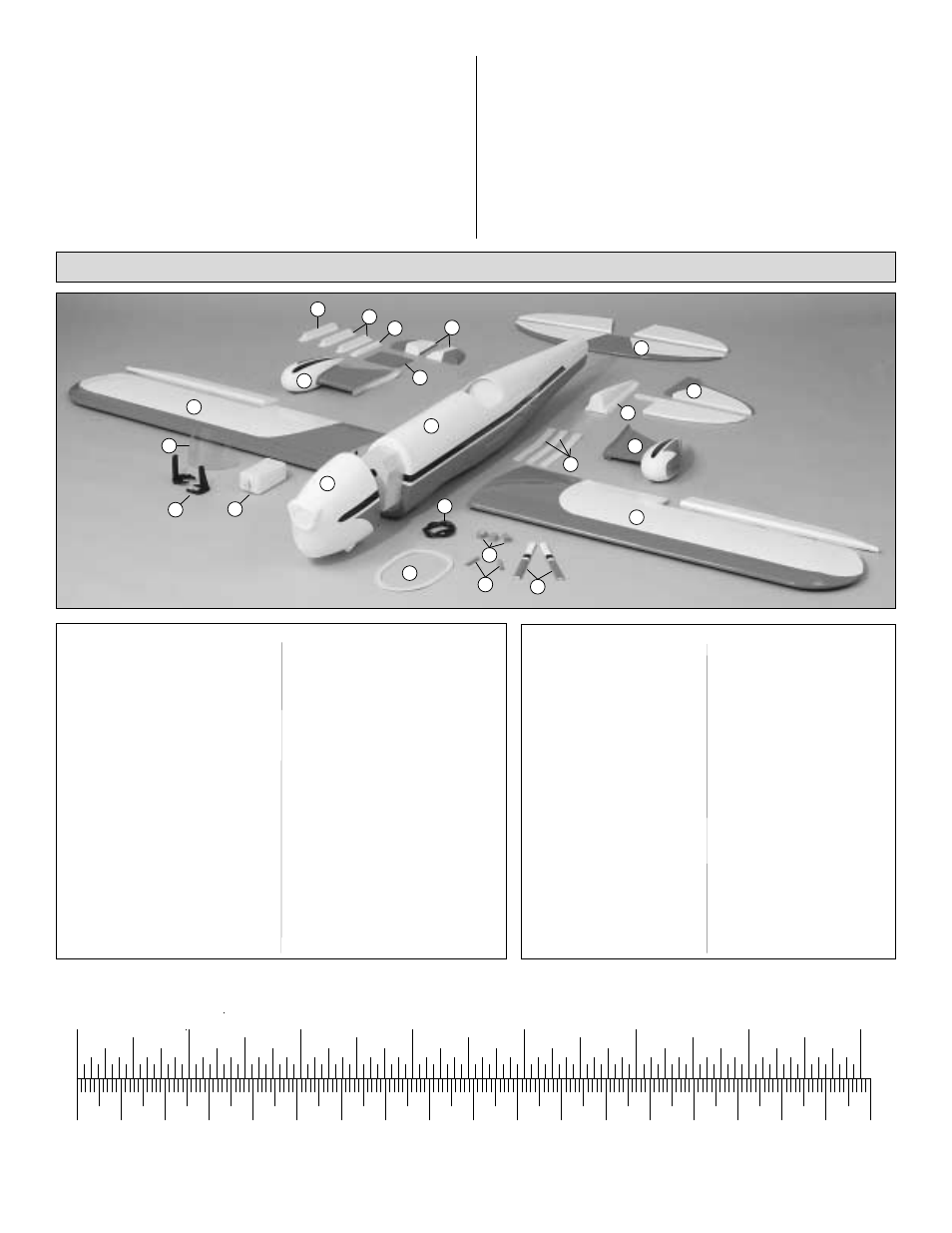

Parts List
1
Wing and Ailerons
2
Fuselage
3
Stab and Elevators
4
Fin and Rudder
5
Cowl
6
Cowl Ring
7
Wheel Pants
8
Rudder Fairing
9
Turtledeck
10
Fin Fairing
11
Stab Fairings
12
Wing Bolt Plate
13
Forward Wing Joiner
14
Wing Struts
15
Dorsal Fin
16
Engine Mount
17
Fuel Tank
18
Windscreen
19
Cockpit Coaming
20
Wing Dowels
21
Cowl Mount Blocks
Not Pictured:
Main Landing Gear
Tail Gear with Tailwheel
Aft Wing Joiner
Forward Servo Tray
Aft Servo Tray
Instrument Panel Decal
Hardware Bag
Replacement Parts:
GPMA2200
Wing Set
GPMA2201
Fuse Set
GPMA2202
Tail Set
GPMA2203
Cowl Set
GPMA2204
Windscreen
GPMA2205
Landing Gear Set
GPMA2206
Wheel Pants
GPMA2207
Wing Struts
GPMA2208
Rudder Fairing
•
Whenever the term glue is written you should rely upon
your experience to decide what type of glue to use. When a
specific type of adhesive works best for that step the
instructions will make a recommendation.
•
Whenever epoxy is specified you may use either 30-
minute epoxy or 6-minute epoxy. When 30-minute epoxy is
specified it is highly recommended that you use only 30-
minute (or 45-minute) epoxy because you will need the
working time and/or the additional strength.
•
When you get to each step, read that step completely
through to the end before you begin. Frequently there is
important information or a note at the end of the step that
you need to know before you start.
•
Photos and sketches are placed before the step they
refer to. Frequently you can study photos in following steps
to get another view of the same parts.
To convert inches to millimeters, multiply inches by 25.4
(1) 60-120 Engine mount
(2) Metal solder-on clevis
(2) Brass body for screw-lock
pushrod connector
(4) Large nylon control horns
(2) 1/4-20 x 2" nylon wing bolts
(3) Nylon clevis
(2) Hump strap for 1/8" wire
(2) Trees of 4 flat nylon LG straps
(1) Ball link
(2) Nylon retainers for screw-lock
(1) CA hinge strip
(2) Nylon faslinks
(2) 6-32 torque rod horn
(2) 4-40 hex nuts
(4) 8-32 blind nuts
(1) 0-80 hex nut
(1) 3/16" x 36" guide tube
(7) Silicone retainers
(2) 6-32 set screws
(2) 6-32 x 1/4" cap screws
(7) #4 x 5/8" screws
(1) 0-80 threaded ball
(4) 2-56 x 3/4" cap screws
(4) 8-32 x 1-1/4" cap screws
(4) 8-32 x 1" cap screws
(2) 4-40 x 1/8" cap screws
(36)#2 x 1/2" screws
(4) 3/16" wheel collars
(1) 2-56 x 12" threaded pushrod
(1) 2-56 x 36" threaded pushrod
(2) 2-56 x 6" threaded pushrods
(2) 4-40 x 36" threaded pushrods
(1) 6-32 x 1-1/2" threaded rod
(3) #4 flat washer
(8) #8 lock washer
(4) #8 flat washer
(2) Axles
Parts List
Hardware
