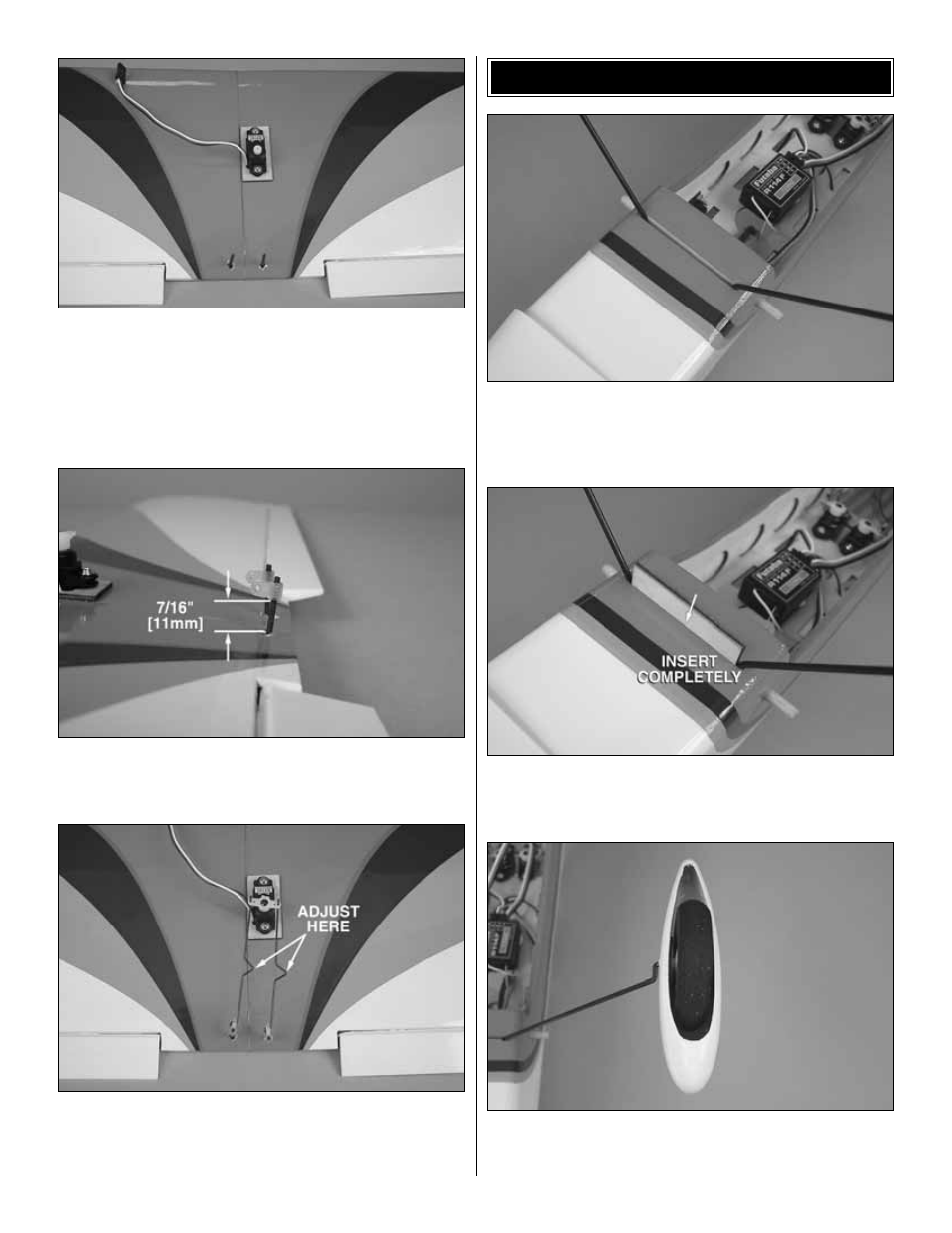

9. Mount the aileron servo in the wing. Connect a 6"
[150mm] aileron servo extension to the receiver. Connect
the aileron servo to the servo extension and switch on the
transmitter and ESC. Center the aileron servo trim.
❏
10. Install a two-arm servo arm with both holes 5/16"
[8mm] from the center of the arm.
❏
11. Thread the two nylon torque rod horns onto the
aileron torque rods. The bottom of the horn should be
approximately 7/16" [11mm] from the wing.
❏
12. Insert one end of the aileron pushrods into the torque rod
horns. Insert the other end into the servo arm. Install the servo
arm on the aileron servo and install the servo arm screw. To
adjust the ailerons, open or close the V-bends in the pushrods.
❏
1. Trim the covering from the main landing gear slot in the
bottom of the fuselage and insert the main landing gear wire.
❏
2. Insert the plywood landing gear retainer in the slot. It
can either be glued in or held in place with clear tape.
❏
3. Install both wheel pants and foam wheels by inserting
the landing gear in one side of the wheel pant, then through
the foam wheel and out the other side of the wheel pant.
MOUNT THE LANDING GEAR
14
