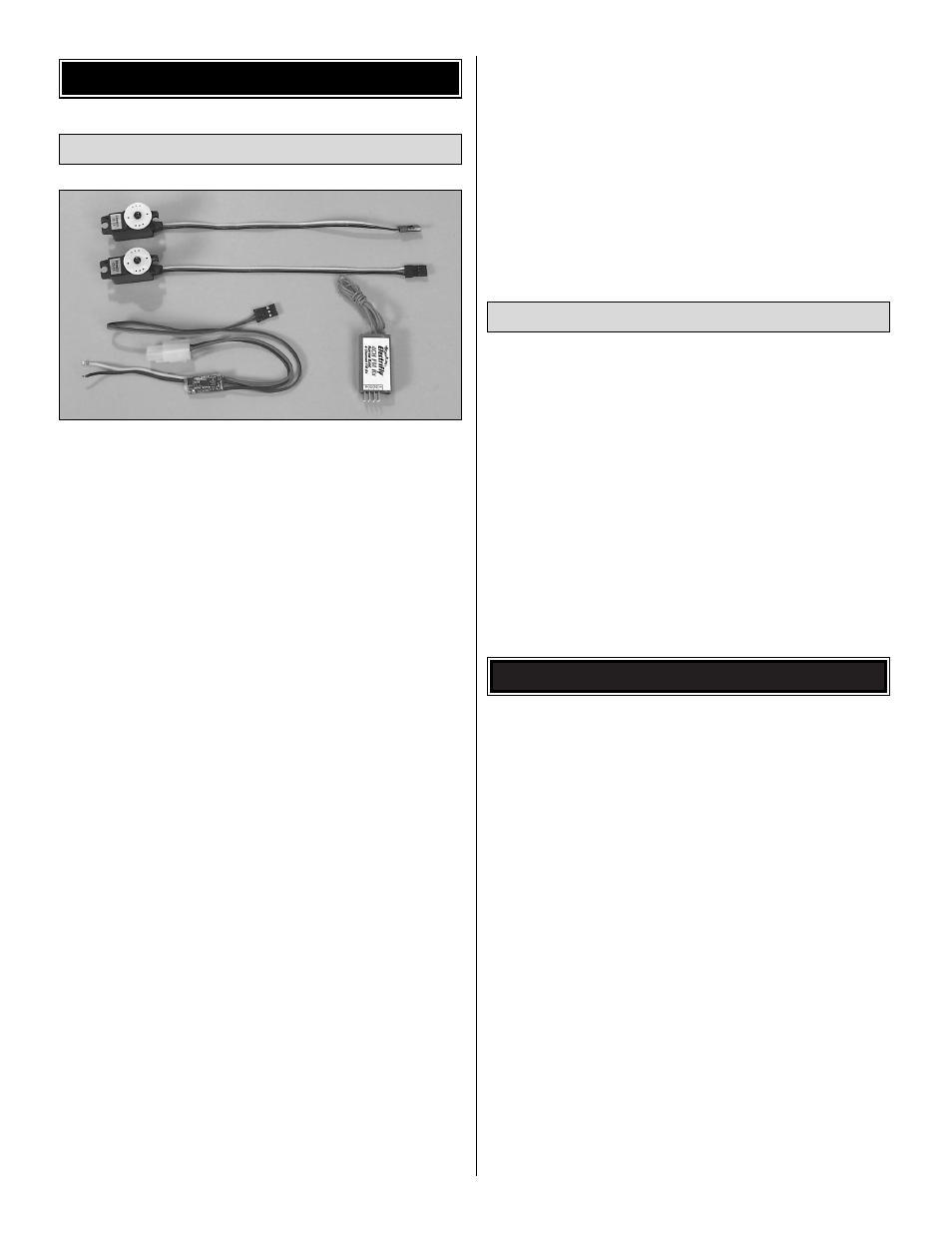

The Firebat ARF requires a three-channel radio with two
servos, a receiver and an electronic speed controller with
BEC. A full-size receiver and standard servos can be used.
You will also need a 10" [254mm] (or 12" [305mm]) servo
extension wire.
Flight performance and maneuverability can be improved
with dual aileron servos. You will need a mini servo for the
canard (elevator) with at least 30 oz. in. of torque and two
micro/mini servos for the ailerons with at least 15 oz. in. of
torque. You will also need a mini or micro receiver, a speed
controller and a 18" [457mm] (or 24" [610mm]) servo extension
wire. This will require a four-channel radio system with
mixing functions.
Servos:
(HCAM0110) CS-12, 35 oz in torque
(FUTM0033) S3101, 34.7 oz in torque
(HRCM3401) HS-81J, 36 oz in torque
For dual aileron servos:
(HCAM0100) CS-15, 15 oz in torque
(FUTM0041) S3106, 16.7 oz in torque
(HRCM0981) HS-55J, 15 oz in torque
Mini Receivers:
(GPML0040) 4-channel FM, high band
(GPML0041) 4-channel FM, low band
(FUTL0407) 4-channel AM, low band
(FUTL0408) 4-channel AM, high band
(HRCL1535) 4-channel FM
low band - channels 11-35
high band - channels 36-60
Receiver crystal:
(FUTL62**) for GPM low band
(FUTL63**) for GPM high band
(FUTL47**) for FUT low band
(FUTL48**) for FUT high band
(HRCL23**) for HRC
** desired channel
Speed Control:
(GPMM2010) C-10, 12 amp
(GPMM2020) C-20, 20 amp
Servo Extension Wire:
(1) 10" (or 12") extension wire with standard receiver
(1) 18" (or 24") extension wire with micro receiver
Additionally, an 8-cell (9.6 volt) 600 to 1200 mAh battery
pack is required.
(GPMP0200) – 700 mAh NiCd
(GPMP0310) – 1100 mAh NiCd
In addition to common household tools, here is the list of
items used to build the Firebat ARF.
❏
6-minute epoxy (GPMR6042)
❏
1/2 oz. Thin CA+ (GPMR6001)
❏
Hobby knife (HCAR0105)
❏
#11 blades (HCAR0211)
❏
Drill and 1/16" drill bit
❏
Cellophane tape (for hinging ailerons)
❏
Double-sided foam tape (GPMQ4440) for mounting
receiver and speed control
❏
Sandpaper and sanding block
❏
Small phillips screwdriver (#1)
❏
Flat blade screwdriver
❏
Small T-pins (HCAR5100) or craft pins
If needed, replacement parts for your Firebat Electric ARF
are available through your hobby supplier. See the photo
and
“Parts List” on page 4 for a reference of the parts
listed below.
(GPMG0330) Motor
(GPMQ1700) Propellers
(GPMA2372) Canard Set
(GPMA2373) Canopy
(GPMA2374) Rear Hatch
(GPMA2375) Vertical Fin Set
(GPMA2376) Fuselage Set
(GPMA2377) Hardware Pack
REPLACEMENT PARTS
Building Supplies
Flight Equipment
ADDITIONAL ITEMS REQUIRED
3
