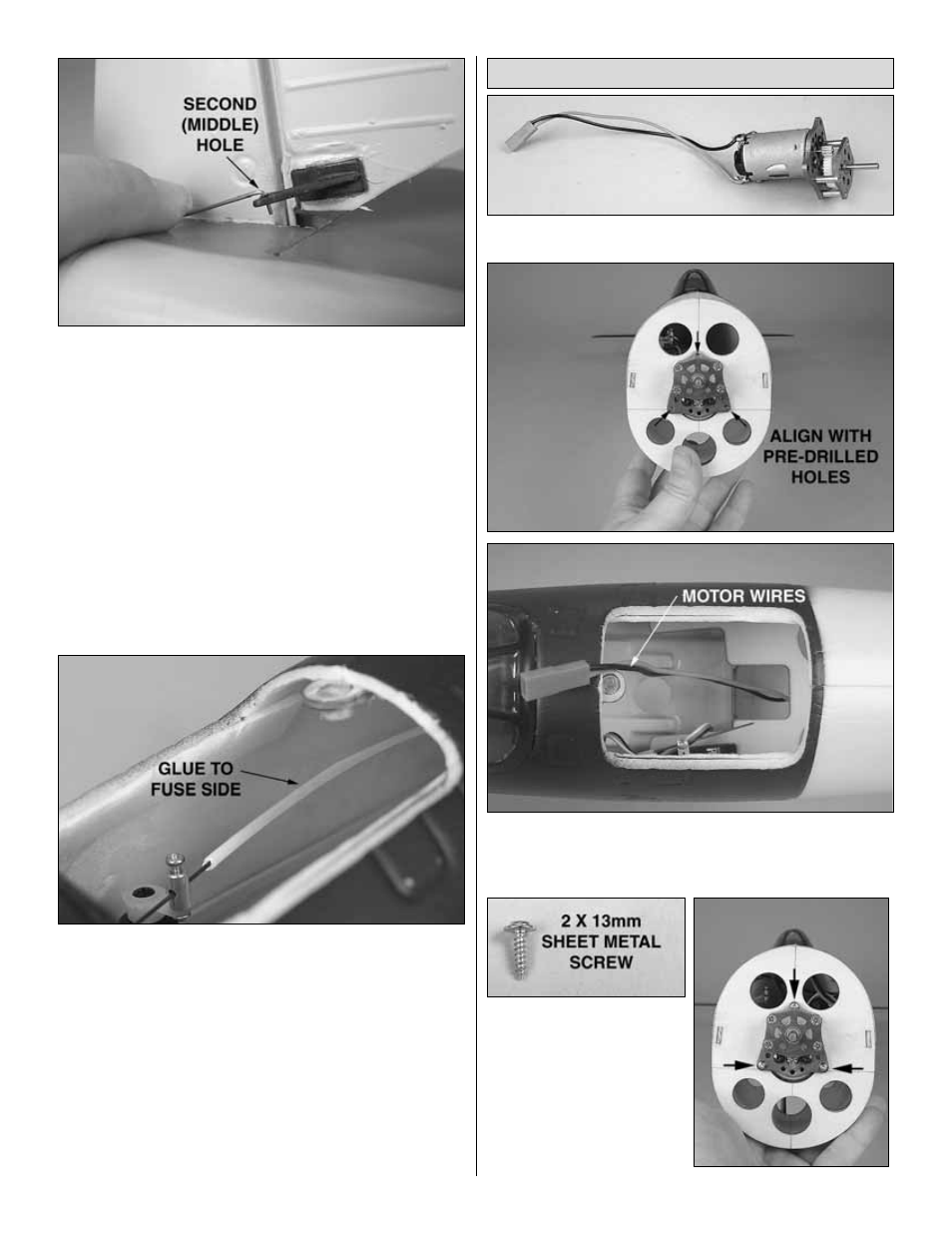

6. Insert the pushrod into the middle hole on the control

horn. Attach a snap keeper to the pushrod and secure it to
the pushrod with a drop of thin foam safe CA.

7. Temporarily connect the elevator servo to your radio

system and center it.

8. Center the elevator. Add a drop of Threadlocker to the

quick connect long screw and tighten it to secure
the pushrod.

9. With the elevator at neutral, glue the pushrod guide

tube to the fuselage at the point shown.

10. Trim off excess pushrod wire.

1. Locate the motor and gearbox assembly.

2. Remove the cowl and slide the motor assembly into

the firewall as shown. The motor leads route into the radio
compartment from below.

3. Using three 2 x 13mm

sheet metal screws, attach
the gearbox to the firewall.
There are holes predrilled in the
firewall as a guide. Remove the
screws and harden the holes
with thin CA. Allow the CA to
fully harden before reinstalling
the screws.

Motor Installation
