Kit contents – Great Planes CAP 580 Matt Chapman EP FlatOuts ARF - GPMA1112 User Manual
Page 5
5
1
2
3
4
16
5
8
9
11
12
13
14
15
10
7
6
1 Horizontal Fuselage Halves (2)
2 Vertical Fuselage Halves (2)
3 Rudder
4 Wing
5 Ailerons (2)
6 Horizontal Stabilizer
7 Elevator Halves (2)
8 Outer Wheel Pants (2)
9 Inner Wheel Pants (2)
10 (Brushless Only) Vertical Fuselage Doublers (4)
11 (Brushless Only) Horizontal Fuselage Doublers (4)
12 Propeller
13 Prop Saver
14 Motor/Gearbox Assembly
15 Main Wheels (2)
16 Carbon Rods and Tubes:
Fuse Doubler Tube 5.5x250mm [7/32" x 9-7/8"]
Elevator Joiner Tube 3x305mm [1/8" x 12"]
Rudder Post Tube 3x108mm [1/8" x 4-1/4"]
Fuselage Tube 3x649mm [1/8" x 25-1/2"]
Leading Edge Tube 3x458mm [1/8" x 18"] (2)
Trailing Edge Tube 3x914mm [1/8" x 36"]
Landing Gear Legs 2x190mm [5/64" x 7-1/2"] (2)
Rear Wing Braces 2x71mm [5/64" x 2-3/4"] (2)
Wheel Axles 2x17mm [5/64" x 5/8"] (2)
Rudder Pushrod 1x325mm [.040" x 12-3/4"]
Elevator Pushrod 1x290mm [.040" x 11-1/2"]
Aileron Pushrods 1x80mm [.040" x 3-1/8"] (2)

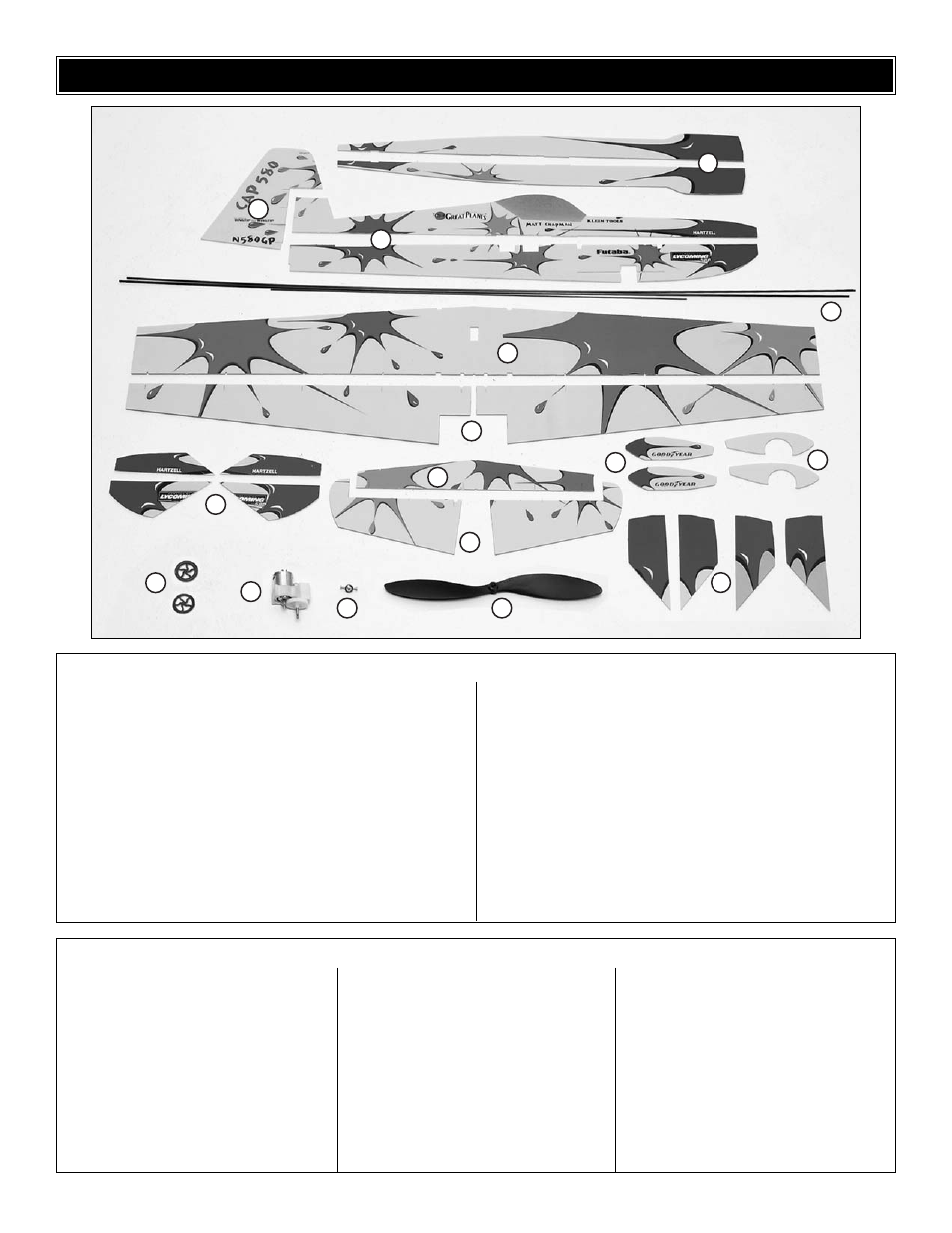

Kit Contents (Photographed)
3mm Plywood Firewall
Hook & Loop Mounting Material
O-Rings (2)
Gearbox Motor Block
Plastic Tree Parts:
A1 Z-Bend Clevis (10)
A2 Offset Z-Bend Clevis (4)
B1 Stand-Alone Control Horn (5)
B2 Stand-Alone Control Horn Retainer (5)
C1 Clip Hinge Control Horn (5)
C2 Clip Hinge (26)
C3 Hinge Retainer Ring (10)
C4 Aileron Link Horn (4)
D1 Axle Support (2)
D2 Rod Support (12)
D4 Tailwheel Bracket (1)
D5 Tailwheel (1)
D6 Wheel Collar (2)
E1 Control Surface Brace (4)
E2 Fuselage Joiner (3)
E3 Pushrod Guides (4)
F1 Wire Clip (4)
F2 Wing Servo Mount (1)
F3 Fuselage Servo Mount (2)
F4 Fuselage Aileron Servo Mount (1)
G1 Double-Sided Offset Arm, Size B (2)
G2 Double-Sided Arm, Size B (2)
G3 Single-Sided Arm, Size B (4)
G4 Double-Sided Arm, Size A (2)
G5 Double-Sided Offset Arm, Size A (2)
G6 Single-Sided Arm, Size A (4)
G7 Double-Sided Arm, Size C (2)
G8 Double-Sided Offset Arm, Size C (2)
G9 Single-Sided Arm, Size C (4)
Kit Contents (Not Photographed)
KIT CONTENTS
