5

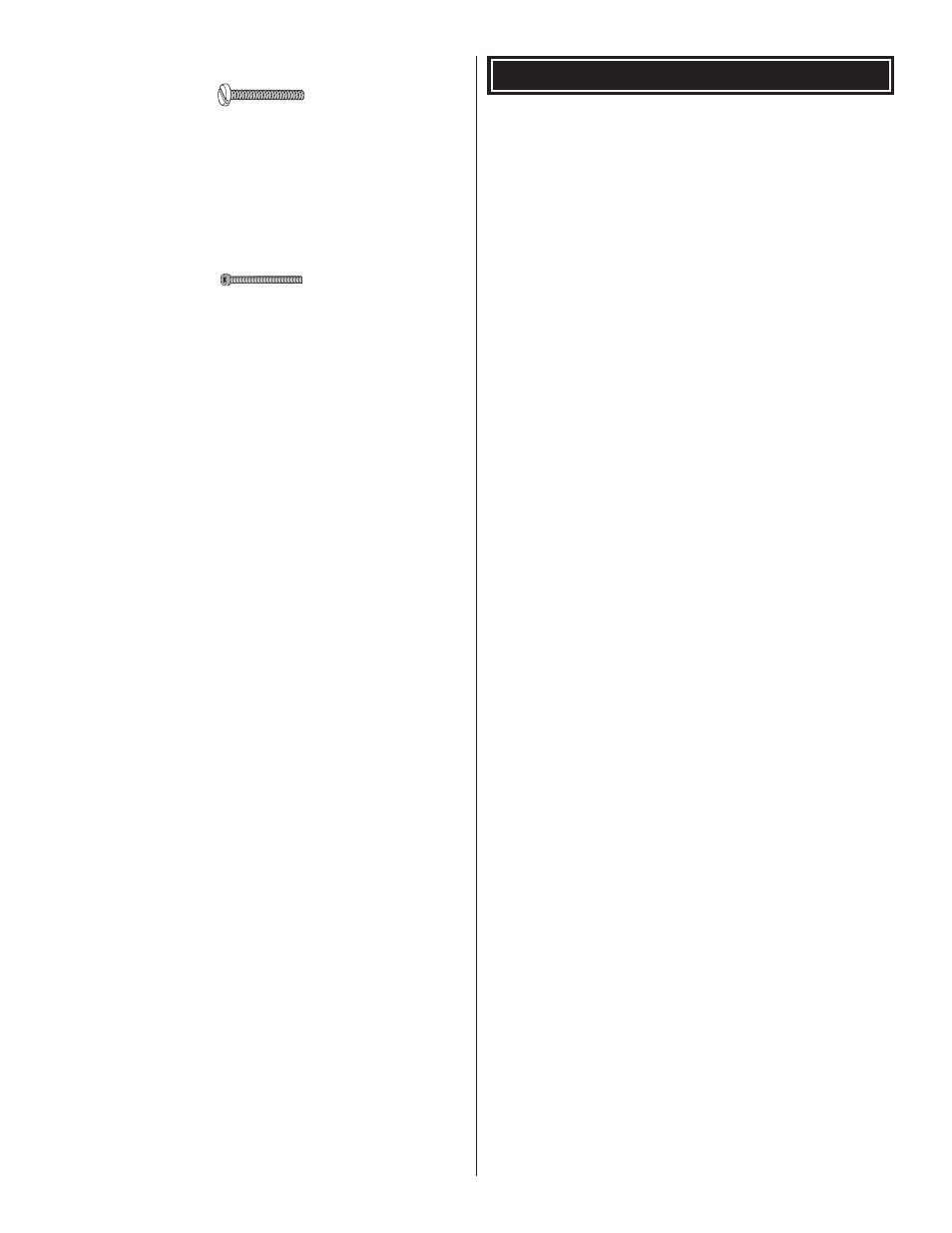

This is a number four screw that is 3/4" [19mm] long
with forty threads per inch.
• Socket Head Cap Screws (SHCS) are designated by
a number, threads per inch, and a length. For example
4-40 x 3/4" [19mm].
This is a 4-40 SHCS that is 3/4" [19mm] long with forty
threads per inch.
• When you see the term test fi t in the instructions,
it means that you should fi rst position the part on the
assembly without using any glue, then slightly modify
or custom fi t the part as necessary for the best fi t.
• Whenever the term glue is written you should rely upon
your experience to decide what type of glue to use. When
a specifi c type of adhesive works best for that step, the
instructions will make a recommendation.
• We recommend 30-minute epoxy only, because you will
need the working time or the additional strength.
• Photos and sketches are placed before the step they
refer to. Frequently you can study photos in following
steps to get another view of the same parts.
• The Edge 540T EP ARF is factory-covered with Top
Flite
® MonoKote ® fi lm. Should repairs ever be required,
MonoKote can be patched with additional MonoKote
purchased separately. MonoKote is packaged in six-foot
rolls, but some hobby shops also sell it by the foot. If
only a small piece of MonoKote is needed for a minor
patch, perhaps a fellow modeler would give you some.
MonoKote is applied with a model airplane covering iron,
but in an emergency a regular iron could be used. A roll
of MonoKote includes full instructions for application.
Following are the colors used on this model and order
numbers for six foot rolls.
White – TOPQ0204
Sapphire Blue – TOPQ0226
Medium Purple – TOPQ0225
Sky Blue – TOPQ0206
Royal Blue – TOPQ0221
ORDERING REPLACEMENT PARTS
Replacement parts for the Great Planes Edge 540T EP ARF
are available using the order numbers in the Replacement
Parts List that follows. The fastest, most economical service
can be provided by your hobby dealer or mail-order company.
To locate a hobby dealer, visit the Hobbico web site at www.
hobbico.com. Choose “Where to Buy” at the bottom of the
menu on the left side of the page. Follow the instructions
provided on the page to locate a U.S., Canadian or
International dealer.
Parts may also be ordered directly from Hobby Services by
calling (217) 398-0007, or via facsimile at (217) 398-7721,
but full retail prices and shipping and handling charges will
apply. Illinois and Nevada residents will also be charged
sales tax. If ordering via fax, include a Visa
® or MasterCard ®
number and expiration date for payment.
Mail parts orders and payments by personal check to:
Hobby Services
3002 N. Apollo Drive, Suite 1
Champaign, IL 61822
Be certain to specify the order number exactly as listed in
the Replacement Parts List. Payment by credit card or
personal check only; no C.O.D.
If additional assistance is required for any reason contact Product
Support by e-mail at [email protected],
or by telephone at (217) 398-8970.
Replacement Parts List
Description How to Purchase
Missing pieces Contact Product Support
Instruction manual Contact Product Support
Full-size plans Not available
Contact your hobby supplier for the following parts:
GPMA3310 Wing Set
GPMA3311 Fuselage Set
GPMA3312 Tail Set
GPMA3313 Landing Gear
GPMA3314 Wheel Pants (2)
GPMA3315 Tail Wheel Assembly
GPMA3316 Cowl w/Cowl Ring
GPMA3317 Canopy Hatch
GPMA3318 Carbon Fiber Wing Tube
GPMA3321 Decal Sheet
GPMQ4404 10-24 Nylon EZ Bolts (2)
GPMQ4273 4mm Low Profi le Landing Gear Axles (2)
Performance Upgrade Parts
GPMA3319
Carbon Fiber Landing Gear
GPMA3320 Carbon Fiber Wheel Pants (2)
