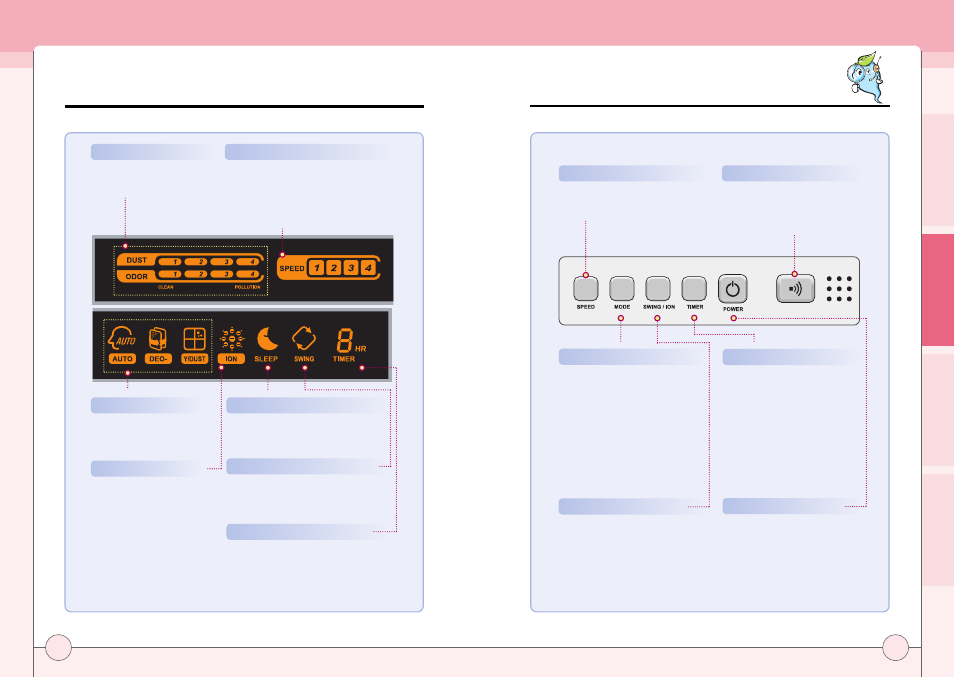

Display Panel Control Panel
Caution
How to Use
Self Diagnosis
Customer Service
Pollution Level Indication Lamp
It displays indoor pollution level
measured by dual pollution
detection center on real-time basis.
Mode Indication Lamp
It indicates the current operation
mode. Operation mode can be
selected by using various mode
buttons.
Sleep Mode Indication Lamp
This lamp indicates the sleep mode operation
of air purifier during nighttime. Sleep mode
can be selected with switch setting.
Overall Circulation Indication Lamp
Evenly providing pure air to the indoor space,
this function rapidly reduces pollution level.
This function can be selected with circulation/
anion button.
Operation Preset Indication Lamp
When operation preset button is pressed, operation
preset indication lamp is automatically lighted and
operation time can be prearranged per each hour from
1 to 8 hours. When air purifier begins operating, the
operation preset indication lamp indicates reduction of
the preset operation time by 1 hour.
Anion Indication Lamp
Anion indication lamp is turned
on together with the operation of
air purifier. It indicates the
discharge of anion together with
purified air.
Fan Speed Indication Lamp
It display fan speed in 1~4 levels. In automatic
operation mode (including yellow dust mode and
deodorization mode), fan speed is automatically
controlled in accordance with indoor pollution level.
In manual mode, pan speed can be selected by
pressing speed selection button.
▶
▶ ▶
▶ ▶
▶
▶
SPEED Selection Button
Pressing airflow selection button, airflow
is controlled in 4 levels in the order of
level 1
→ level 2 → level 3 → level 4.
Mode Selection Button
Mode selection button is used when
making mode selections. Pressing power
button, product is operated in automatic
mode. Also, in accordance with the
pollution level detection by dual pollution
detection sensor, the airflow is
automatically controlled. Pressing mode
button, selection is made out of the three
modes in the order of automatic
→
deodorizing → yellow dust.
(When in automatic mode, airflow
selection cannot be made.)
SWING / ION Button
Pressing circulation/anion button, airflow
is changed as the swing grill at the back
of the product rotates in forward/
backward movement. Also, when
pressed for 2 or more seconds, the
circulation/anion button either selects or
clears the anion function.
TIMER Button
Pressing operation preset button,
product run can be prearranged per
each hour from 1 to 8 hours.
Power Button
Start/stop of air purifier can be
selected.
Light Detection Sensor (CDS)
When light detection sensor (CDS)
detects light in the surrounding area,
the operation mode is automatically
converted to nighttime noise-controlled
operation mode.
▶
▶ ▶
▶ ▶
▶
