TX630 Instruction Manual Page 3

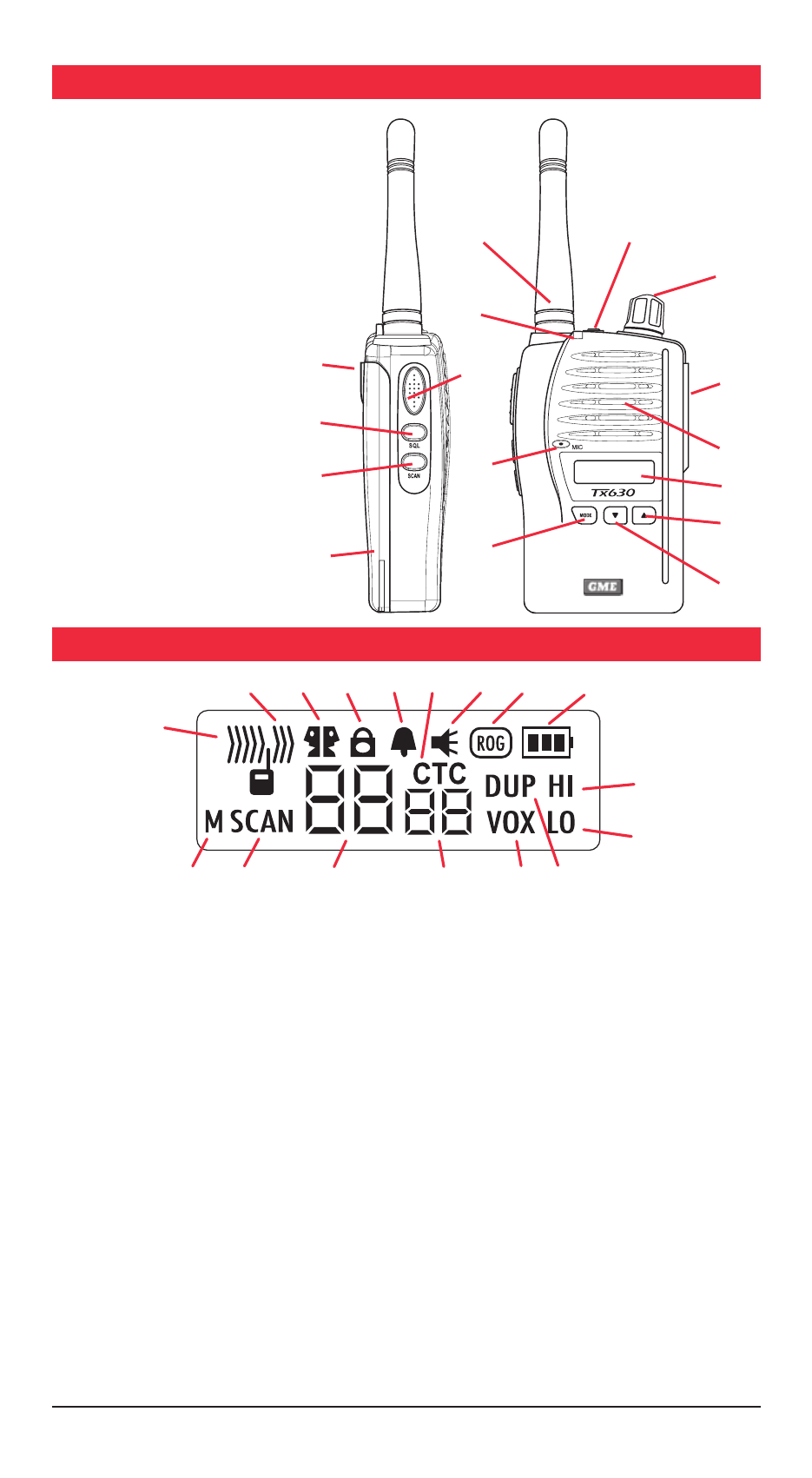

1. Battery.
Scan.
3. Squelch/CTCSS Key.
4. Battery Release Clip.
5. Push-To-Talk (PTT) Switch.
6. Mode Key.
7. Microphone.
8. Indicator LED.
9. Antenna.
10. Duplex/Keylock Button.
11. Volume On/Off.
1. External Speaker/Mic.
13. Speaker.
14. LCD Display.
15. Channel Up.
16. Channel Down.
1. receiver Busy icon: Appears when receiving.
2. transmit icon: Appears when transmitting.
3. Dual Watch icon. Appears when the Dual
Watch mode is Active.
4. Key Lock icon: Appears when the keypad
is locked.
5. Button Beep tone icon: Appears when the
button beep confirmation tone is selected.
6. CtCSS (CtC) icon: Indicates that CTCSS tones
are enabled on the selected channel.
7. Squelch/monitor icon: Appears when the
Monitor function is activated. (Squelch is
open)
8. roger-Beep tone icon: Appears when the
Roger-Beep tone is enabled.
9. Battery Level icon. Indicates battery charge
level. Flashes when battery is almost empty.
10. High Power icon. Appears when High
transmitter power is selected.
11. Low Power icon. Appears when Low
transmitter power is selected.
12. Duplex icon: Indicates that Duplex
communication has been enabled.
13. Voice activated transmission (VoX) icon:
Appears when the VOX mode is activated.
14. CtCSS tone: Displays the selected CTCSS
tone (from 00 - 38) on the selected channel.
15. Channel Display: Indicates the channel
number in use.
16. Scan indicator icon: Appears when SCAN
is enabled and the radio is scanning .
17. Channel memory indicator: Appears when
selected channel is stored in Scan Memory.
ControLS
2
1
16 17 15 14 13 12
11
10
3 4 5 6 7 8 9
LCD inDiCatorS
4
3
2
1
9
8
7
6
10
11
12
13
14
15
16
5
