the G-DEK multimedia hub can be mounted nearby or installed
in a separate location inside the cabin using an extension lead.
the cover on the multimedia hub should remain accessible to
allow access for connecting your MP3 music source via iPod/
iPhone, uSB memory stick, SD card or generic MP3 player.
mountinG tHe remote Head
the G-DEK remote head can be neatly flush mounted on
a bulkhead or gimbal mounted using the gimbal brackets
supplied. the G-DEK rremote head is supplied with a cabin
cover. When the G-DEK is not in use the cabin cover should be
fitted to protect it from the elements.

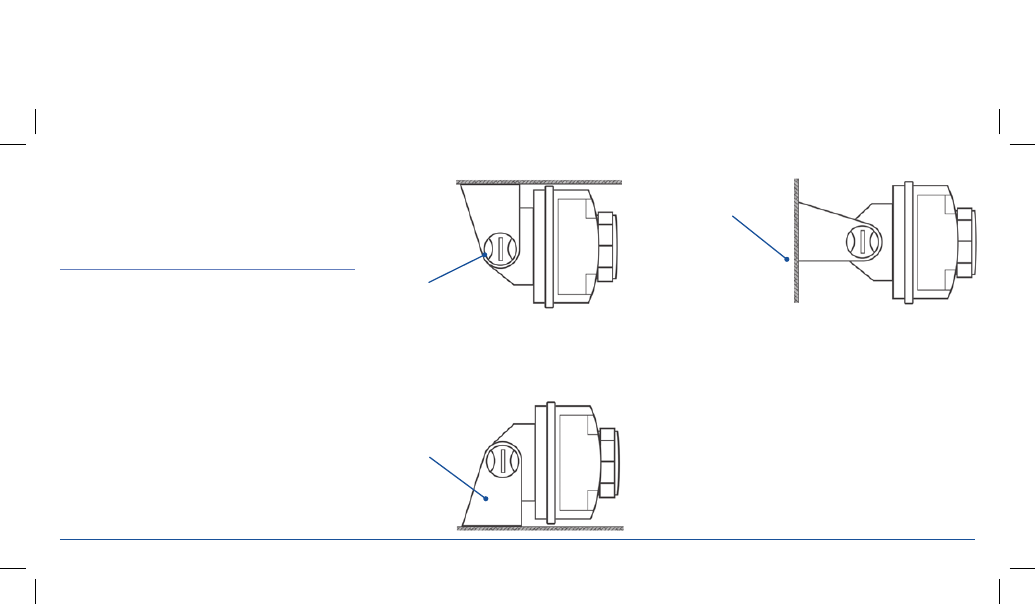

Gimbal mounting
the gimbal mount can be used to mount the remote head
above or below a shelf. it can also be used to mount the remote
head on flat surface or vertical bulkhead where flush mounting
is not possible due to limited access behind the bulkhead.
above sHelF
under sHelF
vertiCal bulKHead
1. Fit the two gimbal mounts to the rear of the remote head
using the screws provided.
2. temporarily fit the remote head assembly to the mounting
bracket and position the assembly in the desired location.
3. using the mounting bracket as a template, mark the location
of the mounting screws.
4. remove the bracket, drill the holes and screw the bracket
into place.
5. refit the remote head to the mounting bracket using the
gimbal knobs. adjust the remote head to the desired
viewing angle and tighten the gimbals.
Gimbal Knob
mounting surface
mounting bracket
