6-67

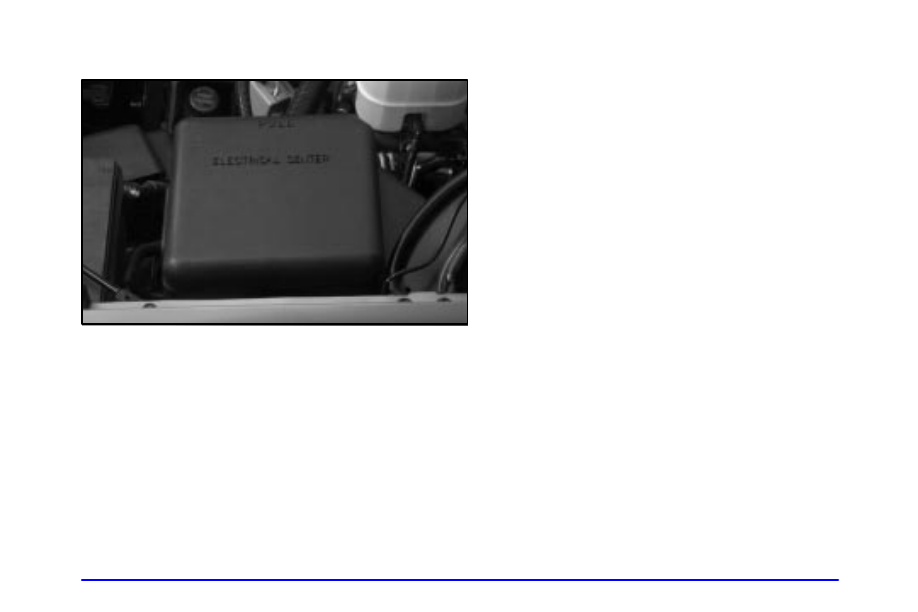

Underhood Electrical Center

The underhood electrical center is located on the
driver’s side of the engine compartment near the battery.
Lift the cover for access to the fuse/relay block.

You can remove fuses with a fuse extractor. The fuse
extractor is located in the underhood electrical center. To
remove fuses if you don’t have a fuse extractor, hold the
end of the fuse between your thumb and index finger
and pull straight out.
