5-21
The equipment you’ll need is behind the
passenger’s seat.
1. If there is a cover, move the seats forward and turn
the wing nut on the cover counterclockwise to
remove it.
2. The wheel blocks and the wheel block retainer
can be removed by turning the wing
nut counterclockwise.
3. To release the bottle jack from it’s holder, turn the
knob on the bottle jack counterclockwise to lower
the jack head slightly.
4. There is also a wing nut used to retain the storage
bag and tools. To remove it, turn the wing
nut counterclockwise.

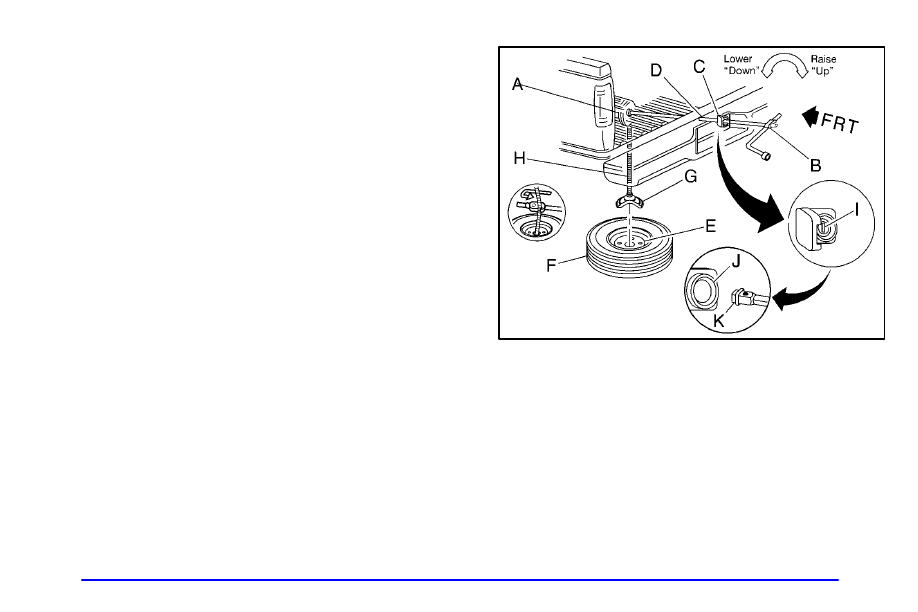

You’ll use the jack handle and the wheel wrench to
remove the underbody
- mounted spare tire.
A. Hoist Assembly
B. Wheel Wrench
C. Extensions
D. Hoist Shaft
E. Valve Stem,
Pointed Down
F. Spare Tire
G. Tire Retainer
H. Hoist Cable
I. Hoist Lock
J. Hoist Shaft
Access Hole
K. Hoist End
