Trailer Wiring Harness

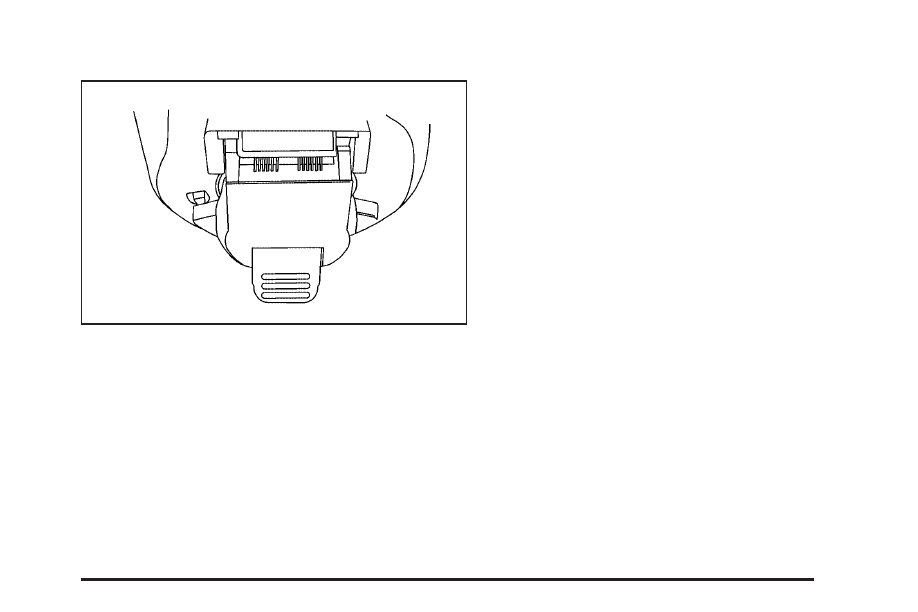

Your vehicle may be equipped with the seven-wire
trailer towing harness. This harness has a
seven-pin universal heavy-duty trailer connector
(if equipped with the trailering package) that is
attached to a bracket on the hitch platform. If your
vehicle is not equipped with the heavy-duty trailer
connector, you may purchase one from your dealer.
The seven-wire harness contains the following
trailer circuits:
• Yellow: Left Stop/Turn Signal
• Dark Green: Right Stop/Turn Signal
• Brown: Running Lamps
• White: Ground
• Light Green: Back-up Lamps
• Red: Battery Feed
• Dark Blue: Electric Brakes
If you need to tow a light-duty trailer with a
standard four-way round pin connector, an adapter
connector is available from your dealer.
If you are charging a remote (non-vehicle) battery,
turn on the headlamps to boost the vehicle
system voltage and properly charge the battery.
Your vehicle may also be equipped with wiring for
an electric trailer brake controller. These wires
are located inside the vehicle on the driver’s side
under the instrument panel. These wires should
be connected to an electric trailer brake controller
by your dealer or a qualified service center.
