CONNECTIONS
About component video TV as the center speaker
Connecting your video equipment using component video (the
green, blue and red connectors marked Y, Pb and Pr) will
provide the best video quality. However this is only possible if
both your monitor/TV and the source appliance support
component video.
Notes:- The receiver cannot convert different video signals.
E.g. if an S-video input signal is provided it is not
possible to make the component video connection to
the monitor/JV; in this case an S-video connection to
the monitor/TV has to be made.
- Check if the monitor/TV is able to display the
specific video signal that the video source provides.
If it does not, look for options on the monItor/TV or
video source to change the signal type or use the
S-video or cinch connection.
Power
The type plate is located on the rear of the receiver.
1 Check whether the power voltage as shown on the type
plate corresponds to your local power voltage. If it does
not, consult your dealer or service organization.
2 Connect the power cord to the power outlet.
To disconnect the unit from the power completely, remove the
power plug from the power outlet.

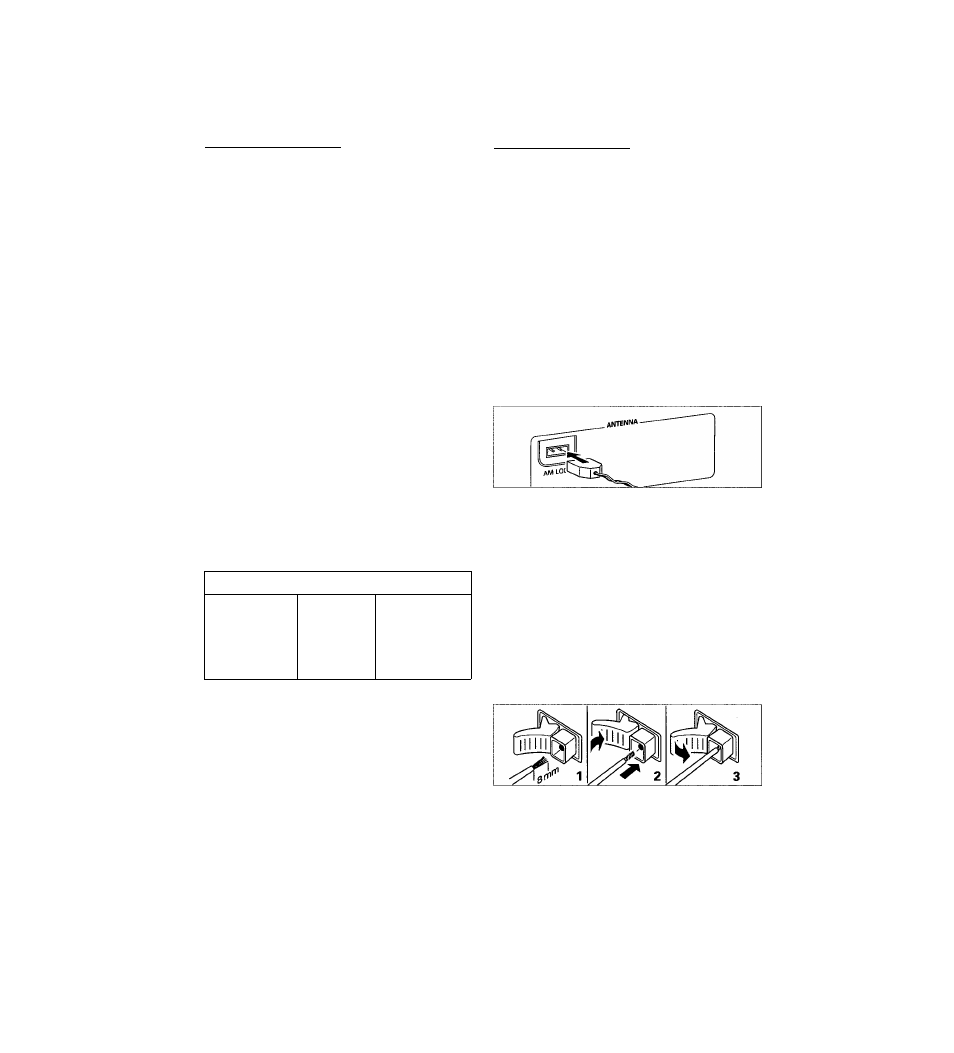

Speaker coanections
6^
1 ! 3
1 Always connect the colored (or marked) wire to the colored
terminal and the black (or unmarked) wire to the black
terminal.
2 Connect:
- Left front speaker to L (red and black)
- Right front speaker to R (red and black)
- Center speaker to CENTER (blue and black)
- Left surround speaker to SURROUND L (grey and black)
- Right surround speaker to SURROUND R (grey and black)
You may use your Philips TV with CINEMA LINK as the center
speaker. For TV's with cinch connectors, additional cinch
cables are needed. These cables must be connected to the
blue CENTER PRE-OUT connector on the back. Look into the
instruction manual of your TV on how to use it as the center
speaker.
M
Antenna connections
AM (MW) antenna
The loop antenna supplied is for indoor use only. Position the
antenna as far away as possible from the receiver, a TV, the
cables, a DVD player, a VCR and other radiation sources.
1 Fit the plug of the frame antenna to AM LOOP as shown below.
2 Turn the antenna for optimum reception.
FM antenna
The wire antenna supplied can be used only to receive nearby
stations. For better reception we recommend using a cable
antenna system or an outdoor antenna.
1 Open the FM 300 Q click-fits by pushing the lever down as
shown below.
2 Insert each wire of the antenna into one hole.
3 Close the click-fits using the lever.
4 Move the antenna in different positions for optimum reception.
The unit complies with the FCC-Hules, Part 15.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
