Futaba DT1 Tach - Manual (Page 2)

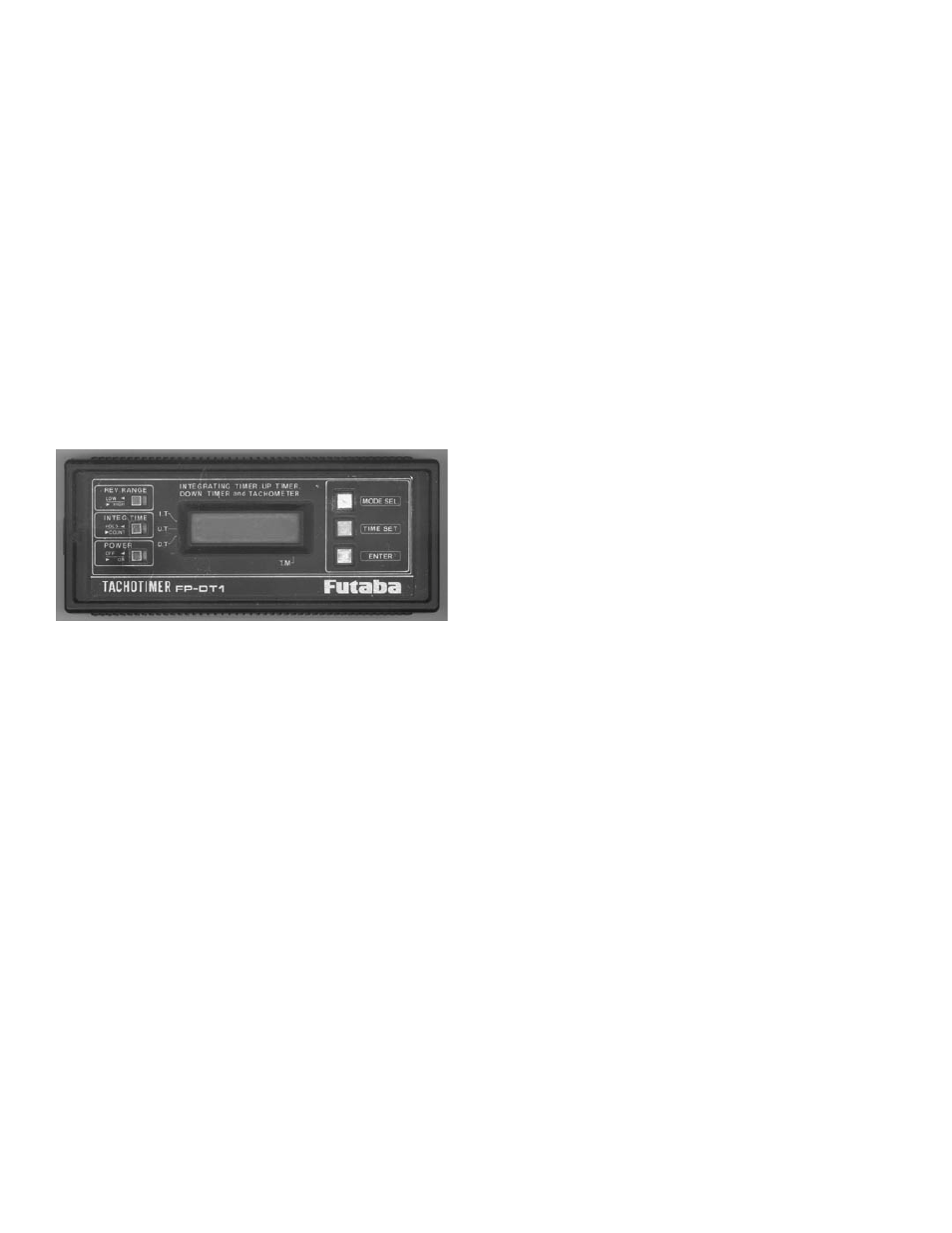

NOMENCLATURE AND FUNCTIONS:
ON THE LEFT SIDE:
•
REV RANGE switch selects RPM range
o Low Range: 100-30,000 RPM
•
Error +/- 100 RPM
o High Range: 100 to 60,000 RPM
•
Error +/- 200 RPM
•
INTEG TIME switch
o starts (COUNT) and stops (HOLD)
•
POWER switch
ON THE RIGHT SIDE
•
MODE SEL push button scrolls through and
selects:
o INTEGRATING TIMER
o UP TIMER
o DOWN TIMER
o TACHOMETER
o Press MODE again to return to
INTEGRATING TIMER.
•
TIME SET switch sets the alarm time when
used as an UP or DOWN timer. Steps in one
minute steps each time pressed. Set in five
minute steps when pressed and held
continuously for 2+ seconds. (Alarm begins
to beep 10 seconds before the set time. The
elapsed time is indicated by a beep every
minute.)
•
ENTER switch.
o View UP and DOWN timer’s
memory, start, stop, clear timers.
CENTER:
•
MODE DISPLAY
o Arrow indicates mode selected. Arrow blinks when counting
and stops blinking when stopped.
