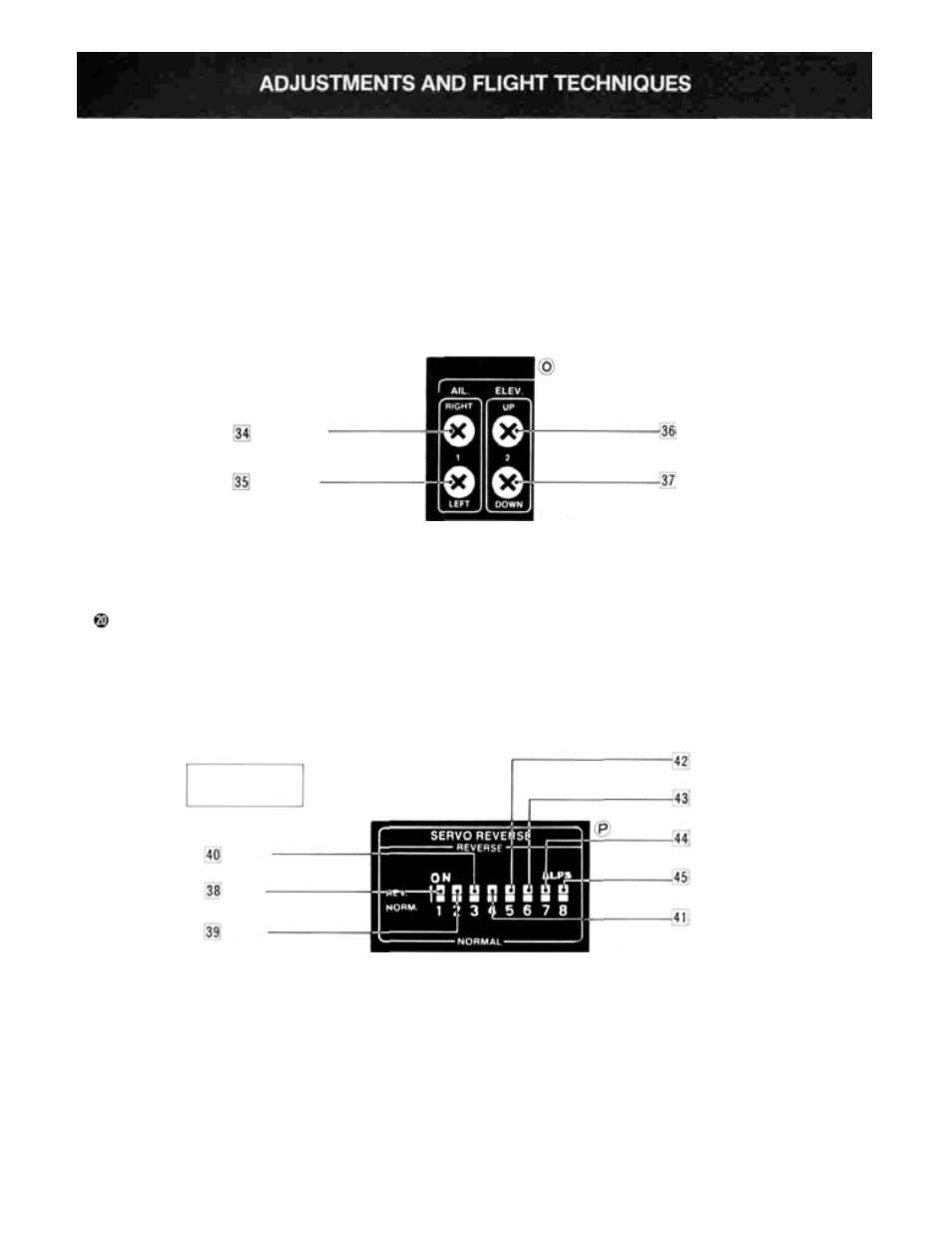

•2ND ATV (CONVENTIONAL)

2ND ATV is available on the aileron and elevator
channels. This is the conventional type ATV and is
set using trimmers [34], [35]. [36], and [37] on the
transmitter back panel.
Servo movement can be adjusted from 0 to 100%.
These adjustments are retained even if the trans-
mitter battery reaches a full discharge state (Mem-
ory ATV settings are not.).

When the ATV trimmer is turned clockwise, the
steering angle increases. When the ATV trimmer is

turned counterclockwise, the steering angle de-

creases. The steering angle can be adjusted from 0
to 100%.

Aileron right-

Aileron left-

Elevator up

Elevator down

Fig. 34

•SERVO REVERSING SWITCHES

These switches reverse the direction of rotation of
the servos. They are convenient when connecting
the linkage.

NORM: Forward
REV:

Reverse

Throttle

CH5 switch channel

Flaps

Spoiler

Pitch control

Rudder

Aileron

Elevator

Fig. 35
