Page 12: Connection example

11
INSTALLATION AND ADJUSTMENT
This section describes the installation method and adjustment method after installa-
tion when installing the receiver, servos, etc. to the plane.
Connections

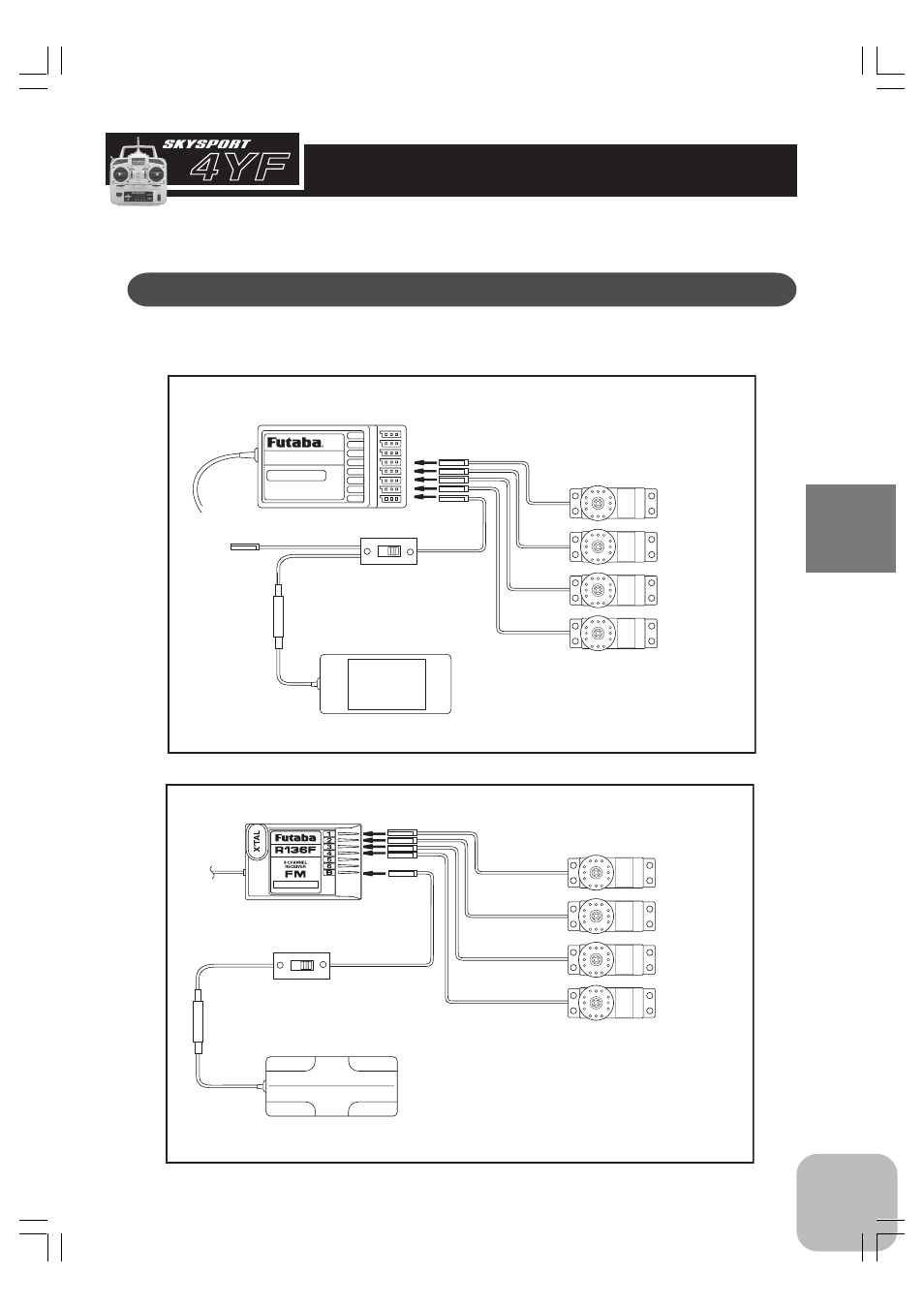

Connection example is shown below.
I
NSTALLATION
AND
A
DJUSTMENT
Receiver switch
Connection Example
Receiver R127DF
Aileron
(CH1)
Elevator
(CH2)
Throttle
(CH3)
Rudder
(CH4)
Nicd battery
*The number of servos depends
on the set.
7
6
5
4
3
2
1
B
Dual Conversion
FP-R127DF
FM
7CHANNEL
RECIVER
Connection Example
Receiver
R136F
Aileron
(CH1)
Elevator
(CH2)
Throttle
(CH3)
Rudder
(CH4)
Receiver switch
Receiver battery holder
*Insert four batteries.
*When using 5 or more servos,
use the nicd battery sold separately.
*The number of servos depends
on the set.
