Fredenstein Bento 10D Module Carrier

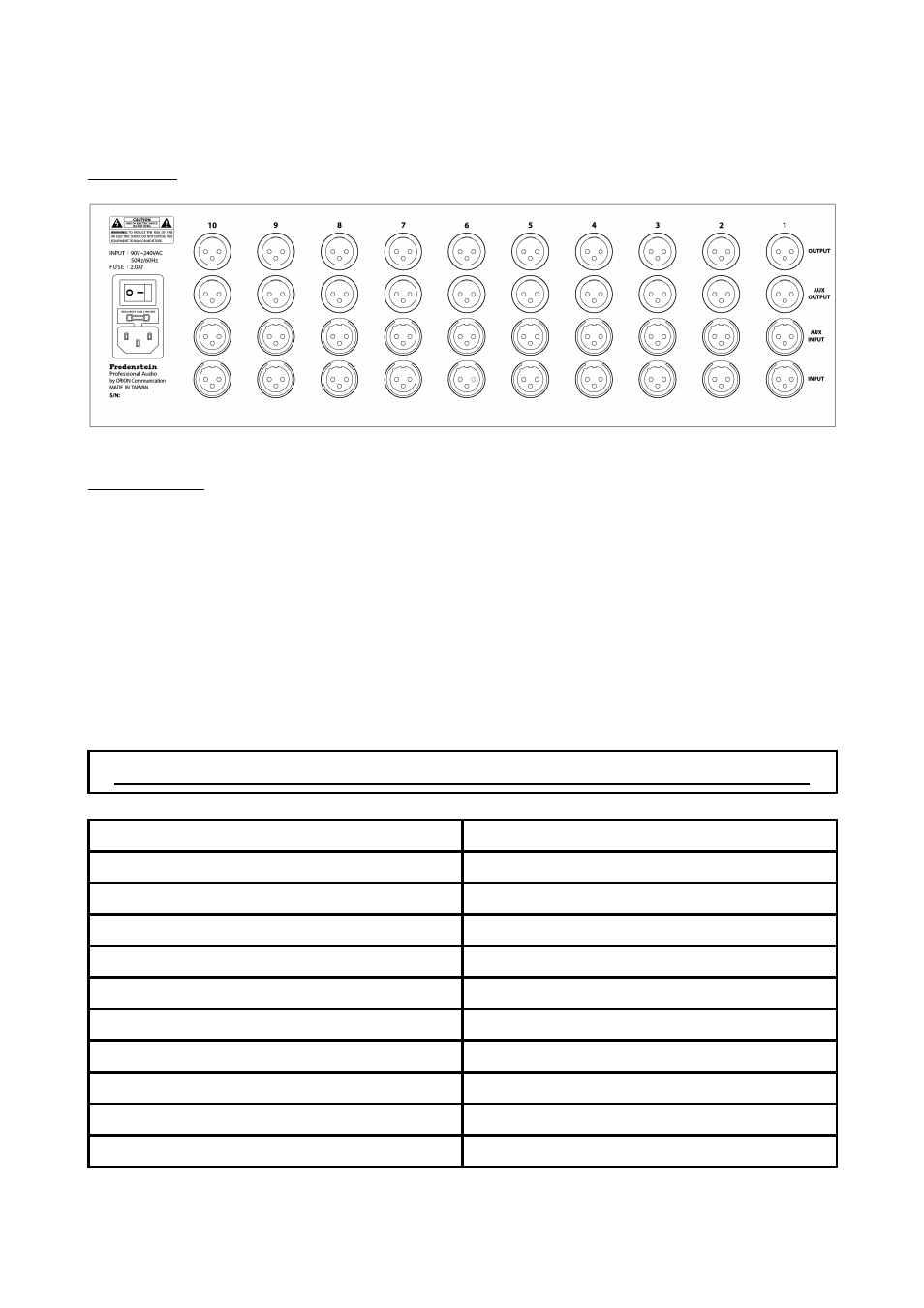

Rear View:
Specifications:
Input Voltage: 90V AC to 240V AC, 50 to 60 Hz
Output Voltages: +16V DC 3.2A
-16V DC 3.2A
+48V DC 0.3A
Power Consumption: max. 150W
Dimension (LxHxD): 480mm x 140mm x 190mm
Weight:
4.5kg(NW) ; 6.0kg(GW)
Fredenstein Bento 10D Module Connector Pin Description
Solder Side
Pin Number Signal
Pin 1 Frame Ground
Pin 2 Main Out +
Pin 3 AUX Out +
Pin 4 Main Out -
Pin 5 Audio Ground
Pin 6 Compressor Buss
Pin 7 AUX Out -
Pin 8 Main In -
Pin 9 AUX In -
Pin 10 Main In +
