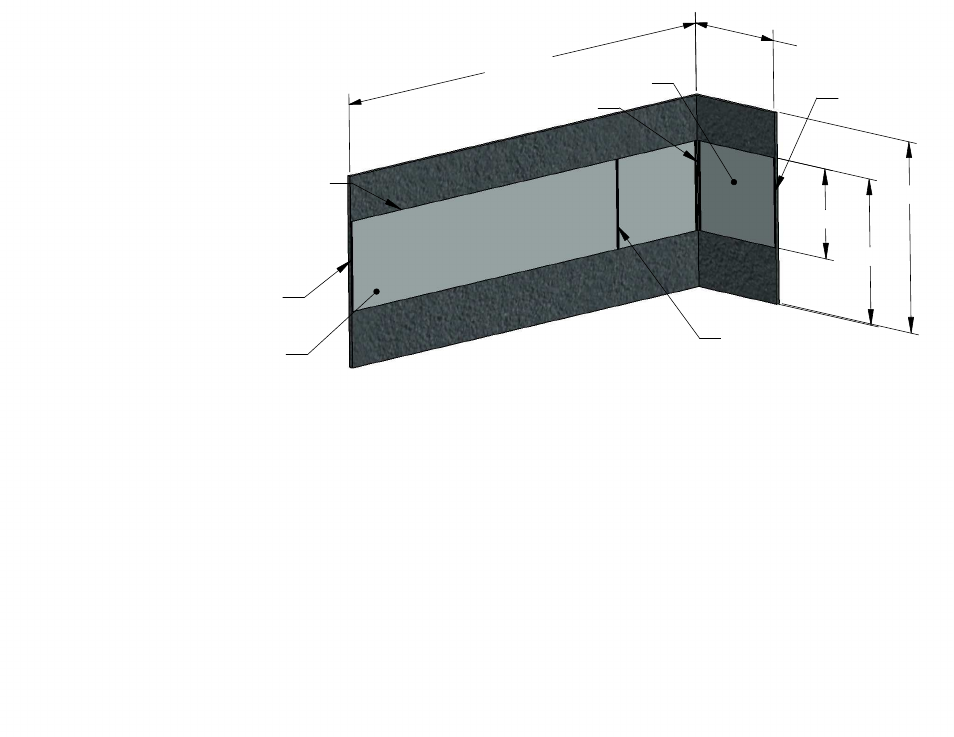

Top of back splash
J63-1451 End Cap
is covered by the hood.
Inside Corner
Back Splash
J63-1451 End Cap
Side Splash
J64-1450 Divider Bars
48.000
102.000
58.000
250.000
80.000
# OF DIVIDER BARS = TOTAL DIVIDER BAR LENGTH / 84 + 1 (round up).
Backsplash - Horizontal Installation
•
Example (above): Total required end cap length = (2-1) x 48 = 48. # of Divider bars = 48 / 84 + 1 = 1.571 = 2 pc. •
Calculating # Of End Caps - Part # J63-1451:
TOTAL REQUIRED END CAP LENGTH = HEIGHT X 2. •
# OF END CAPS = TOTAL REQUIRED END CAP LENGTH / 84 + 1 (round up). •
Example (above): Total required end cap length = 48 X 2 = 96. # of End caps = 96/84 + 1 = 2.143 = 3 pc. •
5. Sidesplash & backsplash calculations are the same.
4. When hoods are ordered end to end, backsplash should be ordered under hood #1.
3. Divider bars (part # J64-1450)are used to cover raw edges between adjacent panels.
2. End caps (part # J63-1451) are used to cover raw edges on ends of backsplash sections.
1. Backsplash may be installed horizontally when the specified width is 48" or less .
Ordering Notes:
•
panel @ 192 and 1 panel @ 57-15/16.
Equal Panel Length Option: # OF PANELS (ROUND UP) = TOTAL LENGTH / L (L = Max Panel Length*). INDIVIDUAL PANEL LENGTH (NON-INSULATED) =
(TOTAL SECTION LENGTH - 1/16 x (# OF PANELS - 1)) / # OF PANELS. INDIVIDUAL PANEL LENGTH (INSULATED) = TOTAL SECTION LENGTH / # OF PANELS.
•
Calculating Back & Side Splash:
# OF FULL PANELS = TOTAL SECTION LENGTH / L, (L = Max Panel Length*) •
LAST PANEL LENGTH = REMAINDER x L (for non-insulated backsplash, subtract 1/16" x #of divider bars from length of last panel to compensate for •
divider bar width).
If length of last panel is less than 20", transfer 12" from second to last panel to last panel. Transfer additional 6" if last panel is still less than 20".
•
Example (above): # of Full panels = 250 / 192 = 1.302 = 1 (round down). Last panel length = 0.302 x 192 - 1/16 = 57-15/16. Panel lengths will be 1
Calculating # Of Divider Bars - Part # J64-1450:
TOTAL REQUIRED DIVIDER BAR LENGTH = (# OF PANELS - 1) x HEIGHT. •
*MAX PANEL SIZE FOR HORIZONTAL BACK SPLASH
Uninsulated = 48" X 192"
1" Insulated = 46" X 189"
3" Insulated = 42" X 185"
