...the right weigh
FLINTEC
Page 2 Manual LAC 65.1
FLINTEC
LAC 65.1
Int.PWR.ON
5
10 20 40 80
160 320 0-3 2,5
5
10 20 40 +/- 1-2
2 4 8
16 32
0-20/4-20
mA
Overflow
-/+
Rel.Gain(x)
SET SPAN % of FS-in
SET ZERO
(ms)
L-P-FILTER
t
OFF
ON
1A SUPPLY PWR.
12-24 VDC 3W
Galvanically isolated
V 2,5V 425Hz <60mA EX
Load Cells OUTPUTS
+/-10V 20mA
+ + 0 0 + + + - - - Vo Io
Exc Sen Sig Sig Sen Exc
PLC and/or
computer with
analogue input
Load cells
6-wire
connection
;
PLC
system
Silo Nr.: 1
Netto : 17285 kg
Tara : 1458 kg
Power supply
-----------------------
12...24 V DC

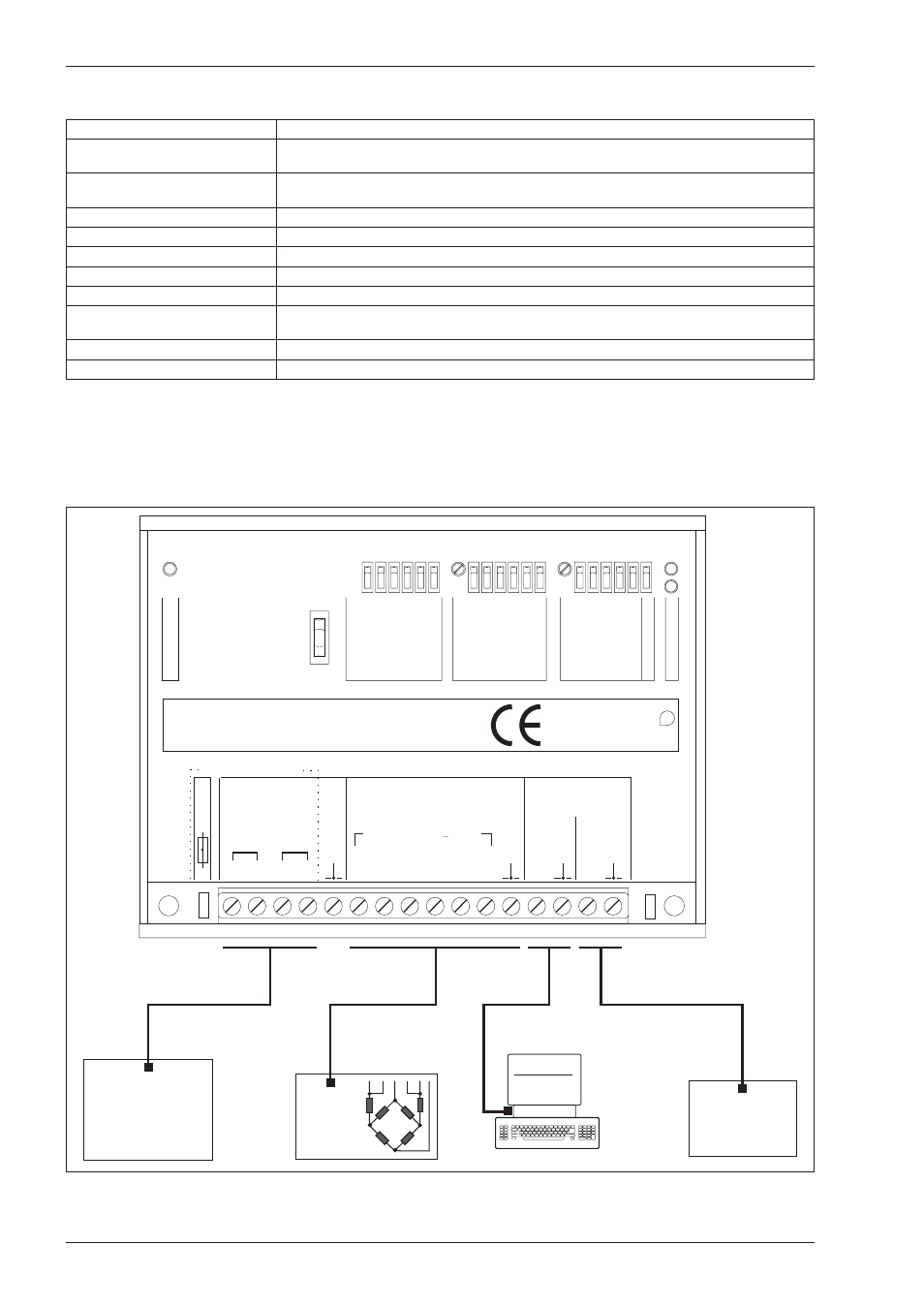

System Configuration
Linearity < 0.01 %
Analogue input range
± 0.17 mV/V to 3.3 mV/V, gain adjustment by DIP switches and fine trimming
potentiometer
Excitation
2.5 V AC 425 Hz, for up to 8 off 350 Ohm load cells
active sense for cable length up to 100 m
Zero adjustment (Offset) ±80%, zero adjustment by DIP switches and fine trimming potentiometer
Current output 0 ... 20 mA or 4 ... 20 mA, R
load
³
500 Ohm
Voltage output 0 ... ±10 V, R
load
³
500 Ohm
Active filtering 40 dB / decade 0.25; 0,5; 1; 2; 4; 8; 16; 32 Hz selectable
Temperature range –20 °C to +50 °C, storage –20 °C to +60 °C
Temperature effects
on zero 30 ppm/°K
on span 15 ppm/°K
Housing 114 x 78 x 16 mm, protection IP40, for standard 35 mm DIN-rail mounting
Power supply 12 … 24 V DC +10 / –15%, C, 3 W max., galvanically isolated
All dimensions in mm. Dimensions and specifications are subject to change without notice.
LAC 65.1 Specifications
