IMPORTANT INSTALLATION NOTES
The enclosure must be connected to Protective Earth. This is vital for safe
operation. Failure to observe correct grounding may cause serious injury or
death. Grounding is further vital for full CE-compliance and must be
provided for correct operation.
Disconnect power when servicing the display

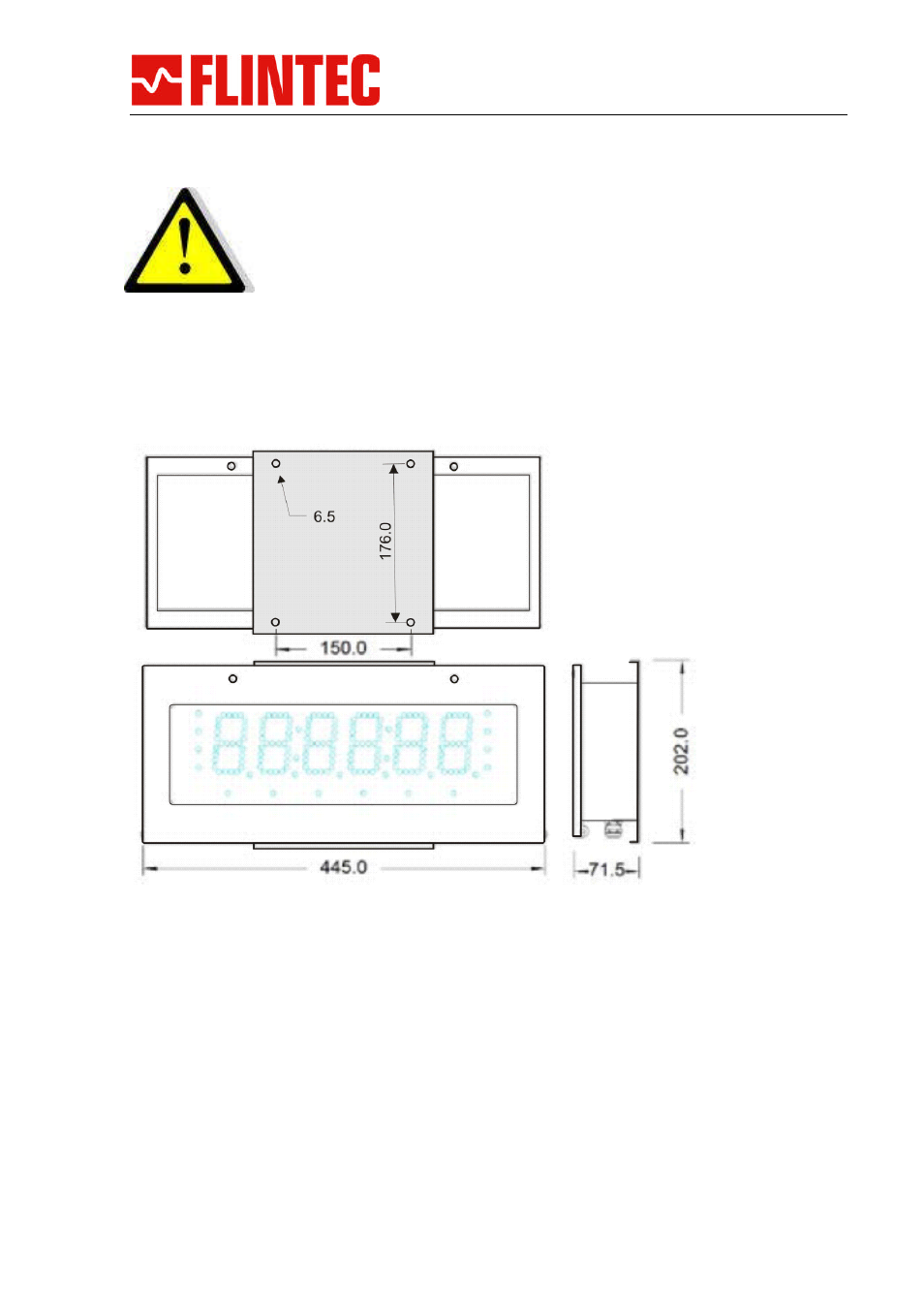

DIMENSIONS in metric millimeters
MECHANICAL MOUNTING
Open the front lid using a Torx TX-20 screwdriver. Internal screws are Torx TX-15 and
Philips/flat for power supply terminals.
When mounting the display, use as large as possible bolts for fixing to a rigid flat surface. If
mounting to a pole, adjust the pole flaps for a best fit to the actual pole and then tighten the
band pipe clamps (option) thoroughly. If possible tilt the display downwards and direct
toward the reader to maximize legibility. Tilting the display decreases reflections and
improves contrast. Sun hood is normally not needed.
