Amp/Color Items Fused
11 10 Amp/Red Air Conditioning (A/C)
12 15 Amp/Blue Stop Lights
13 20 Amp/
Yellow Fuel Pump/Auto Shut
Down (ASD)
14 15 Amp/Blue Horn
15 20 Amp/
Yellow Electronic Automatic
Transaxle (ETAX)
16 15 Amp/Blue Hi Beam
17 20 Amp/
Yellow IOD
18 15 Amp/Blue Hazard Flasher
19 20 Amp/
Yellow Power Outlet
20 Spare
21 20 Amp/
Yellow Fog Lights (Build-Up Ex-
port Only)
22 Spare
Interior Fuses

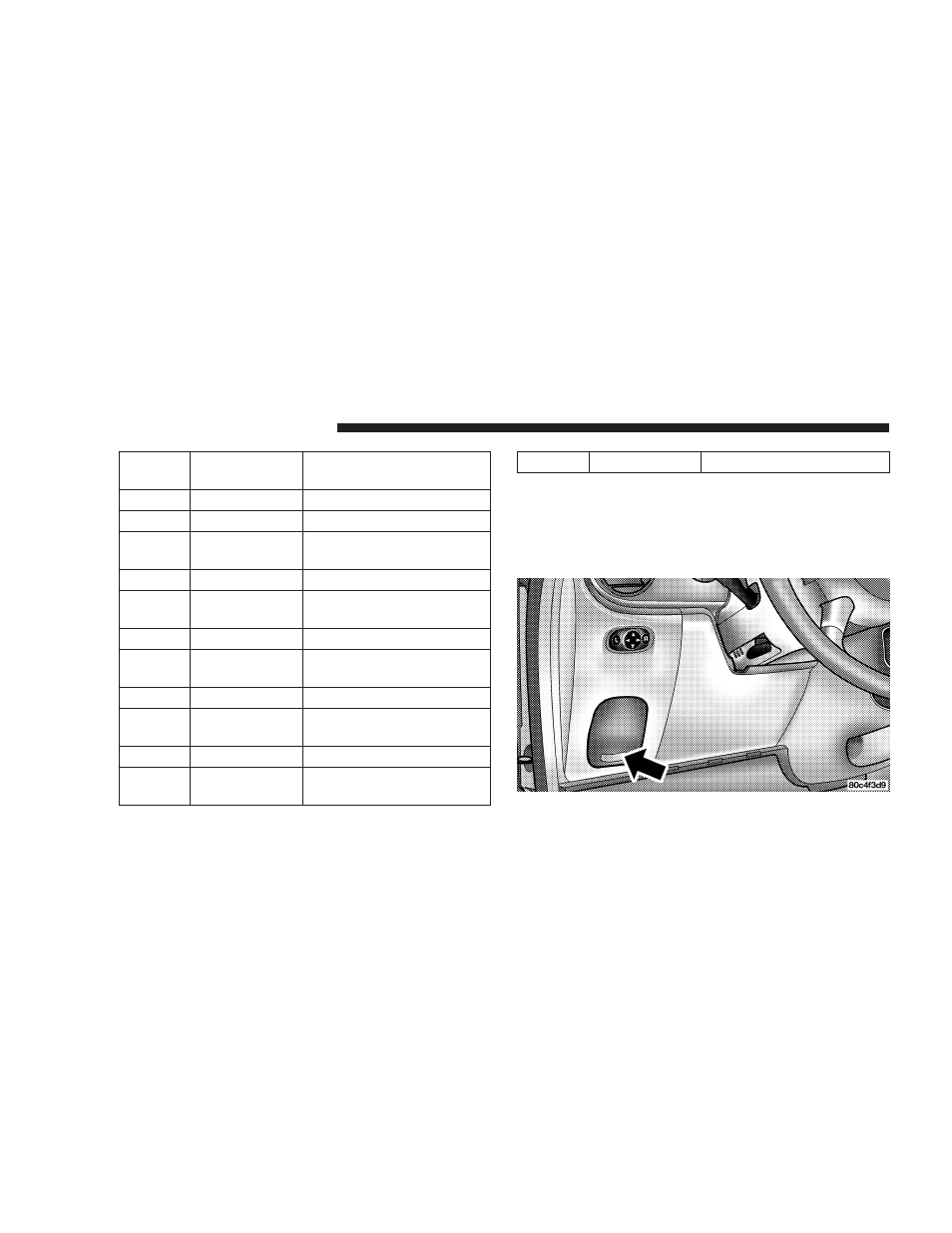

The fuse access panel is on the left side of the instrument
panel next to the steering column. To remove the panel,
pull it out, as shown. A label identifying the components
and circuits is located on the inside of the cover.
Interior Fuse Panel
