FUSES

Underhood Fuses (Power Distribution Center)
A Power Distribution Center is located in the engine
compartment; next to the air cleaner filter. A label iden-
tifying the components and circuits is located on the
underside of the cover.

MAXI

FUSE

Amp/Color

Items Fused

1

30 Amp/Pink

Ignition Start

2

40 Amp/Green Anti-Lock Brake (ABS)

Pump

3

40 Amp/Green Ignition Run

4

30 Amp/Pink

Heated Seats

5

40 Amp/Green Radiator Fan (Lo Speed

Turbo Only)

6

50 Amp/Red

High Speed Radiator Fan
(Turbo Only)

7

30 Amp/Pink

Anti-Lock Brake (ABS)
Solenoid

8

40 Amp/Green Electric Back Light (EBL)

9

Spare

10

40 Amp/Green IP Fuseblock

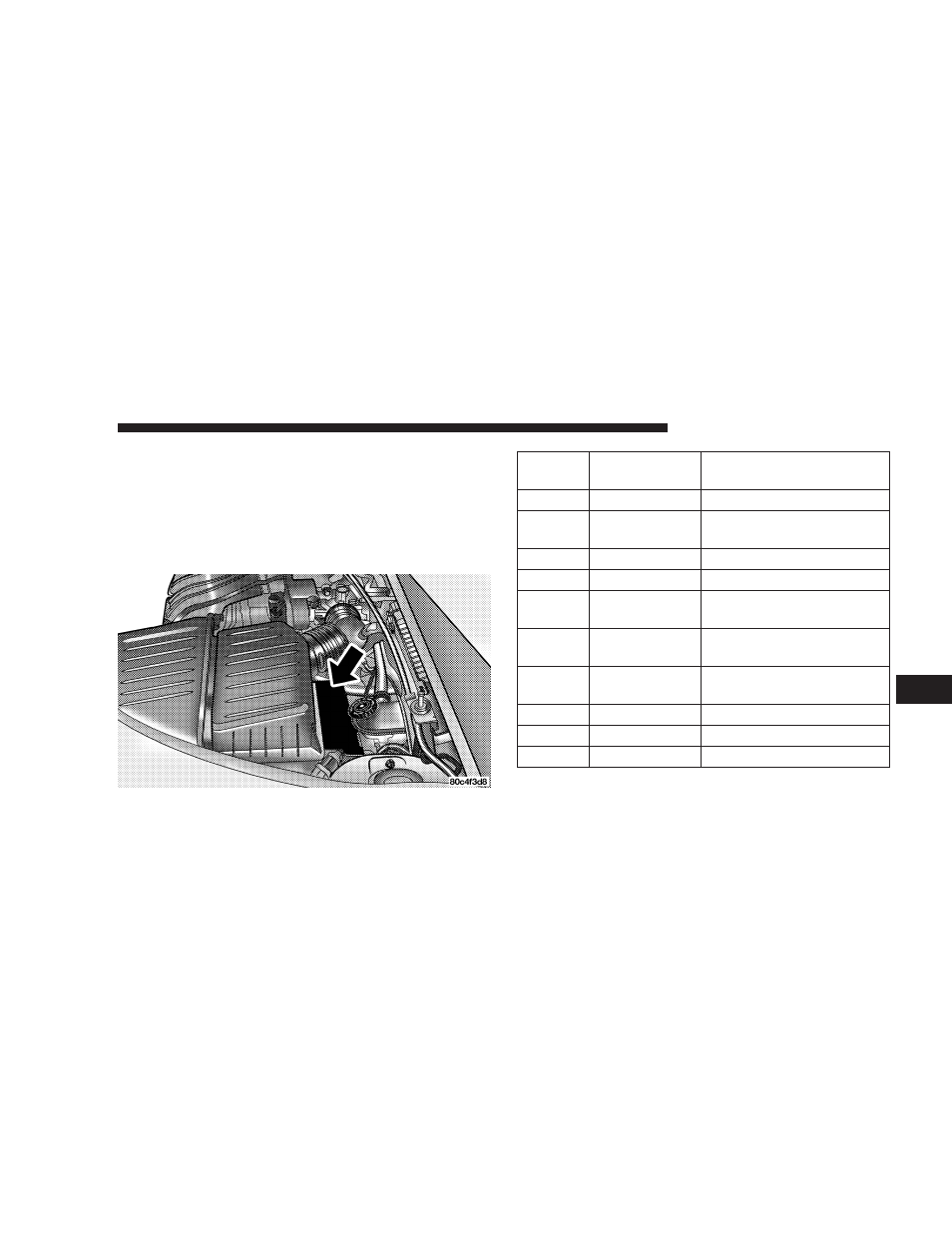

Power Distribution Center Location

MAINTAINING YOUR VEHICLE

303

7
