14

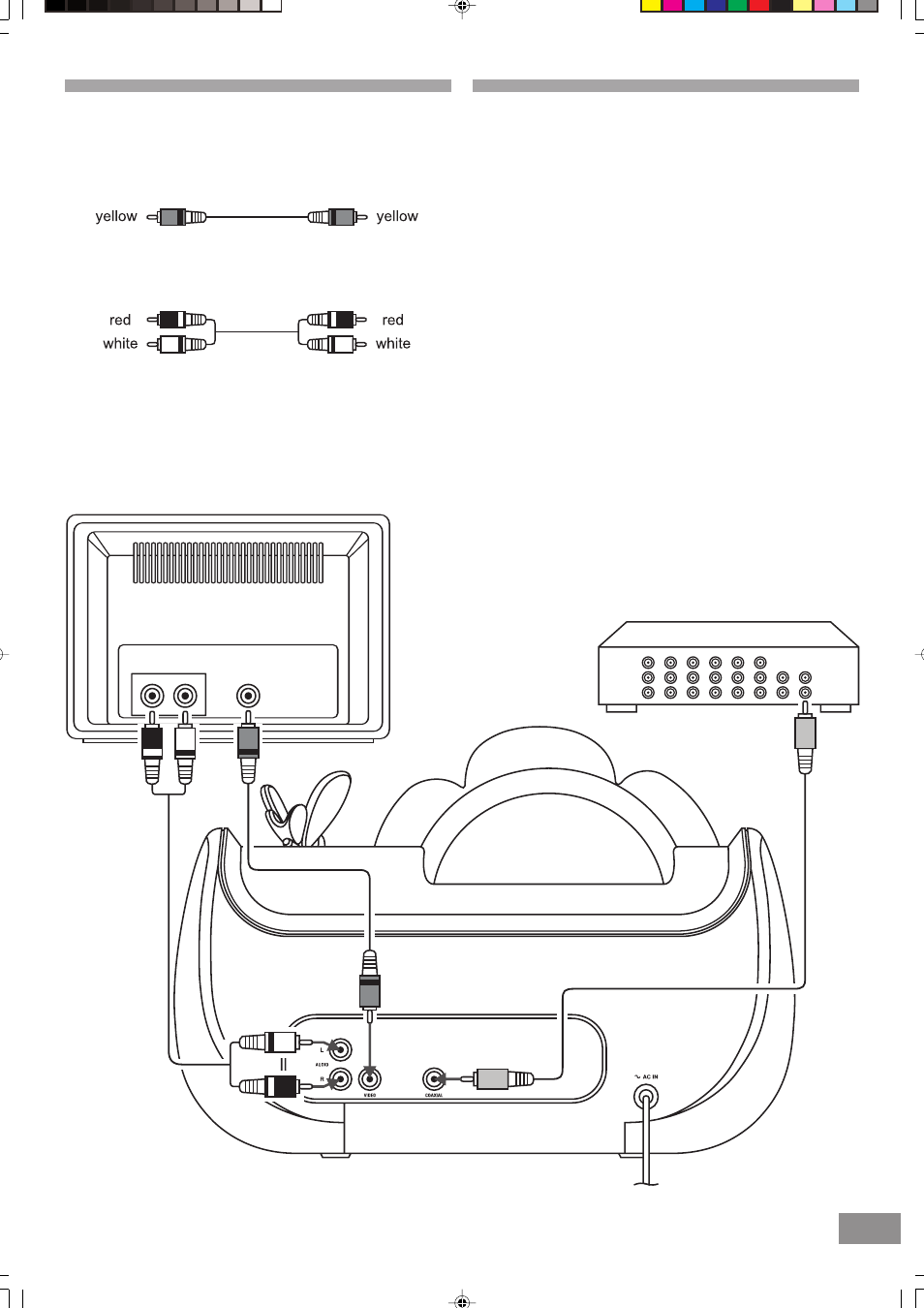

TV and Optional Component
Connections
Required cords
• Video cord for connecting a TV set (included).
• Audio cords (included).
When connecting a cord, be sure to match the color-coded
pins to the appropriate jacks on the components.
Notes:
• TV Connection-Normal (Connection Cable Included):
To view the video from DVD discs on your TV set connect the
Video Out jack of this system to the Video ln jack of your TV
set. The Video jacks are usually colored yellow. Use the
included video cable with yellow plugs on each end.
• TV Connection-Audio (Connection Cables Included):
Connect the Left/Right audio output jacks of your system
to the Left/Right audio input jacks of the TV set.
• External Decoder Connection-Not Required:
The Coaxial Digital Audio output jack allows digital audio
signals to be fed to an external Dolby Digital decoder if
desired. The Coaxial digital audio connection cable is not
included.
Connecting the AC Power Cord
Notes:
• The Power Requirement is: AC 120V, 60Hz.
• Connecting to power other than the one listed above may
damage the system or cause abnormal operation.
• Before connecting the AC power cord of this system to a
wall outlet, connect the speakers and other component
cables to the system.
• Connect the AC power cords of your TV and any optional
connect to a wall outlet.
T V
AUDIO
IN
VIDEO IN
R L
AV Amplifier with a
Dolby Digital Decoder
COAXIAL
IN
