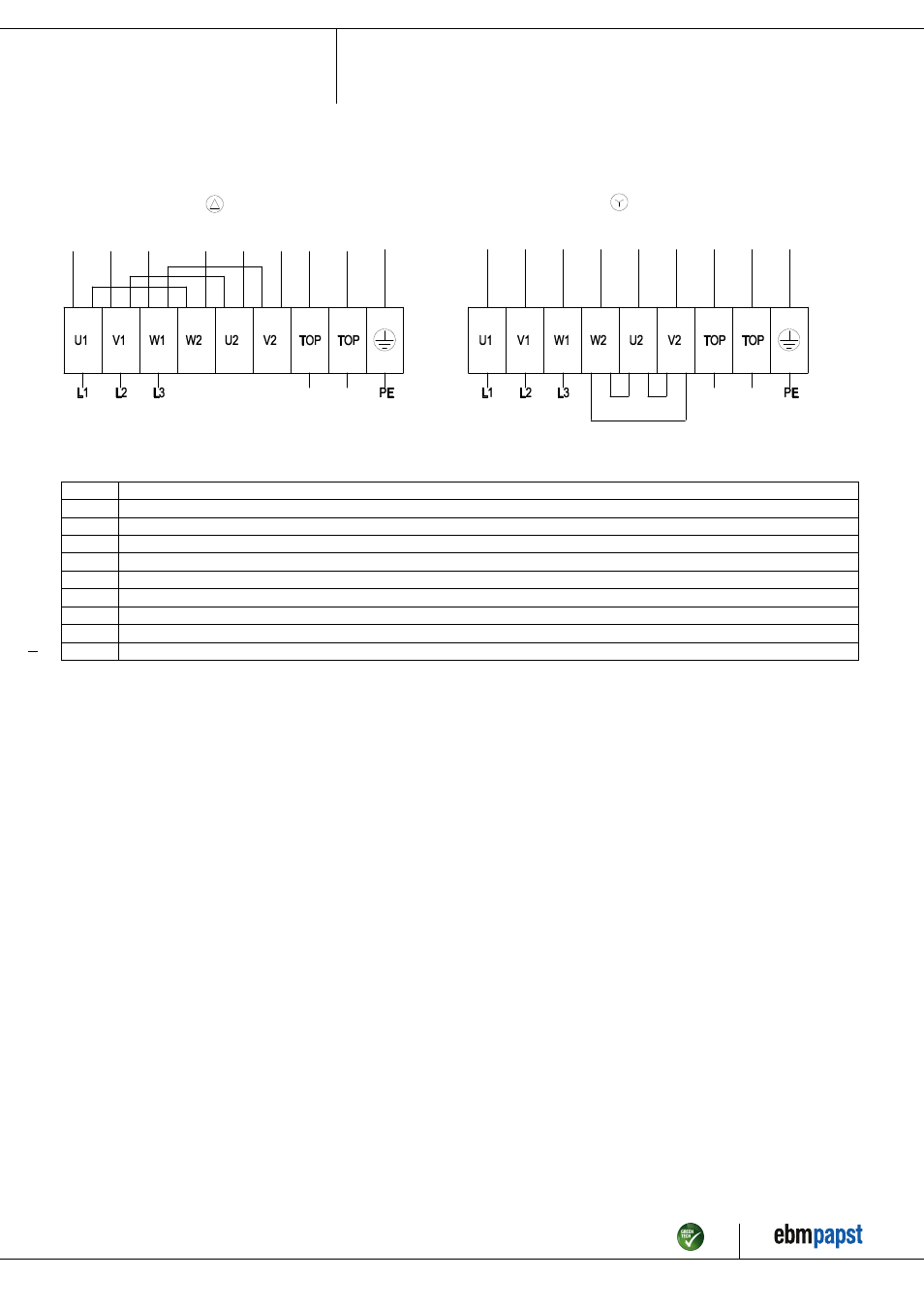

4.4 Connection screen
Δ Delta-connection
Y Star connection
L1 = U1 = black
L2 = V1 = blue
L3 = W1 = brown
W2 yellow
U2 green
V2 white
TOP 2 x grey
PE green / yellow
