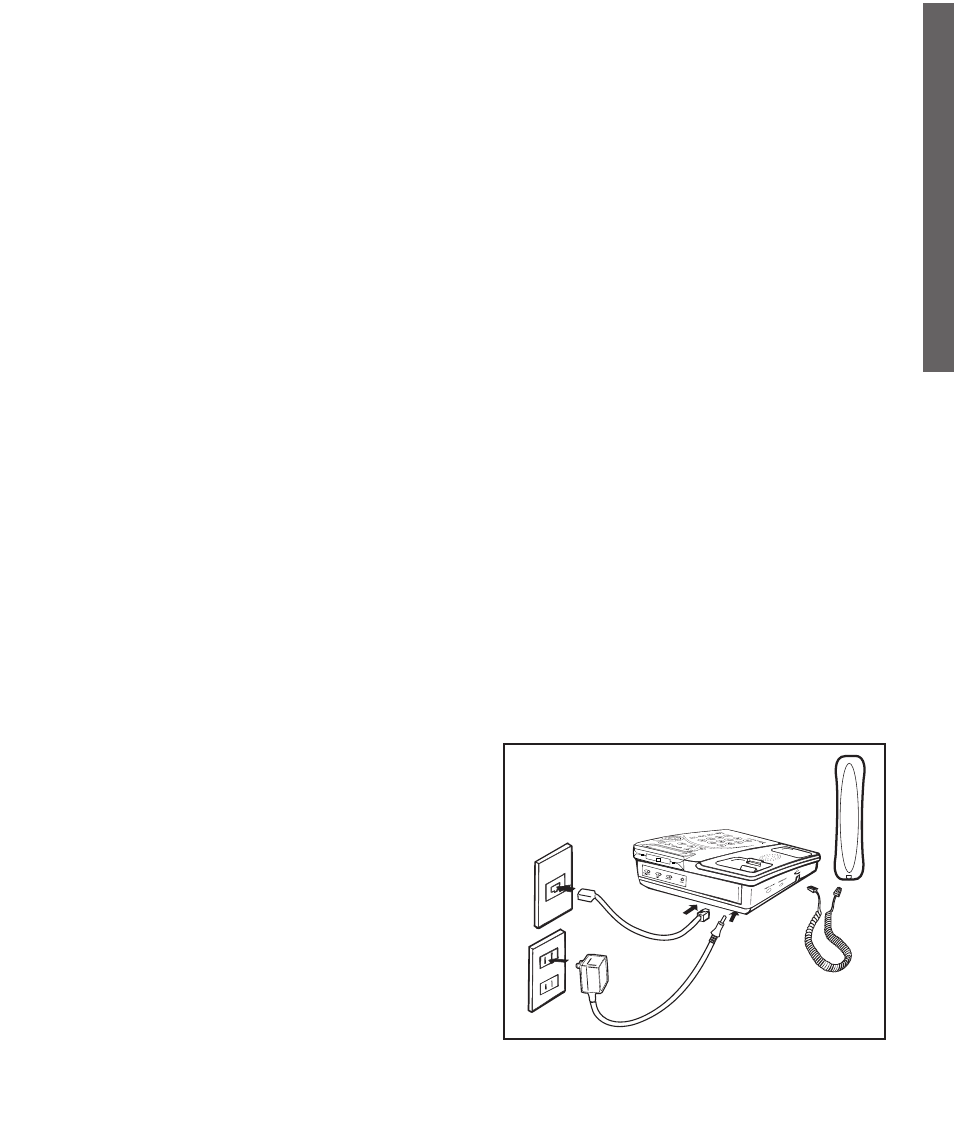

DESK MOUNT

INSTRUCTIONS

Follow these instructions to place the

phone on a desk or table top using the

supplied bracket.
1. Plug one end of the long flat tele-

phone line cord into the jack

marked TEL LINE located on the

back of the telephone. Route the

cord through the narrow groove

and plug the other end into the

telephone wall jack.

2. Insert the plug of the AC adapter

into the jack marked 12 VDC locat-

ed on the back of the base unit.

Route the cord through the narrow

groove and plug the other end into

an electrical outlet.

3. Place the mounting bracket on the

telephone with the wide end of the

mounting bracket towards the top

of the telephone. Insert the

mounting bracket’s lower tabs into

the base’s lower tab slots.

Depress the tabs located at the

top of the mounting bracket and

insert them into the upper tab

slots. Release the tabs to lock

the mounting bracket into place.

4. Plug one end of the modular

coiled handset cord into the hand

set. Plug the other end into the

jack marked HANDSET located on

the lower left side of the telephone.

Place the handset in the cradle.

5. Set the TONE/PULSE switch

located on the back of the base to

correct dialing mode. Please

check with your local telephone

company if uncertain of the type

of service.

6. Adjust the LCD display to desired

viewing angle.

Warning: Use only the power adapter

provided with this telephone. Use of any

other adapter may damage the product

and result in injury.
