Centro G41204 User Manual
Page 4
4
5
PARTS LIST (NATURAL GAS) FOR 85-3007-6 (G41205)

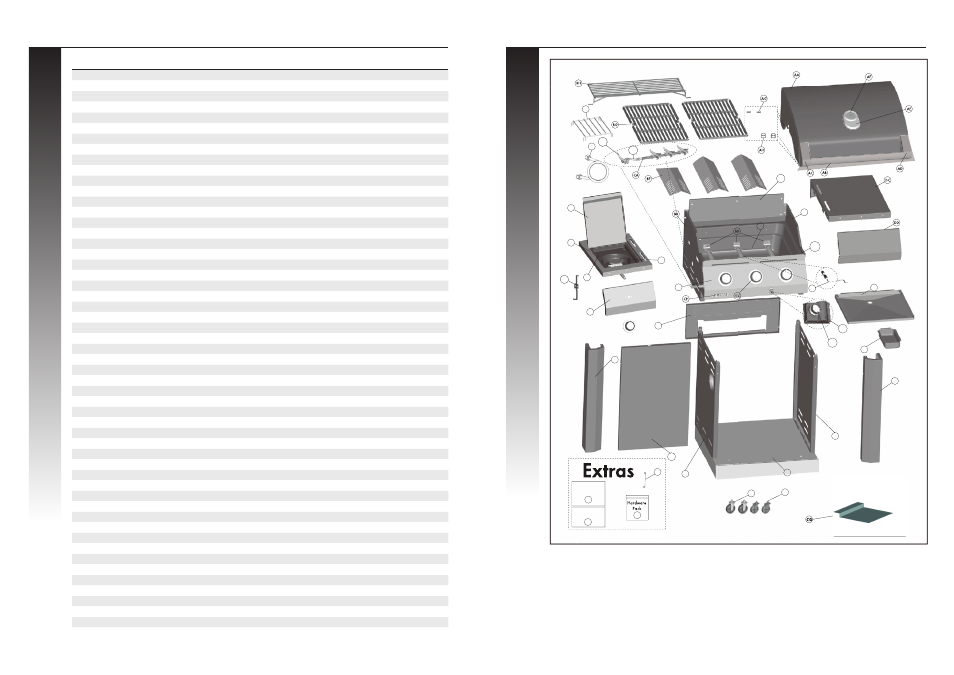

EXPLODED DIAGRAM (NATURAL GAS) FOR 85-3007-6 (G41205)
Item No.
Quantity
Description
Part No.
AA
1
Top Lid
G412-1400-01
AB
1
Lid Handle
G412-0004-01
AC
1
Lid Handle End Cap-Left
G617-0004-01
AD
1
Lid handle End Cap-Right
G617-0005-01
AE
1
Logo Plate
G412-0001-01
AF
1
Thermometer
G412-0003-01
AG
2
Screw for Top Lid
G501-0005-01
AH
2
Lid Bumper
G508-0063-01
BA1
1
Burner Box Weldment
G412-0200-01
BA2
1
Rear Panel, Burner Box
G416-0013-01
BB
1
Upper Side Panel- Left
G412-1600-01
BC
1
Upper Side Panel- Right
G412-1500-01
BD
3
Main Burner
G413-5000-01
BE
2
Carryover Assembly
G413-0004-01
BF
3
Flame Tamer
G413-0036-01
BG
2
Cooking Grate
G412-0028-01
BH
1
Warming Rack
G413-0002-01
BI
1
Upper Back Panel
G412-0026-01
BJ
1
Match Holder
G608-0019-01
CA
1
Manifold Assembly
G412-4400-01
CB
1
Natural Gas Hose
G501-0099-01
CC
3
Control Knobs
G412-4500-01
CD1
1
Electronic Igniter Assembly
G501-0072-02
CD2
1
Electronic Ignition Button
G501-0072-01
CE
1
Electrode Set, Main Burner
G412-0009-01
CF
1
Control Panel
G412-0005-01
CG
1
Heat Shield
G412-0017-01
CH
1
Series Logo
G412-0027-01
CI
1
Grease Tray
G412-1000-01
CJ
1
Grease Cup
G416-0015-01
CK
1
Side Burner Lid
G501-00N1-01
CL
1
Side Burner Drip Pan
G617-0035-01
CM1
1
Side Burner Valve
G512-0037-01
CM2
1
Side Burner Metal Hose
G608-0039-01
CN
1
Side Burner Assembly
G433-1400-01
CO
1
Side Burner Electrode Set
G433-0047-01
CP
1
Side Burner Cooking Grate
G501-0077-01
DA
1
Side Burner Shelf Table- Left
G501-K100-01
DB
1
Side Burner Shelf Fascia- Left
G412-0031-01
DC
1
Side Shelf Table- Right
G501-J100-01
DD
1
Side Shelf Fascia-Right
G412-0019-01
DE
1
Cart Side Panel-Left
G412-1200-01
DF
1
Cart Side Panel, Right
G412-1300-01
DG
2
Pillars
G412-0025-01
DH
1
Front Panel
G412-0018-01
DI
1
Bottom Shelf
G412-0800-02
DJ
2
Wheel with Lock
G401-0061-01
DK
2
Wheel
G607-0048-01
E1
1
Hardware Pack
G412-B001-01
E2
1
Assembly Manual
G412-M004-01
E3
1
Safety & Care Manual
G412-M004-02
BE
BA2
BC
BA1
BI
DG
DE
DH
BJ
Safety & Care
Manual
Assembly
Manual
DK
DJ
DI
DF
CD2
CD1
CI
CJ
DG
CE
CF
Heat shield
CP
CK
CM
CB
DA
CL
DB
E2
E3
E1
CN
CM1
CM2
CO
