Operating instructions R2D225-AG02-10
Translation of the original operating instructions
4.4 Connection screen

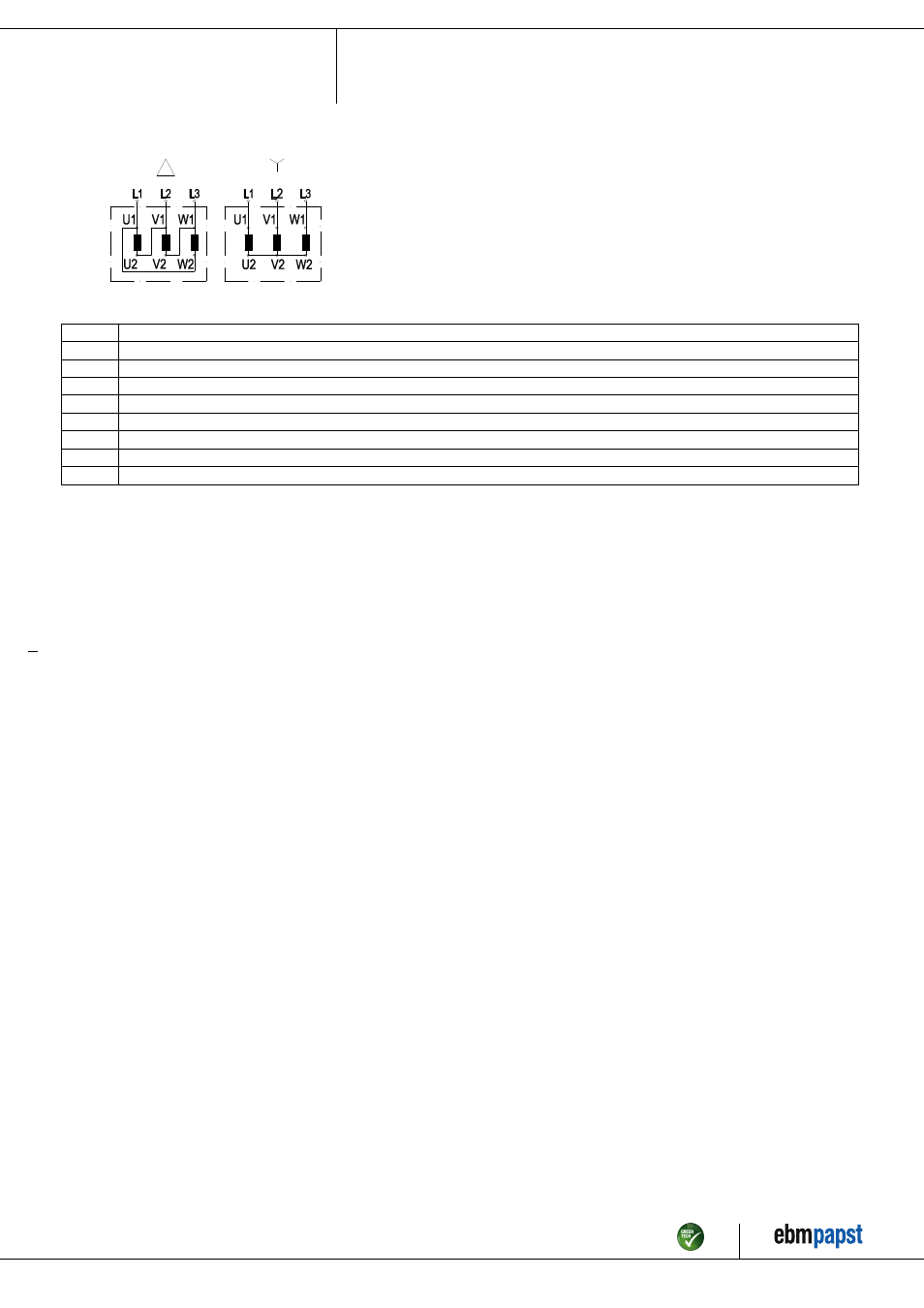

Change direction of rotation by reversing two phases
Three-phase motor
Δ Delta connection
Y Star connection
L1 = U1 = black
L2 = V1 = blue
L3 = W1 = brown
U2 green
V2 white
W2 yellow
