3. TECHNICAL DATA

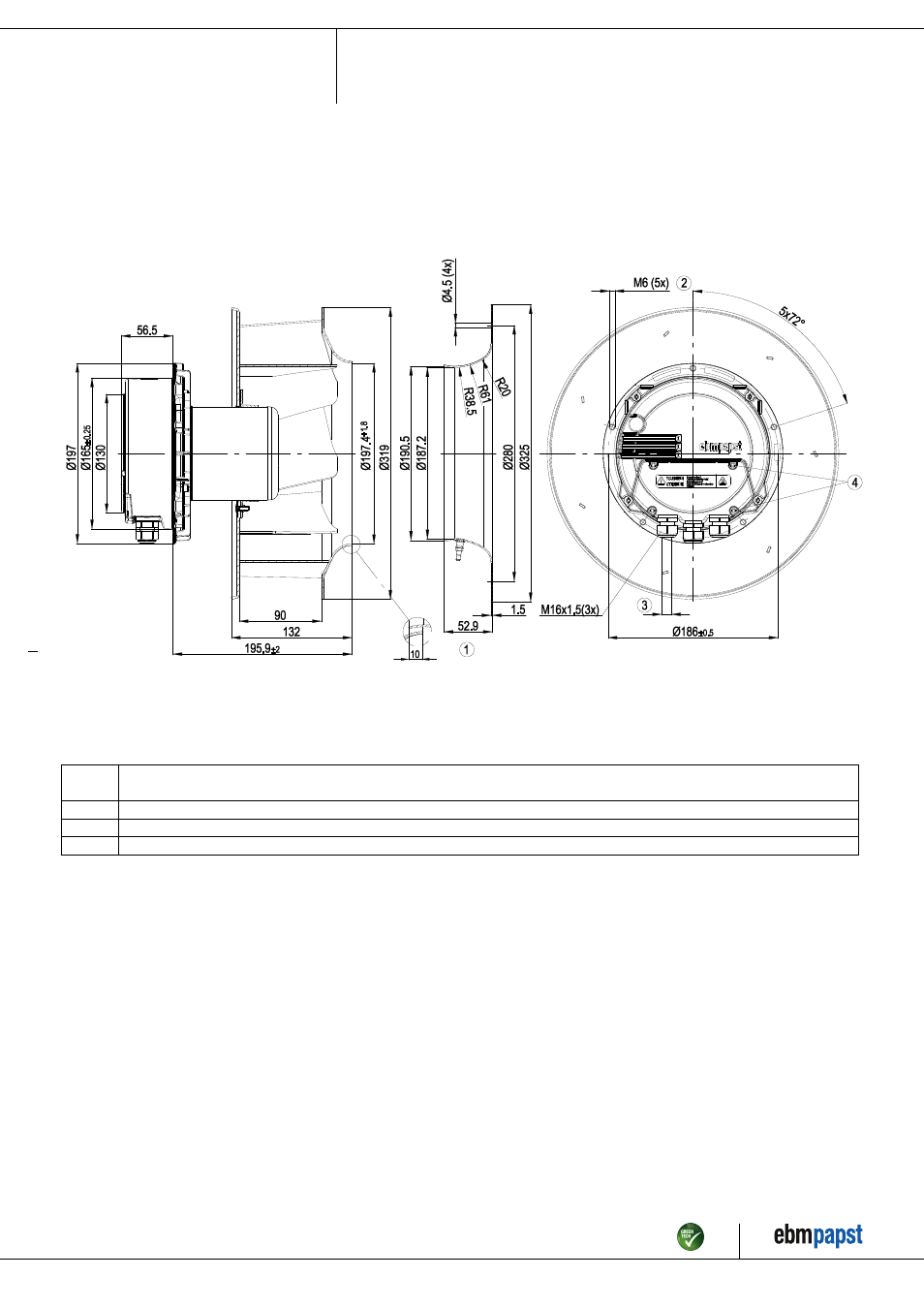

3.1 Product drawing
All measures have the unit mm.
1 Accessory part: Inlet nozzle 28075-2-4013 with a bleeder connection for pressure relief (k-factor:93), not included in the standard scope of
delivery
2 Depth of screw max. 16 mm
3 Cable diameter: min. 4 mm, max. 10 mm, tightening torque: 2.5±0.4 Nm
4 Tightening torque 3.5±0.5 Nm
