Operating instructions D4D225-FH02-01
Translation of the original operating instructions

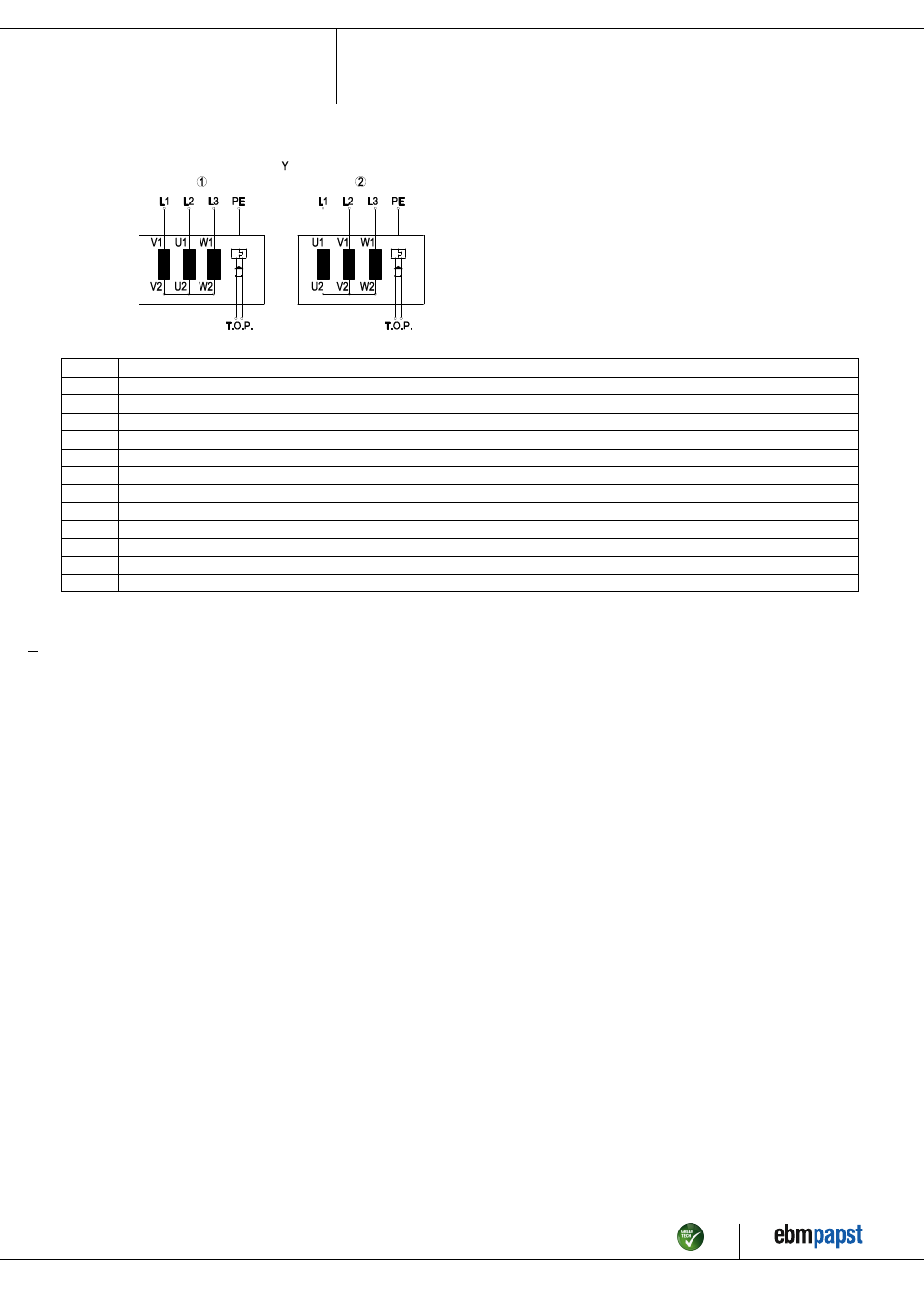

4.4 Connection screen
Y Star connection, three-phase motor
1 Counter-clockwise operation
L1 blue
L2 black
L3 brown
PE green/yellow
TOP grey
2 Clockwise operation
L1 black
L2 blue
L3 brown
PE green/yellow
TOP grey
Item no. 11815-5-9970 · Revision 82546 · Release 2014-05-08 · Page 8 / 10
