Operating instructions
D4D225-CC01-02
Translation of the original operating instructions
3. TECHNICAL DATA

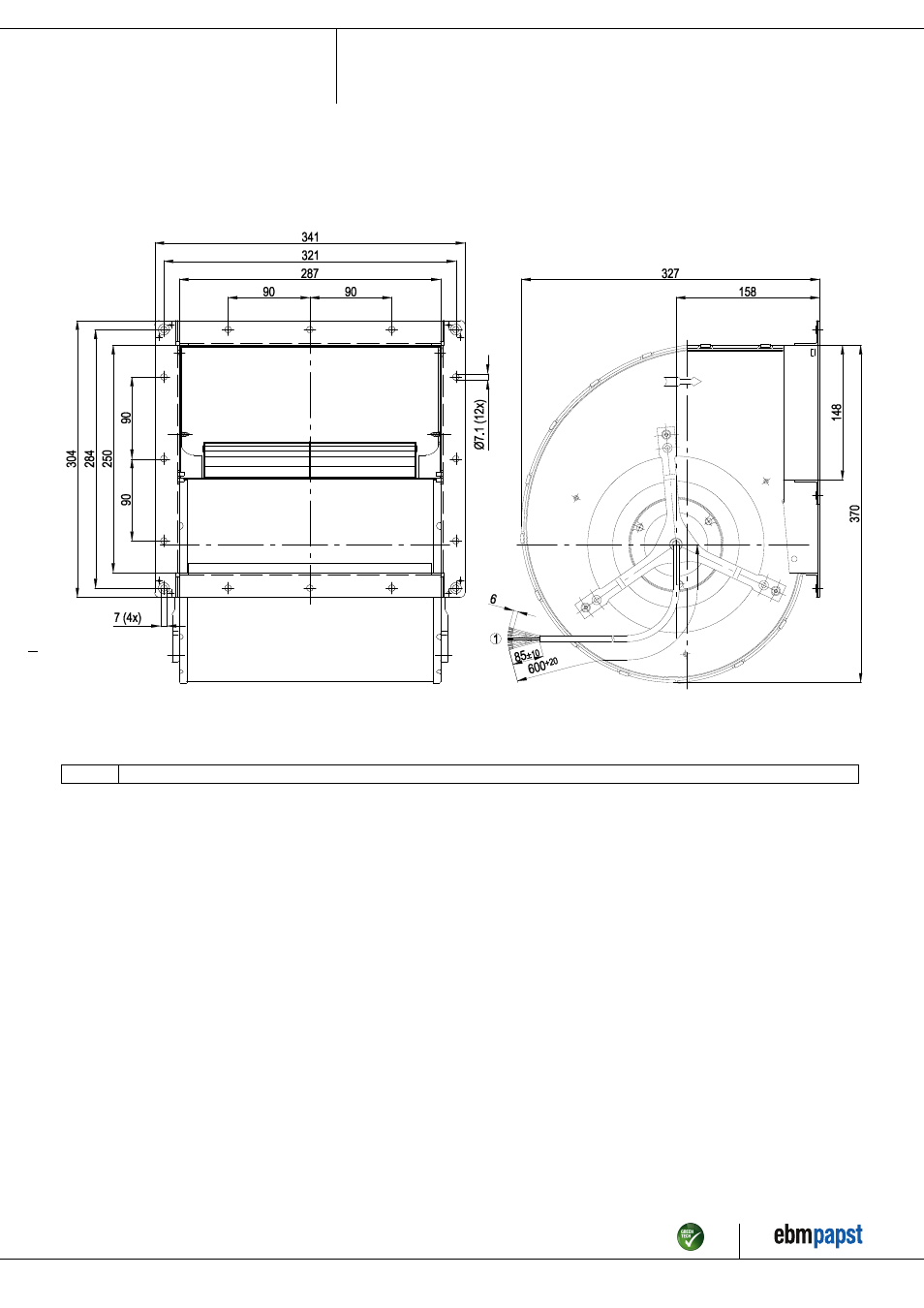

3.1 Product drawing
All measures have the unit mm.
1
Connection line AWG20, 7x brass lead tips crimped
Item no. 10889-5-9970 · Revision 82891 · Release 2014-03-27 · Page 4 / 9
